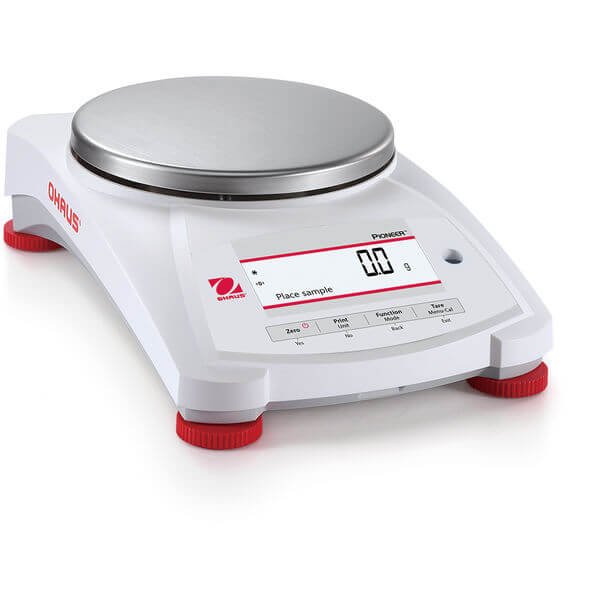

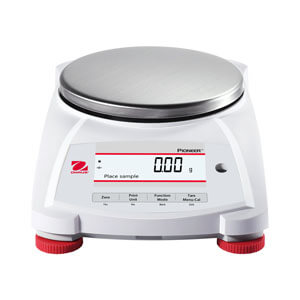

Ohaus - 30429853 - Pioneer™ Precision Balance PX4201/E

Ohaus - 30429853 - Pioneer™ Precision Balance PX4201/E

Ohaus - 30429853 - Pioneer™ Precision Balance PX4201/E

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Affordable Balance to Achieve Reliable Results.

Features

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.


Applications


Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation.


Display


Backlit Liquid Crystal Display (LCD), Second line display for additional information or guidance (dot matrix).


Operation


AC adapter (included)


Communication


RS232 and USB device (included), GLP/GMP data output with real-time clock


Construction


Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover.


Design Features


User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages.

Specifications

Overview

  • Nominal Height:
    3.86" (9.8 cm)
  • Nominal Width:
    8.23" (20.9 cm)
  • Nominal Length:
    12.64" (32.11 cm)

Technical Data

  • Maximum Capacity:
    4,200 g
  • Readability:
    0.1 g
  • Pan Size:
    180 mm
  • Auxiliary Display Model:
    Available as an Accessory
  • Built-in Lonizer:
    No
  • Communication:
    USB, RS232
  • Display:
    2-Line LCD with Backlight
  • In-Use Cover:
    Included
  • Legal for Trade:
    No
  • Linearity ±:
    0.2 g
  • Minimum Weight (USP, 0.1%, Typical):
    200 g
  • Net Weight:
    7.7 lb (3.5 kg)
  • Pan Construction:
    Stainless Steel
  • Power:
    AC Adapter (Included)
  • Repeatability, Typical:
    0.1 g
  • Stabilization Time:
    1 s
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Singapore Tael, Pennyweight, Ounce Troy, Kilogram, Grain, Tical, Custom, Milligram, Newton, Momme, Taiwan Tael, Baht, Gram, Hong Kong Tael, Pound, Tola, Mesghal, Ounce, Carat
  • Working Environment:
    operability guaranteed between 41°F and 104°F, 50°F - 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C, 10°C - 30°C, 80%RH, non-condensing)
