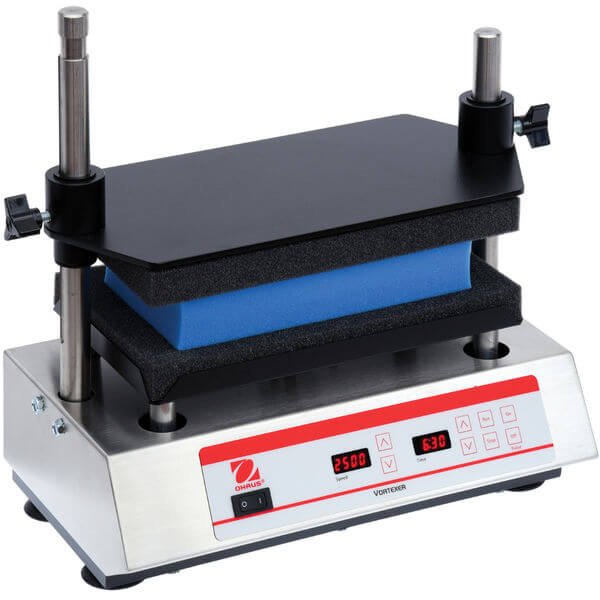

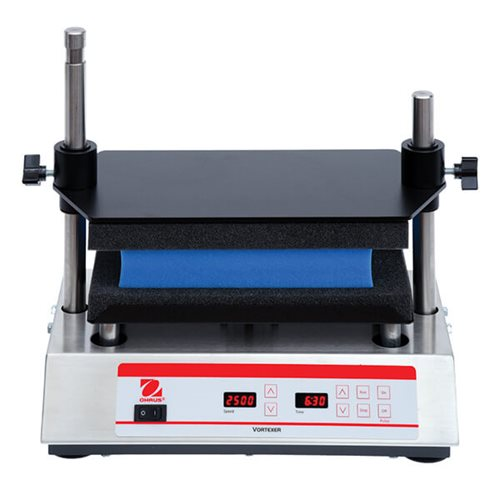

Ohaus - 30392171 - Multi-Tube Vortex Mixer, VXMTDG

Features

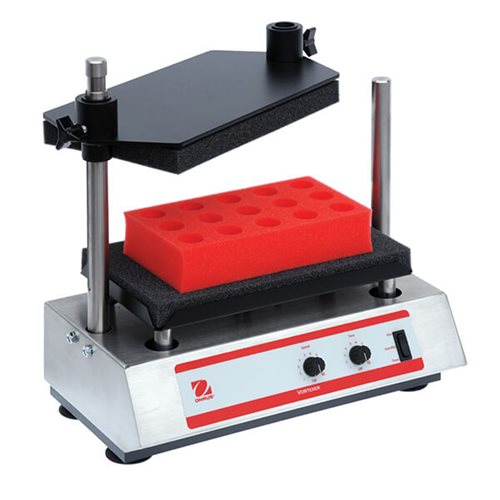

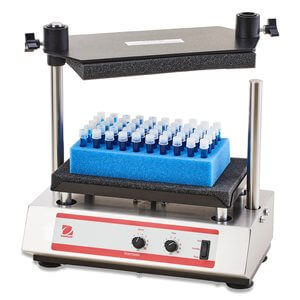

OHAUS Multi-Tube Vorteers are ideal for hands-free, high-throughput sample processing. Interchangeable foam racks for vorteing tubes from 10 to 29 mm in diameter are available. Strong suction cup feet reduce motion and prevent sliding on the work surface for safe operation in the lab. Digital models offer eact speed control for applications that demand repeatable results. Non-digital variable speed models are an economical alternative.

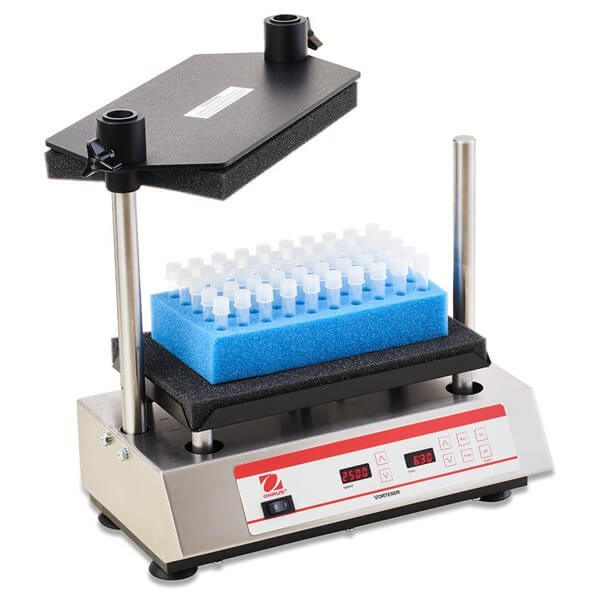

Easily process up to 50 samples at one time - the Multi-Tube Vortex Mixer can be customized for your application with six different tube racks and a post- extension kit. The Multi-Tube Vortex Mixers feature either an easy to clean one-piece stainless steel housing that is perfect for clean rooms or a painted steel version for a more economical option. For challenging samples, enhance vortex action & create a more vigorous mix with the programmable pulse mode on the digital models. Adjust the pulse-on/pulse-off time interval to customize operation.
Applications
Suspensions, Genotyping, High Throughput DNA and RNA Testing in Clinical Labs
Display

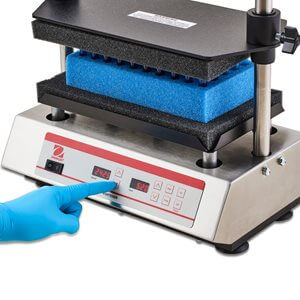

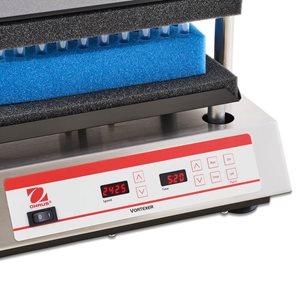

Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models).
Operation
Detachable 3-wire cord and plug (included)
Construction
Stainless steel foam rack for (50) 12 mm diameter tubes (included), interchangeable foam racks for vorteing tubes from 10 - 29 mm in diameter
Specifications
Overview
-
Nominal Height:16" (40.64 cm)
-
Nominal Width:15.1" (38.35 cm)
-
Nominal Length:9.5" (24.13 cm)
Technical Data
-
Control:Digital
-
Duty Rating:Continuous
-
Orbit:0.1 in (3.6 mm)
-
Speed Range:500 rpm - 2500 rpm
-
Capacity:4.5 kg
-
Timer:1 second - 9999 minutes
-
Net Weight:44.8 lb (20.3 kg)
-
Power:120V, 5A, 50/60Hz
-
Power Consumption:100 W
-
Safety Certification:TUV
-
Tray Size:7.25 in x 12.25 in (18.4 cm x 31.1 cm) (LxW)
-
Working Environment:39°F - 104°F, 20% - 85%RH, non-condensing (4°C - 40°C, 20% - 85%RH, non-condensing)
