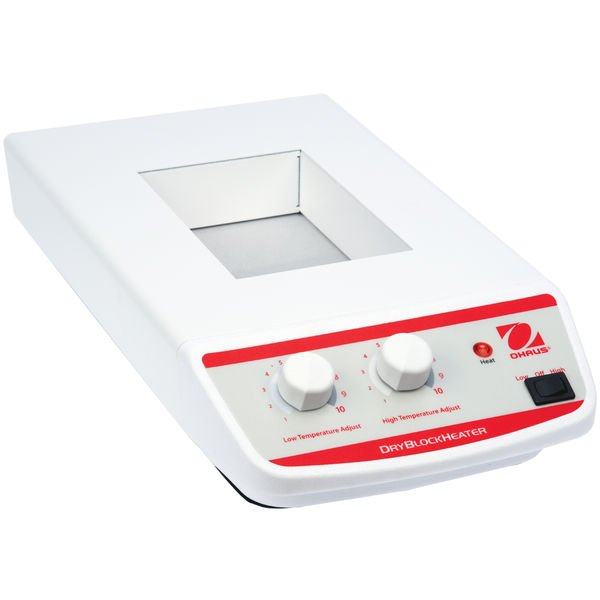

Ohaus - 30392052 - Dry Block Heater, 2 Block, HB2AL, US
Features
Versatile Dry Block Heaters are ideal for applications that require temperature stability. All units hold one optional interchangeable modular block with over 40 choices. Blocks are easy to use, no tools required. Close tube-to-block contact enables maximum heat retention, resulting in efficient heating. Digital models offer exceptional temperature uniformity and stability for repeatable results, while non-digital models are an economical choice.
Applications
Incubation & Activation of Cultures, Enzyme Reactions, Immunoassays, Melting/Boiling Points, Isothermal Incubations, Nucleic Acid Denaturation.
Display
LED display (digital models) and dual-adjustment knobs with dial markings (analog models).
Operation
Detachable 3-wire cord and plug (included), analog models require an external thermometer or temperature device for temperature setpoint.
Construction
Painted steel housing, support rod holder with locking knob.
Design Features
Touchpad control and audible alarm (digital models).
Specifications
Overview
-
Nominal Height:3.5" (8.89 cm)
-
Nominal Width:8" (20.32 cm)
-
Nominal Length:15.4" (39.12 cm)
Technical Data
-
Control:Analog
-
Temp. Range:High 75°C - 150°C, Low Ambient + 5°C - 100°C
-
Stability:± 1.5°C
-
Uniformity Within the Block:± 0.1°C at 37°C
-
Timer:Not Applicable
-
Heat Up Time:16 min
-
Power:120V, 0.92A, 50/60Hz
-
Power Consumption:210 W
-
Safety Certification:TUV
-
Uniformity Across Similar Blocks:± 0.1°C at 37°C
-
Working Environment:64°F - 91°F, 20% - 80%RH, non-condensing (18°C - 33°C, 20% - 80%RH, non-condensing)
