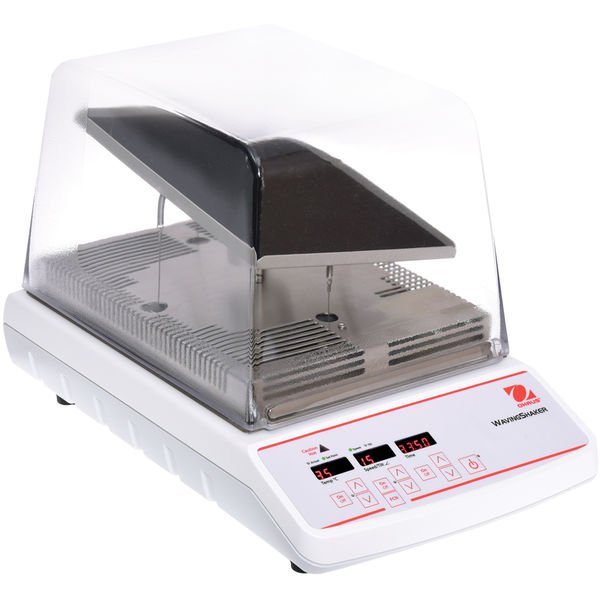

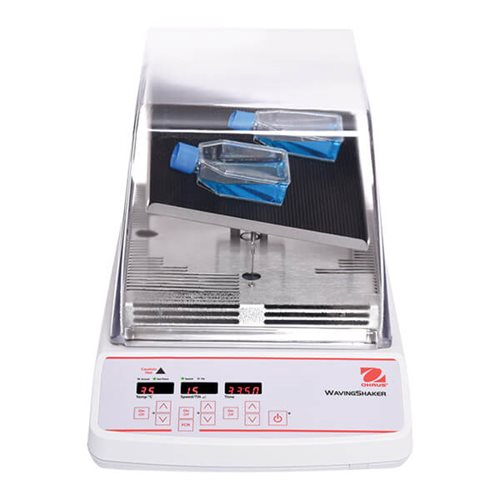

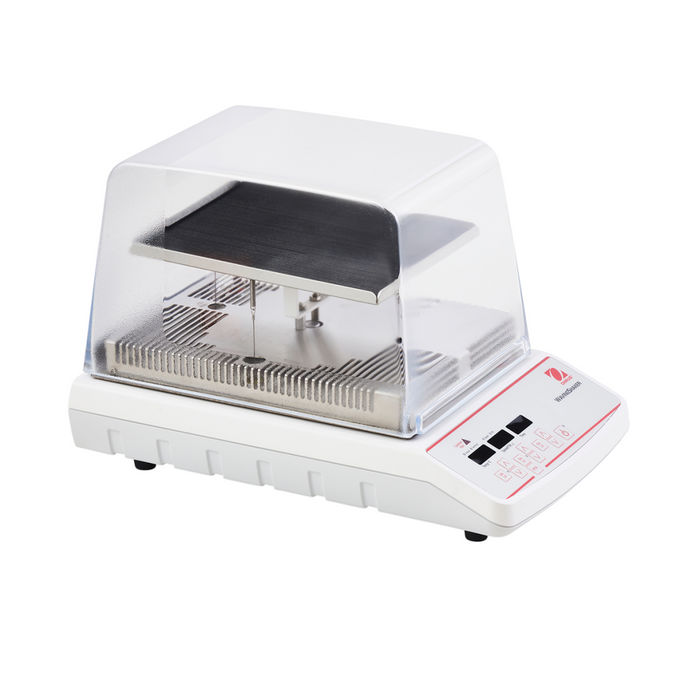

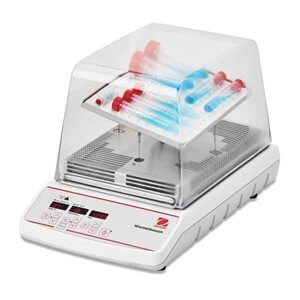

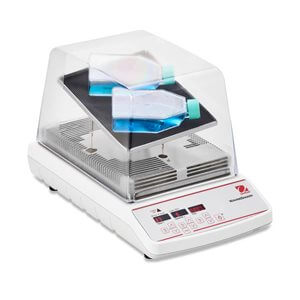

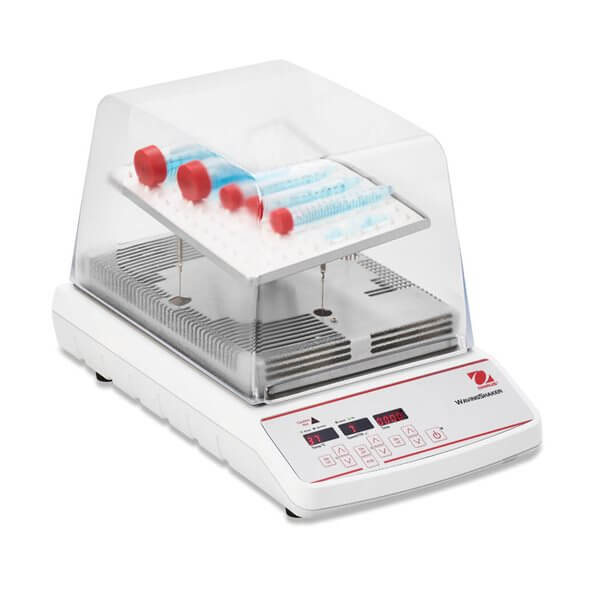

Ohaus - 30391987 - Incubating Shaker Waving, ISWV02HDG
Features

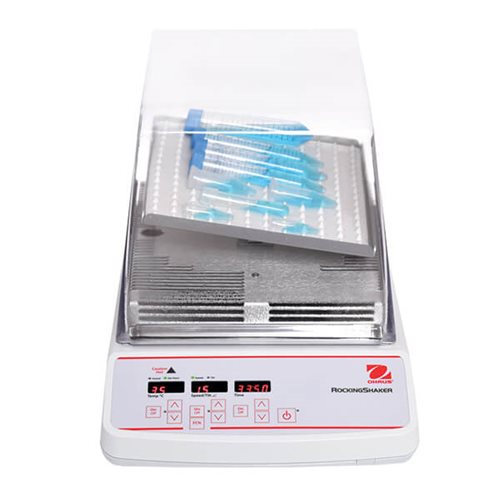

OHAUS Incubating Rocking and Waving Shakers are innovatively designed to incubate samples providing accurate and repeatable results. Rocking shakers provide a controlled see-saw like motion, while waving shakers offer a smooth, low-foaming three-dimensional wave motion. All models feature independent displays with intuitive touchpad controls. Both models include safety features that protect both the user and samples.
Electronic control allows simple tilt angle, speed and temperature adjustments while the unit is still running to achieve optimal mixing. Achieve reproducible results you can trust. Precisely adjust the tilt angle in 1° increments, vary the speed by 1 rpm and set temperature in 1°C increments with intuitive touchpad controls. Innovative speed ramping feature slowly increases speed to desired setpoint to avoid splashing. Smooth rocking or waving motion is maintained with unique, state-of-the-art motor and electronics.
Applications
Hybridizations, Cell Cultures, Blotting Techniques, Staining and Destaining Gels
Display

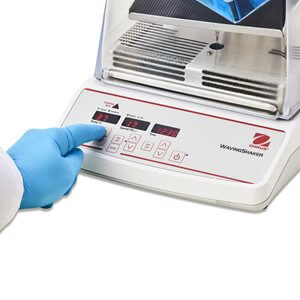

Easy-to-read, independent LED displays for temperature, speed/tilt angle and time allow the operator to view all settings simultaneously.
Operation
Detachable 3-wire cord and plug (included)
Construction
Cast aluminum housing with polycarbonate lid
Design Features
Spill-resistant design, overload protection with audio/visual alarm on digital models and audible alarm on analog models, caution hot indicator.
Specifications
Overview
-
Nominal Height:10.5" (26.67 cm)
-
Nominal Width:11" (27.94 cm)
-
Nominal Length:17" (43.18 cm)
-
Internal Height:3.4" (8.64 cm)
-
Internal Width:7.75" (19.69 cm)
-
Internal Length:10.75" (27.31 cm)
Technical Data
-
Motion:Waving, 0 - 20°
-
Capacity:2.3 kg
-
Temp. Range:Ambient +5°C - 65°C
-
Speed Range:1 rpm - 30 rpm
-
Tray Size:9.25 in x 7.25 in (23.5 cm x 18.4 cm) (LxW)
-
Control:Digital
-
Drive System:Stepper Motor
-
Net Weight:13.7 lb (6.2 kg)
-
Power:120V, 5A, 50/60Hz
-
Power Consumption:450 W
-
Safety Certification:TUV
-
Speed Accuracy:±1 rpm
-
Tilt Angle:0 - 20°
-
Timer:1 second - 160 hours
-
Tray Construction:Aluminum
-
Uniformity:± 0.5°C at 37°C
-
Working Environment:41°F - 104°F, 80% RH, Non-condensing (5°C - 40°C, 80% RH, Non-condensing)
