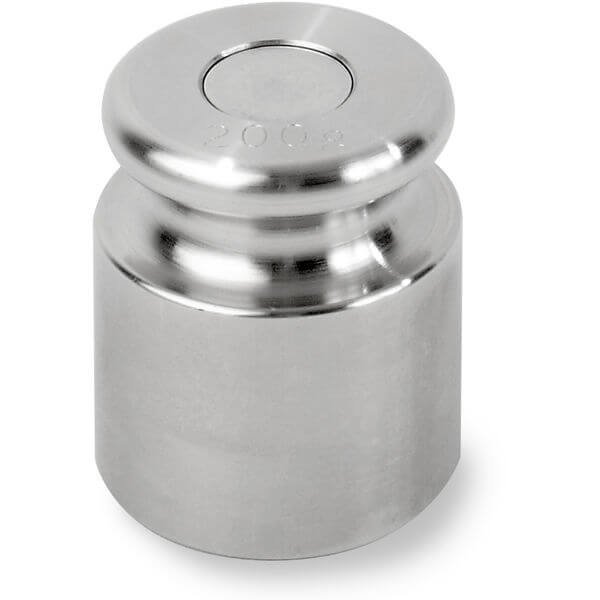

Ohaus - 30391022 - ASTM Class 7 Weight 2P ECON CYL 200g CL7 Non-Accrd TR
Features
ASTM Scale Calibration Weight Sets
ASTM Scale Calibration Weight Sets are constructed of durable stainless steel and aluminum. Surfaces are satin finish and meet or exceed ANSI/ASTM E617 tolerance and design restrictions. Troemner ASTM Scale Calibration Weights Sets are supplied in, and protected by, plastic cases with a locking latch or a plastic weight block with a compartment for each weight. Traceable certificate option includes statement of traceability to NIST and is ideal for applications requiring traceability but do not need to meet any stringent regulatory requirements.
Applications
Suggested markets for economical calibration weights and weights sets include, but are not limited to, educational markets and are appropriate for weighing applications such as force measuring.
Construction
Weights 50g through 10g - two-piece Weights 5g through 10mg - one-piece
Design Features
Weights ≥1 g are cylindrical. Weights ≤500mg are flat with one end turned up
Specifications
Overview
-
Nominal Height:1.52" (3.86 cm)
Technical Data
-
Calibration Certificate:Traceable Certificate
-
ASTM Class:7
-
Weight Value:200 g
-
Protective Case:Not Included
-
Construction:Two-piece
-
Density at 20°C:7.85 g/cm3
-
Design:Cylindrical
-
Dimensions:1.52 in x 1.23 in (3.868 cm x 3.122 cm) (HxØ)
-
Weight Tolerance:160 mg
-
Wgt Origin (USA):USA
