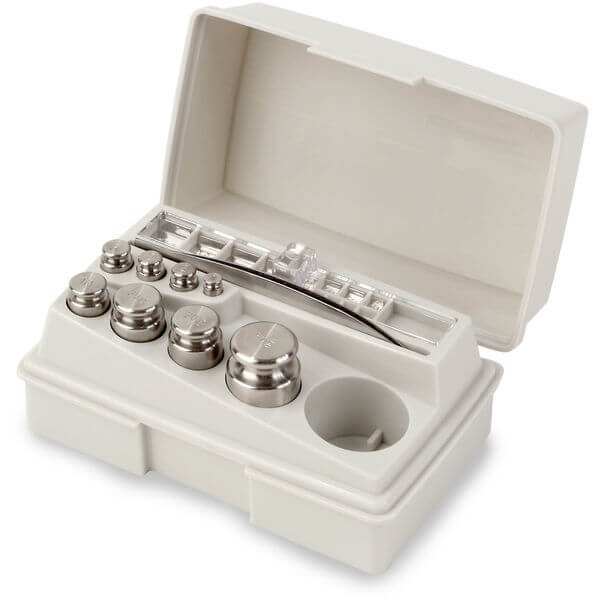

Ohaus - 30390995 - ASTM Class 7 Weight Set ECON 50g-1mg CL7 Non-Accrd TR
Features
ASTM Scale Calibration Weight Sets
ASTM Scale Calibration Weight Sets are constructed of durable stainless steel and aluminum. Surfaces are satin finish and meet or exceed ANSI/ASTM E617 tolerance and design restrictions. Troemner ASTM Scale Calibration Weights Sets are supplied in, and protected by, plastic cases with a locking latch or a plastic weight block with a compartment for each weight. Traceable certificate option includes statement of traceability to NIST and is ideal for applications requiring traceability but do not need to meet any stringent regulatory requirements.
Applications
Suggested markets for economical calibration weights and weights sets include, but are not limited to, educational markets and are appropriate for weighing applications such as force measuring.
Construction
Weights 50g through 10g - two-piece Weights 5g through 10mg - one-piece
Design Features
Weights ≥1 g are cylindrical. Weights ≤500mg are flat with one end turned up
Specifications
Overview
-
Internal Height:2.75" (6.99 cm)
-
Internal Width:4.41" (11.2 cm)
-
Internal Length:0.83" (2.11 cm)
Technical Data
-
Calibration Certificate:Traceable Certificate
-
ASTM Class:7
-
Weight Set Range:50 g - 1 mg
-
Set Capacity:111.11 g
-
Protective Case:Included
-
Construction:One-piece
-
Density at 20°C:5 g and below are 2.70 g/cm3, Above 5 g are 7.85 g/cm3
-
Design:Weights 1g to 50g are cylindrical, Weights 1g to 50g are cylindrical, Weights 500mg and below are flat, with one side turned up
-
Set Contents:(2) 2 g, (2) 20 mg, 500 mg, 10 g, (2) 20 g, 100 mg, 10 mg, (2) 200 mg, 1 g, 50 g, 5 g, 5 mg, (2) 2 mg, 50 mg, 1 mg
-
Set Total Pieces:20
-
Wgt Origin (USA):USA
