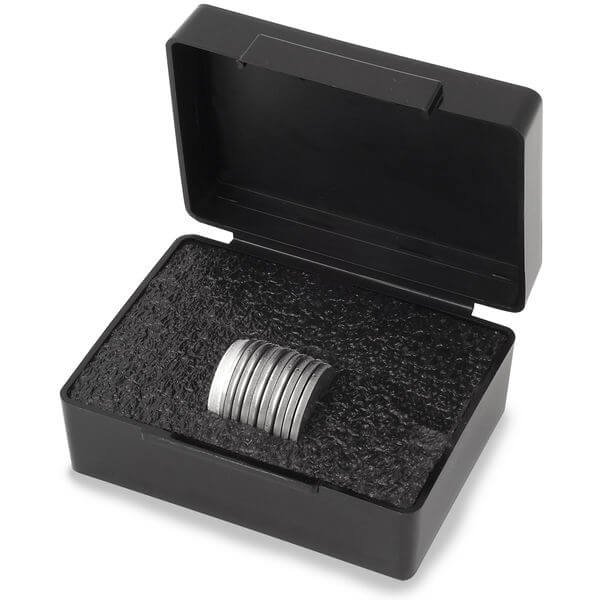

Ohaus - 30390730 - Slotted Weight Set ECONSLT 500-1g CL7 No Cert TR
Features
Slotted Weights and Slotted Weight Sets
ASTM Class 5 - 7 Slotted Weights, Sets & Hangers are constructed of stainless steel or aluminum and all surfaces are satin finish and meet or exceed ANSI/ASTM E617 tolerance and design restrictions. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements. Slotted Stainless Steel Weights are available in interlocking or flat styles. Slotted Cast Iron weights are designed for secure stacking.
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. Class 5-7 weights may be used to test most accuracy Class III scales and Class IIIL or IIII scales. Appropriate for weighing applications such as force measuring.
Construction
One-piece
Design Features
Slotted weights feature an interlocking design to help secure a stack of slotted weights onto hangers.
Specifications
Overview
-
Internal Height:3.67" (9.32 cm)
-
Internal Width:5.06" (12.85 cm)
-
Internal Length:1.44" (3.66 cm)
Technical Data
-
ASTM Class:7
-
Weight Set Range:500 g - 1 g
-
Weight Material:Weights above 5g are 303 Stainless Steel, Weights 5g and below are 3003-H14 Aluminum
-
Protective Case:Included
-
Construction:One-piece
-
Density at 20°C:5 g and below are 2.70 g/cm3, Above 5 g are 7.85 g/cm3
-
Design:Slotted weights
-
Set Capacity:1.11 kg
-
Set Contents:10 g, (2) 20 g, 100 g, (2) 2 g, (2) 200 g, 1 g, 50 g, 5 g, 500 g
-
Set Total Pieces:12
-
Wgt Origin (USA):USA
