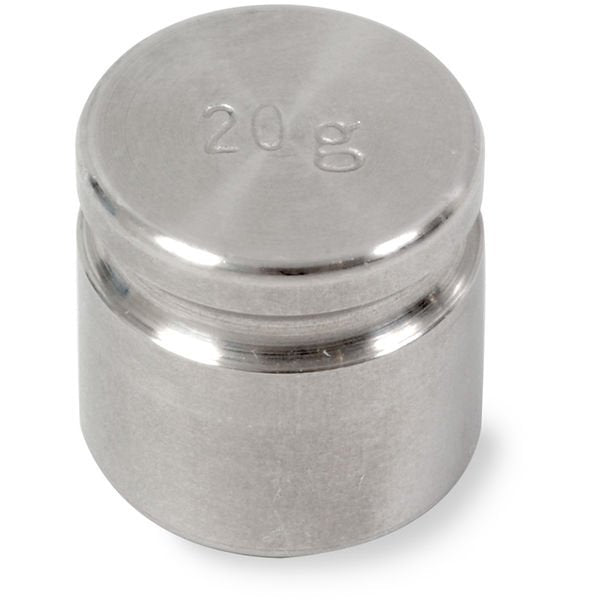

Ohaus - 30390635 - ASTM Individual Scale Calibration Weight 1P TEST CYL 20g CLF Non-Accrd TR
Features
ASTM Individual Scale Calibration Weights
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. NIST F weights may be used to test most accuracy Class III scales and Class IIIL or IIII scales. Appropriate for weighing applications such as force measuring.
Construction
Two-Piece
Design Features
Cast iron scale calibration weights ≤50kg, ≤100lb, are grip handle and ≥100kg, ≥200lb, are block design for lifting with hook.
Specifications
Overview
-
Nominal Height:0.68" (1.73 cm)
Technical Data
-
Calibration Certificate:Traceable Certificate
-
NIST Class:F
-
Weight Value:20 g
-
Design:Cylindrical
-
Protective Case:Weight is not supplied in case, protective case is available at an additional cost
-
Construction:One-piece
-
Density at 20°C:7.85 g/cm3
-
Dimensions:0.68 in x 0.58 in (1.737 cm x 1.49 cm) (HxØ)
-
Weight Material:303 Stainless Steel
-
Weight Tolerance:4 mg
-
Wgt Origin (USA):USA
