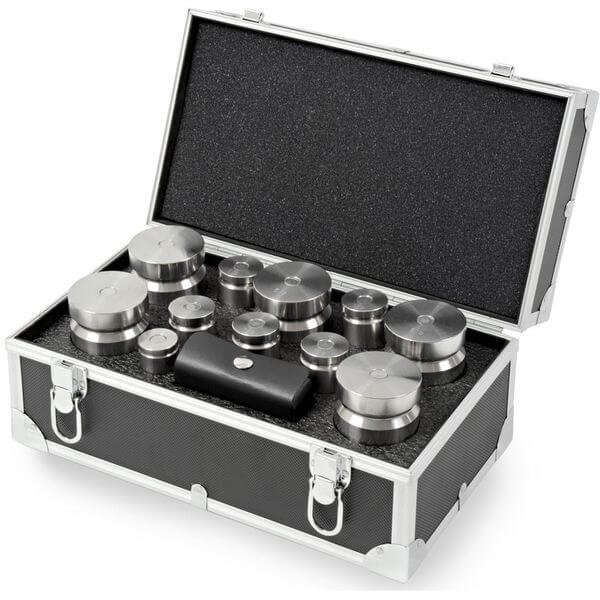

Ohaus - 30390489 - ASTM Scale Calibration Weight Set TEST 5lb-1GN CL6 Accrd TR
Features
ASTM Scale Calibration Weight Sets
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. Class 5-7 weights may be used to test Class III, Class IIIL or IIII scales and other low precision scales not marked with a class designation.
Construction
Weights 10 lb through 8 oz - two-piece Weights 4 oz through 0.05 oz - one-piece construction
Design Features
Stainless steel test weights ≥1g, ≥0.01lb, and all ounce are cylindrical. Weights ≤500mg are aluminum and flat with one end turned up for easy handling. Weights ≤0.005lb, are flat dish weights.
Specifications
Overview
-
Internal Height:7.25" (18.42 cm)
-
Internal Width:13.25" (33.66 cm)
-
Internal Length:6" (15.24 cm)
Technical Data
-
Calibration Certificate:ISO/IEC 17025 Accredited Certificate
-
NIST Class:F
-
Weight Set Range:5 lb - 1 GN
-
Set Capacity:21.01 lb
-
Set Total Pieces:26
-
Protective Case:Included
-
Construction:5 lb to 20 GN are two-piece, 8 oz is two-piece, 10 GN to 1 GN are one-piece, 4 oz to 1/32 oz are one-piece
-
Density at 20°C:7.85 g/cm3
-
Set Contents:(5) 1 lb, 1 GN, (2) 2 GN, (2) 10 GN, 8 oz, (2) 5 GN, 1 oz, 2 oz, 4 oz, (2) 1/32 oz, 1/16 oz, (3) 5 lb, 1/2 oz, 1/8 oz, 1/4 oz, 20 GN
-
Weight Material:5 GN to 1 GN are Aluminum, 5 lb to 10 GN are 303 Stainless Steel
-
Wgt Origin (USA):USA
