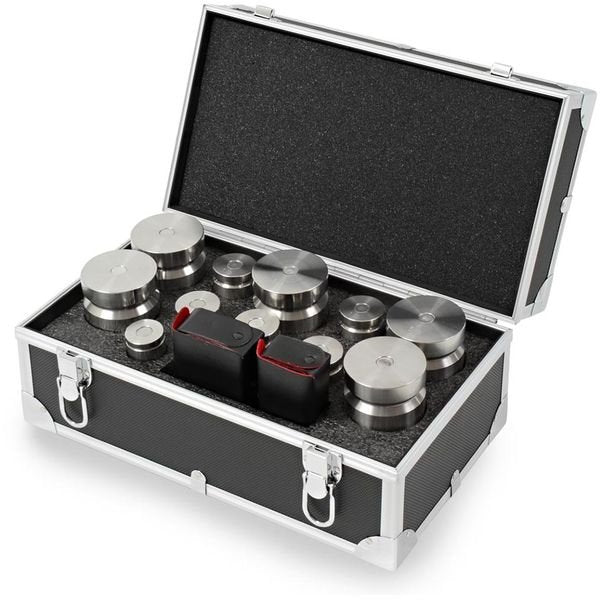

Ohaus - 30390373 - ASTM Scale Calibration Weight Set TESTC5lb-1/32oz CL6 NoCert TR
Features
ASTM Scale Calibration Weight Sets
ASTM Class 5 and 6 sets offer high accuracy with tight tolerances and uncertainties of less than 1/4 of the tolerance. Weight surfaces meet or exceed ASTM tolerance and design restrictions. Scale calibration weight sets are manufactured from durable stainless steel and are provided in a rugged protective case to ensure weights are held securely, kept clean, and dust free. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements.
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. Class 5-7 weights may be used to test Class III, Class IIIL or IIII scales and other low precision scales not marked with a class designation.
Construction
Weights 10 lb through 8 oz - two-piece Weights 4 oz through 0.05 oz - one-piece construction.
Design Features
Stainless steel test weights ≥1g, ≥0.01lb, and all ounce are cylindrical. Weights ≤500mg are aluminum and flat with one end turned up for easy handling. Weights ≤0.005lb, are flat dish weights.
Specifications
Overview
-
Internal Height:7.25" (18.42 cm)
-
Internal Width:13.25" (33.66 cm)
-
Internal Length:6" (15.24 cm)
Technical Data
-
Calibration Certificate:No Certificate
-
NIST Class:F
-
Weight Set Range:5 lb - 0.001 lb
-
Set Capacity:31.61 lb
-
Set Total Pieces:31
-
Protective Case:Included
-
Construction:5 lb to 8 oz are two-piece, 4 oz to 0.001 lb are one-piece
-
Density at 20°C:5 lb to 0.01 lb are 7.85 g/cm3, 0.005 lb to 0.001 lb are 2.70 g/cm3
-
Set Contents:(2) 0.02 lb, (5) 1 lb, 0.005 lb, 0.1 lb, 8 oz, 1 oz, (5) 5 lb, 2 oz, 4 oz, 0.01 lb, (2) 0.2 lb, 0.05 lb, (2) 1/32 oz, 1/16 oz, 0.001 lb, (2) 0.002 lb, 1/2 oz, 1/8 oz, 1/4 oz
-
Weight Material:Weights 5 lb through 0.01 lb are 303 Stainless Steel, weights 8 oz through 1/32 oz are 303 Stainlesss Steel, weights 0.005 lb through 0.001 lb are 3003-H14 Aluminum
-
Wgt Origin (USA):USA
