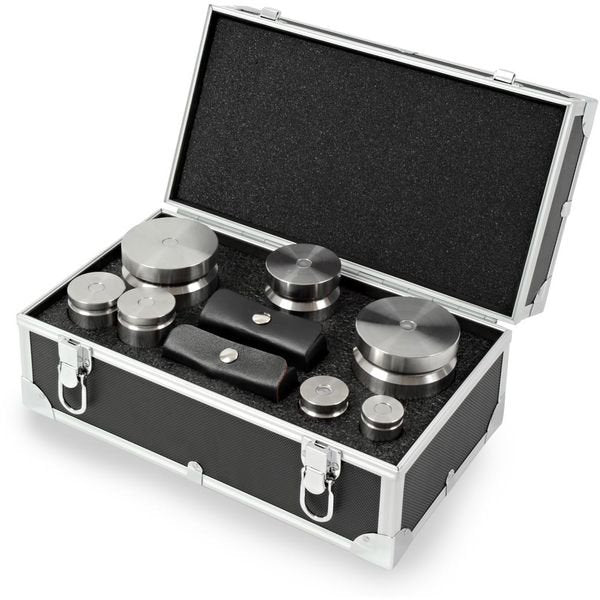

Ohaus - 30390370 - ASTM Scale Calibration Weight Set TESTD10lb-0.05oz CL6 NoCrt TR
Features
ASTM Scale Calibration Weight Sets
ASTM Class 5 and 6 sets offer high accuracy with tight tolerances and uncertainties of less than 1/4 of the tolerance. Weight surfaces meet or exceed ASTM tolerance and design restrictions. Scale calibration weight sets are manufactured from durable stainless steel and are provided in a rugged protective case to ensure weights are held securely, kept clean, and dust free. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements.
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. Class 5-7 weights may be used to test Class III, Class IIIL or IIII scales and other low precision scales not marked with a class designation.
Construction
Weights 10 lb through 8 oz - two-piece Weights 4 oz through 0.05 oz - one-piece construction.
Design Features
Stainless steel test weights ≥1g, ≥0.01lb, and all ounce are cylindrical. Weights ≤500mg are aluminum and flat with one end turned up for easy handling. Weights ≤0.005lb, are flat dish weights.
Specifications
Overview
-
Internal Height:7.25" (18.42 cm)
-
Internal Width:13.25" (33.66 cm)
-
Internal Length:6" (15.24 cm)
Technical Data
-
Calibration Certificate:No Certificate
-
NIST Class:F
-
Weight Set Range:10 lb - 0.05 oz
-
Set Capacity:31 lb
-
Set Total Pieces:15
-
Protective Case:Included
-
Construction:10 lb to 8 oz are two-piece, 4 oz to 0.05 oz are one-piece
-
Density at 20°C:7.85 g/cm3
-
Set Contents:(2) 2 lb, 1 lb, (2) 10 lb, 5 lb, 8 oz, 1 oz, 0.5 oz, 2 oz, (2) 0.2 oz, 0.05 oz, 0.1 oz, 4 oz
-
Weight Material:303 Stainless Steel
-
Wgt Origin (USA):USA
