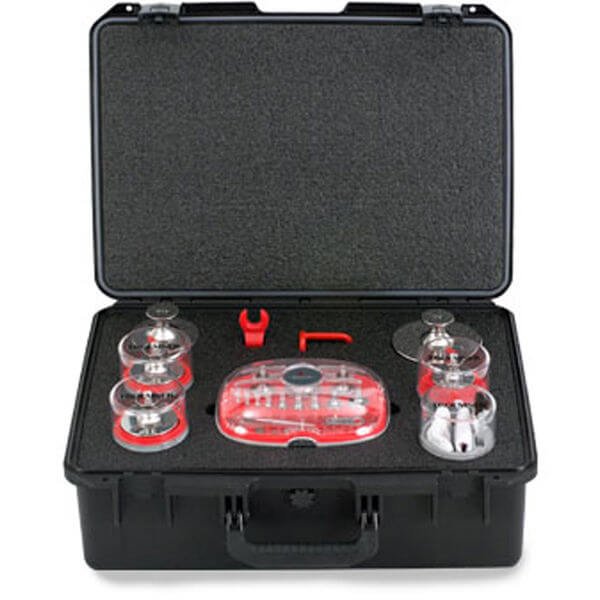

Ohaus - 30390129 - ASTM Reference Calibration Weight Set 25kg-1mg UC Non-Accrd TR
Features
ASTM Reference Calibration Weight Sets
Troemner UltraClass offers high accuracy with tight tolerances and uncertainties of less than 1/4 of the tolerance. Weight surfaces meet or exceed ASTM and have a highly polished finish. Available in high grade stainless steels including Troemner Alloy 8 which possesses closely controlled density, extremely low magnetic properties, good stability, and resistance to corrosion. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements.
Applications
Use as a primary reference for calibrating other mass standards and use for traceability between national mass standards and ASTM Class 1 weights and lower. This class is appropriate for calibrating high-precision balances with readability as low as 0.01 mg.
Construction
1 g and above - two-piece 500 mg and below - one-piece
Design Features
Weights 50 kg through 1 g are cylindrical with handling knob. Weights 500 mg and below are flat with one end turned up for easy handling.
Specifications
Overview
-
Internal Height:19.7" (50.04 cm)
-
Internal Width:24.6" (62.48 cm)
-
Internal Length:11.7" (29.72 cm)
Technical Data
-
Calibration Certificate:Traceable Certificate
-
ASTM Class:UltraClass
-
Weight Set Range:25 kg - 1 mg
-
Set Capacity:85 kg
-
Set Total Pieces:31
-
Protective Case:Included
-
Construction:1 g and above are two-piece, 500 mg and below are one-piece
-
Density at 20°C:Below 5 mg are 2.70 g/cm3, 500 mg to 5 mg are 7.95 g/cm3, 2 kg and above are 7.95 g/cm3, 1 kg to 1 g are 8.03 g/cm3
-
Set Contents:(2) 2 g, (2) 200 g, (2) 20 mg, 20 kg, 500 mg, 10 g, (2) 20 g, 100 g, 100 mg, 10 mg, (2) 200 mg, 10 kg, 1 g, 50 g, (2) 2 kg, 5 g, 1 kg, 5 mg, 500 g, (2) 2 mg, 50 mg, 1 mg, 5 kg
-
Weight Material:500 mg to 5 mg are 304 Stainless Steel, ≥2 kg are 316 Stainless Steel, Below 5 mg are Aluminum, 1 kg to 1 g are Troemner Alloy 8
-
Wgt Origin (USA):USA
