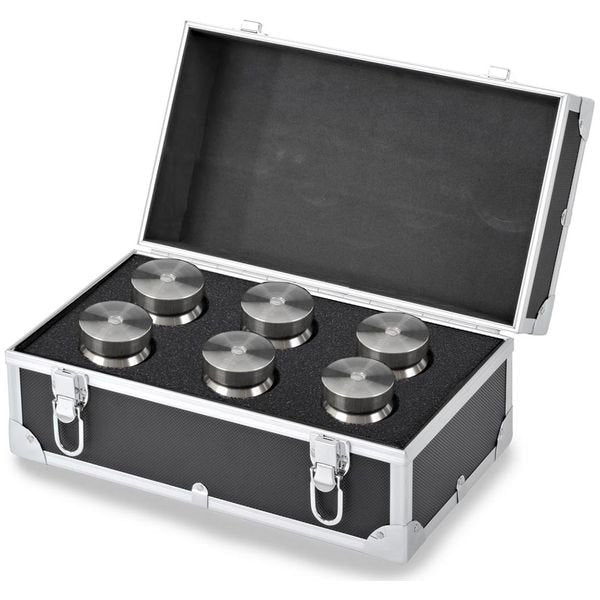

Ohaus - 30390023 - ASTM Scale Calibration Weight Set TEST (6) 5lb CL6 Non-Accrd TR
Features
ASTM Scale Calibration Weight Sets.
Troemner UltraClass offers high accuracy with tight tolerances and uncertainties of less than 1/4 of the tolerance. Weight surfaces meet or exceed ASTM and have a highly polished finish. Available in high grade stainless steels including Troemner Alloy 8 which possesses closely controlled density, extremely low magnetic properties, good stability, and resistance to corrosion. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements.
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. Class 5-7 weights may be used to test Class III, Class IIIL or IIII scales and other low precision scales not marked with a class designation.
Construction
Weights 10 lb through 8 oz - two-piece Weights 4 oz through 0.05 oz - one-piece construction
Design Features
Stainless steel test weights ≥1g, ≥0.01lb, and all ounce are cylindrical. Weights ≤500mg are aluminum and flat with one end turned up for easy handling. Weights ≤0.005lb, are flat dish weights.
Specifications
Overview
-
Internal Height:7.25" (18.42 cm)
-
Internal Width:13.25" (33.66 cm)
-
Internal Length:6" (15.24 cm)
Technical Data
-
Calibration Certificate:Traceable Certificate
-
NIST Class:F
-
Weight Set Range:(3) 5 lb
-
Set Capacity:30 lb
-
Set Total Pieces:6
-
Protective Case:Included
-
Construction:Two-piece
-
Density at 20°C:7,85 g/cm3
-
Set Contents:(6) 5 lb
-
Weight Material:303 Stainless Steel
-
Wgt Origin (USA):USA
