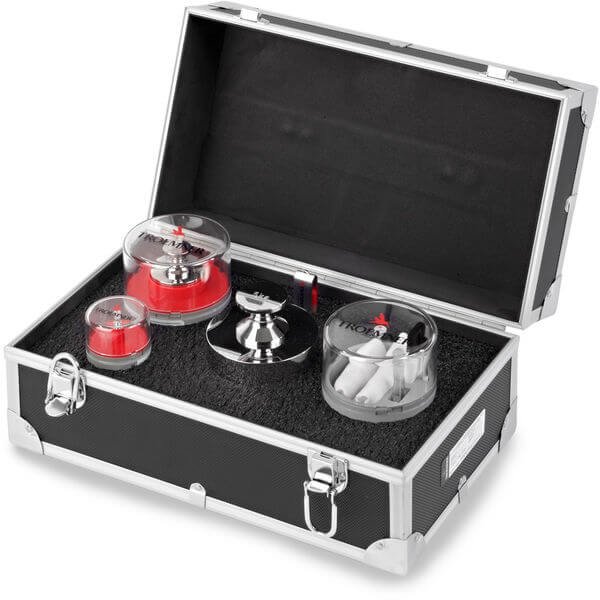

Ohaus - 30390006 - CalPak ASTM 5kg, 500g, 2g CL1 Accrd TR
Features
ASTM calibration weight sets
Troemner ASTM Class 1-4 offer high accuracy with tight tolerances and uncertainties of less than 1/4 of the tolerance. Weight surfaces meet or exceed ASTM and have a highly polished finish. Available in high grade stainless steels including Troemner Alloy 8 which possesses closely controlled density, extremely low magnetic properties, good stability, and resistance to corrosion. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements.
Applications
Use Class 1 as a primary reference to calibrate other mass standards and use for traceability between national mass standards and ASTM Class 2 weights and lower. Class 1 is appropriate for calibrating high-precision balances with readability as low as 0.1 mg.
Construction
Two-piece
Design features
Knob style weights 50 kg–1 g are cylindrical with knob. Cal-Pak 5 kg weight is a grip handle weight. Cylindrical style weights 1 kg–5 kg have groove. Cylindrical grip style weights 4 kg–30 kg have recessed grip. Cylindrical weights 10 g–600 g are straight cylinder.
Specifications
Overview
-
Internal Height:13" (33.02 cm)
-
Internal Width:16" (40.64 cm)
-
Internal Length:5" (12.7 cm)
Technical Data
-
Calibration Certificate:ISO/IEC 17025 Accredited Certificate
-
ASTM Class:1
-
Weight Set Range:5 kg - 2 g
-
Set Capacity:5,502 g
-
Set Total Pieces:3
-
Protective Case:Included
-
Construction:Two-piece
-
Density at 20°C:1 kg and below are 8.03 g/cm3, 2 kg and above are 7.95 g/cm3
-
Set Contents:2 g, 500 g, 5 kg
-
Weight Material:Weights 2 kg and above are 316 Stainless Steel, Weights 1 kg and below are Troemner Alloy 8
-
Wgt Origin (USA):USA
