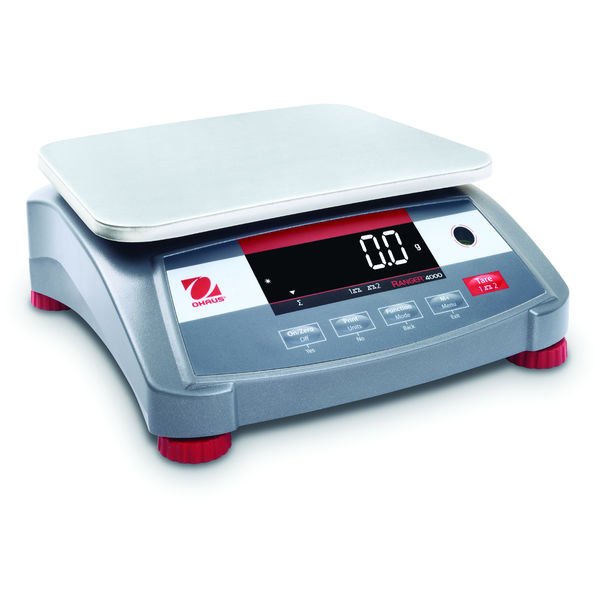

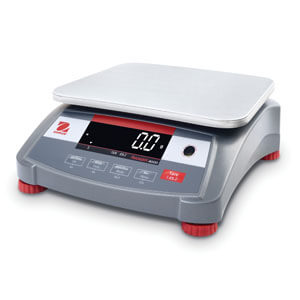

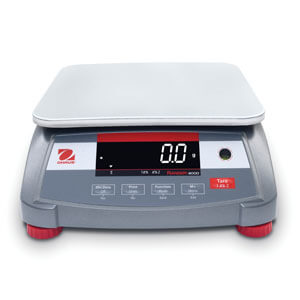

Ohaus - 30236777 - Ranger™ 4000 Bench Compact Scale, R41ME15 AM

Ohaus - 30236777 - Ranger™ 4000 Bench Compact Scale, R41ME15 AM

Ohaus - 30236777 - Ranger™ 4000 Bench Compact Scale, R41ME15 AM

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Durable Compact Scales for the Toughest Industrial Weighing Environments.

Features

The multipurpose Ranger 4000 is the right tool for industrial weighing applications in which value is important but quality, durability, and functionality cannot be compromised. Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with seven application modes that can provide results for many industrial weighing and measurement needs.


Applications


Weighing, parts counting, checkweighing, percent weighing, animal/dynamic weighing, display hold, accumulation


Display


Light-emitting diode display (LED), 3 color checkweighing LEDs


Operation

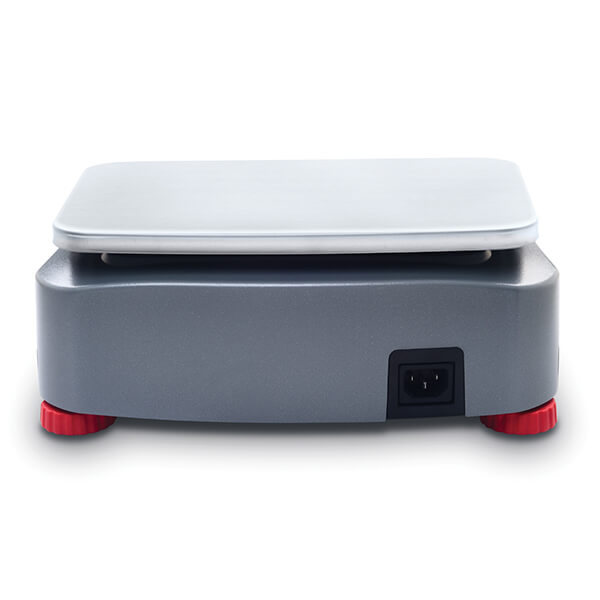

AC power (included) or rechargeable battery (included)


Communication

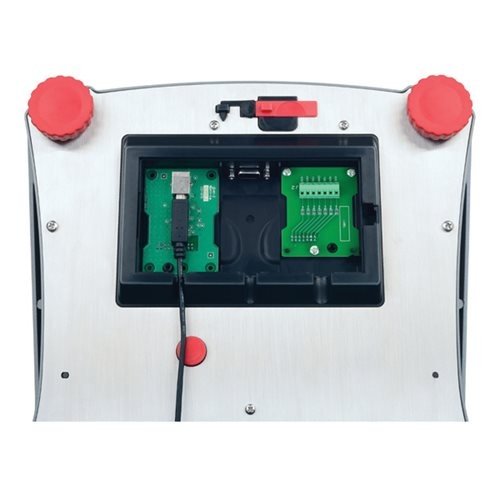

Easy access communication port including standard RS232 (included) and second RS232, USB or Ethernet (accessories sold separately)


Construction

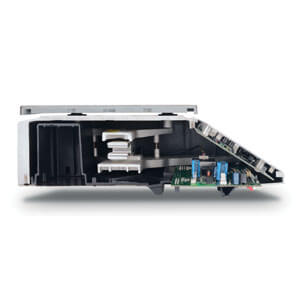

Rugged cast aluminum housing, stainless steel platform


Design features


Cast aluminum housing, stainless steel platform, integral weigh-below hook, sealed front panel, menu lock switch, up front level indicator, adjustable leveling feet, selectable environmental and auto-print settings, stability indicator, overload and underload indicators, low battery indicator, auto shut-off, auto tare.

Specifications

Overview

  • Nominal Height:
    4.8" (12.19 cm)
  • Nominal Width:
    12.4" (31.5 cm)
  • Nominal Length:
    12.9" (32.77 cm)

Technical Data

  • Maximum Capacity:
    30 lb (15 kg)
  • Readability:
    0.001 lb (0.5 g)
  • Readability (Certified):
    0.01 lb (5 g)
  • Platform Size:
    8.9 in x 11.8 in (225 mm x 300 mm)
  • Legal for Trade:
    NTEP Certified, Measurement Canada Approved
  • Power:
    AC Power (Included), Rechargeable Battery (Included)
  • Battery Life:
    100 Hours with Rechargeable Battery
  • Communication:
    2nd RS232 (Available as an Accessory), Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Display:
    LED Display
  • In-Use Cover:
    Included
  • Linearity ±:
    1 g
  • Net Weight:
    13 lb (5.9 kg)
  • Platform Construction:
    Stainless Steel
  • Protection Rating:
    Not Applicable
  • Tare Range:
    To capacity by subtraction
  • Transportation Case:
    Not Applicable
  • Units of Measurement:
    Gram, Kilogram, Pound, Ounce, Pound, Ounce
  • Working Environment:
    14°F - 104°F, 85%RH, non-condensing (-10°C - 40°C, 85%RH, non-condensing)
