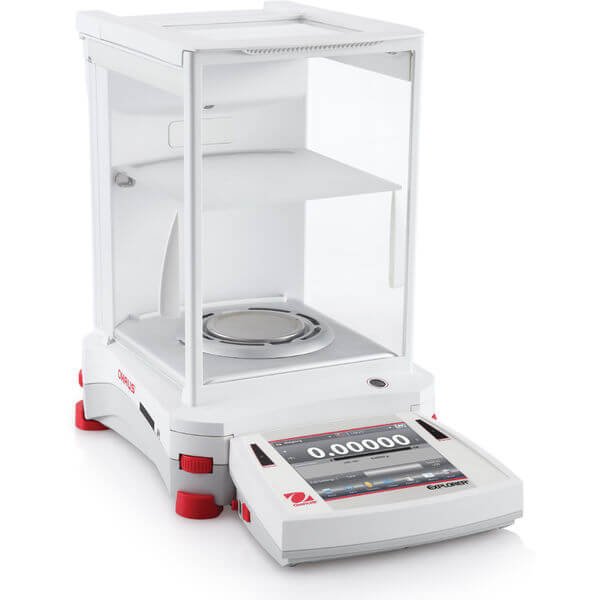

Ohaus - 30139511 - Explorer™ Semi-Micro Balance EX125
Features
When laboratory work and research requires accuracy to the hundred-thousandth, there is simply no room for error. The Explorer series of semi-micro balances has been designed with the technology to ensure that your very specific weighing results are accurate. Sophisticated laboratories requiring accuracy and looking for innovative technology to obtain measurement results can find both in Explorer semi-micro balances.
Explorer's weighing cells precision-machined from a solid metal block, together with AutoCalTM provides exceptional accuracy and durability suitable for laboratory and industrial environments. Features such as four-level user management with password protection, and un-editable system log plus a high level of configurability make Explorer balances well suited for regulated applications. A detachable terminal with a large color touchscreen, programmable IR sensors, optional built-in Ionizer & automatic doors, and a frameless draftshield make Explorer balances easy & convenient to use.
Applications
Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Pipette Adjustment, SQC
Display

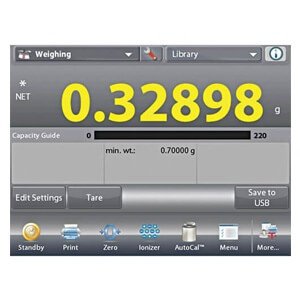

Full-color VGA graphic display (5.7 in. diagonal), 4-wire resistive touch screen. QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data
Operation
AC Adapter (Included)
Communication
Easy access communication ports including 2 units of USB port and RS232 and an optional fourth port of either RS232 or Ethernet. GLP/GMP Data Ouput with Real Time Clock. Data Transfer Function.
Construction
Metal base, ABS top housing, stainless steel pan, anti-static glass draftshield with flip-top door, replaceable in-use cover, automatic door as option models
Design Features
AutoCal™ fully-automatic internal calibration system, fast stabilization time, four touchless sensors, built-in ionizer with automatic door models, up to 14 operating languages, OIML models available, SAVE to USB function, menu lock switch, security bracket, integral weigh below hook for below balance weighing applications, removable stainless steel weighing platform, stability indicator, overload and underload indicators, auto standby.
Specifications
Overview
-
Nominal Height:13.8" (35.05 cm)
-
Nominal Width:9.1" (23.11 cm)
-
Nominal Length:15.5" (39.37 cm)
Technical Data
-
Maximum Capacity:120 g
-
Readability:0.01 mg
-
Pan Size:3.14 in (80 mm)
-
Internal Calibration:AutoCal™ - Automatic
-
Draftshield:Included
-
Auto Door:Not Applicable
-
Auxiliary Display Model:Available as an Accessory
-
Battery Life:Not Applicable
-
Built-in Lonizer:No
-
Communication:Ethernet (Available as an Accessory), USB (Included), RS232 (Included), USB Host
-
Display:Full-color 5.7 in VGA, touch screen
-
In-Use Cover:Included
-
Legal for Trade:No
-
Linearity:± 0.1 mg
-
Minimum Weight (USP, 0.1%, Typical):20 mg
-
Net Weight:7 kg
-
Pan Construction:Stainless Steel
-
Power:AC Adapter (Included)
-
Repeatability, Typical:0.015 mg
-
Stabilization Time:8 s
-
Tare Range:To capacity by subtraction
-
Units of Measurement:Ounce Troy, Pennyweight, Momme, Gram, Kilogram, Grain, Tola, Tical, Mesghal, Carat, Ounce, Custom
-
Working Environment:50°F - 86°F, 85%RH, non-condensing (10°C - 30°C, 85%RH, non-condensing)
