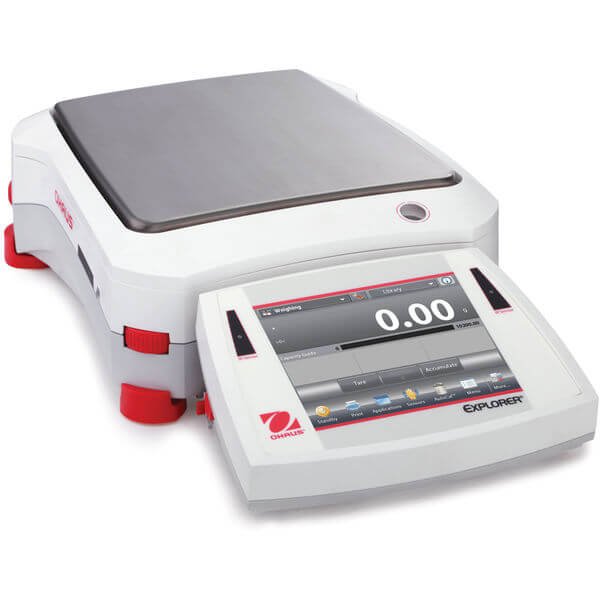

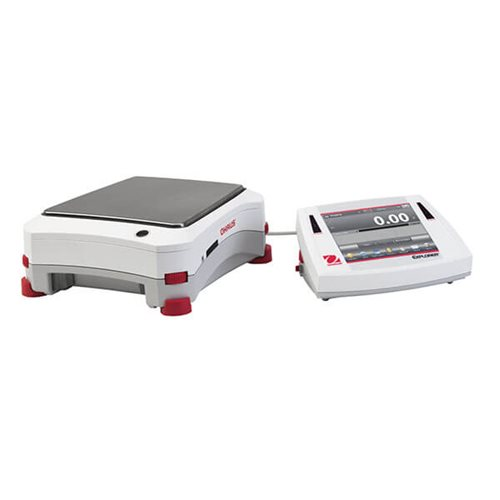

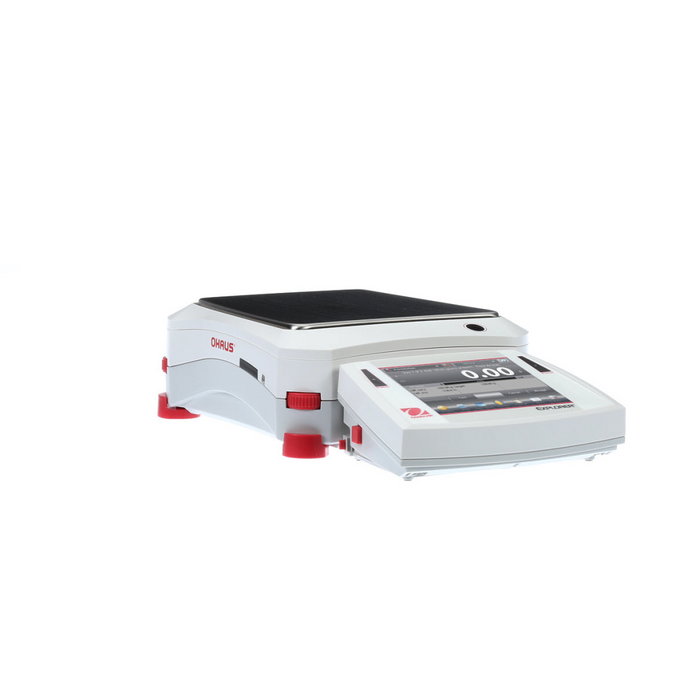

Ohaus - 30061983 - Explorer™ Precision Flagship Balance EX6202/E

Ohaus - 30061983 - Explorer™ Precision Flagship Balance EX6202/E

Ohaus - 30061983 - Explorer™ Precision Flagship Balance EX6202/E

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Flagship Balances from OHAUS.

Features

The OHAUS Explorer Series of precision balances combine modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. These smart and intuitive balances simplify even the most complex laboratory measurements.


Applications


Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics


Display

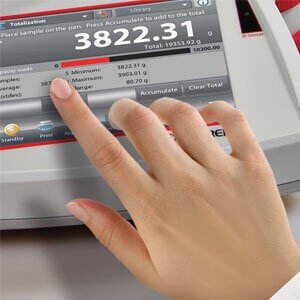

5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness


Operation


AC adapter (included)


Communication


RS232 and USB (included) or second RS232/Ethernet (accessories sold separately). GLP/GMP data output with real-time clock.


Construction


Metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors & flip/sliding top door (1mg models), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover


Design Features


Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages

Specifications

Overview

  • Nominal Height:
    3.9" (9.91 cm)
  • Nominal Width:
    9.1" (23.11 cm)
  • Nominal Length:
    15.5" (39.37 cm)

Technical Data

  • Maximum Capacity:
    6,200 g
  • Readability:
    0.01 g
  • Pan Size:
    7.5 in x 8 in (190 mm x 200 mm)
  • Internal Calibration:
    Not Applicable
  • Auxiliary Display Model:
    Available as an Accessory
  • Battery Life:
    Not Applicable
  • Communication:
    Ethernet (Available as an Accessory), USB (Included), RS232 (Included)
  • Display:
    Full-color 5.7 in VGA, touch screen
  • In-Use Cover:
    Included
  • Legal for Trade:
    Not Applicable
  • Linearity ±:
    0.02 g
  • Minimum Weight (USP, 0.1%, Typical):
    16 g
  • Net Weight:
    11 lb (5 kg)
  • Pan Construction:
    Stainless Steel
  • Power:
    AC Adapter (Included)
  • Repeatability, Typical:
    0.01 g
  • Stabilization Time:
    1 s
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Singapore Tael, Ounce Troy, Pennyweight, Grain, Kilogram, Tical, Custom, Milligram, Momme, Newton, Baht, Taiwan Tael, Gram, Hong Kong Tael, Pound, Tola, Mesghal, Carat, Ounce
  • Working Environment:
    50°F - 86°F, 85%RH, non-condensing (10°C - 30°C, 85%RH, non-condensing)
