Multi-Purpose Compact Bench Scales for Industrial Weighing Applications.

Features

The multipurpose Ranger 3000 has all of the capabilities to produce precise results rapidly for a variety of applications. With seven application modes, Ranger 3000 is the ideal scale to meet many industrial weighing needs. Portable and equipped with a rechargeable battery, this scale is beneficial in every corner of the factory and is equipped with functions and features that elevate the Ranger 3000 to a class of its own.



With the largest display in its class, checkweighing LED indicators and backlit LCD display, the Ranger 3000 can function in any industrial environment. User-friendly scale with easy setup to ensure efficiency in the workplace. Eliminate waiting time and increase control of your operation with accurate one-second results.



Applications



Weighing, Parts Counting, Checkweighing, Percent Weighing, Animal/Dynamic Weighing, Display Hold, Accumulation



Display



Backlit liquid crystal display (LCD), 3 color checkweighing LEDs



Operation



AC power (included) or rechargeable battery (included)



Communication

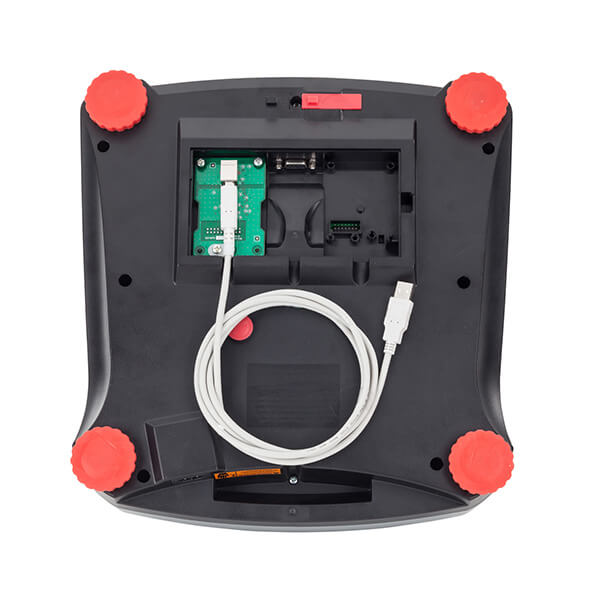

Easy access communication port including standard RS232 (included) and second RS232, USB or Ethernet (accessories sold separately)



Construction



ABS housing, stainless steel platform, menu lock switch, up-front level indicator, integral weigh-below hook, transportation handle



Design Features



210 hours of battery life, 3 LED checkweighing lights with selectable operation and audible signal settings, selectable environmental and auto-print settings, auto shut-off, auto tare



Watch the video

Specifications

Overview

  • Nominal Height:
    4.6" (11.68 cm)
  • Nominal Width:
    12.9" (32.77 cm)
  • Nominal Length:
    12.2" (30.99 cm)

Technical Data

  • Maximum Capacity:
    15 lb (6 kg)
  • Readability:
    0.0005 lb (0.2 g)
  • Readability (Certified):
    0.005 lb (2 g)
  • Platform Size:
    8.9 in x 11.8 in (225 mm x 300 mm)
  • Legal for Trade:
    NTEP Certified, Measurement Canada Approved
  • Power:
    AC Power (Included), Rechargeable Battery (Included)
  • Battery Life:
    210 Hours with Rechargeable Battery
  • Communication:
    2nd RS232 (Available as an Accessory), Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Display:
    LCD with white LED backlight + 3 LED
  • In-Use Cover:
    Available as an Accessory
  • Linearity:
    ± 0.4 g
  • Net Weight:
    9.2 lb (4.2 kg)
  • Platform Construction:
    Stainless Steel
  • Protection Rating:
    Not Applicable
  • Tare Range:
    To capacity by subtraction
  • Transportation Case:
    Available as an Accessory
  • Units of Measurement:
    Gram, Kilogram, Pound, Ounce, Pound, Ounce
  • Working Environment:
    14°F - 104°F, 85%RH, non-condensing (-10°C - 40°C, 85%RH, non-condensing)
