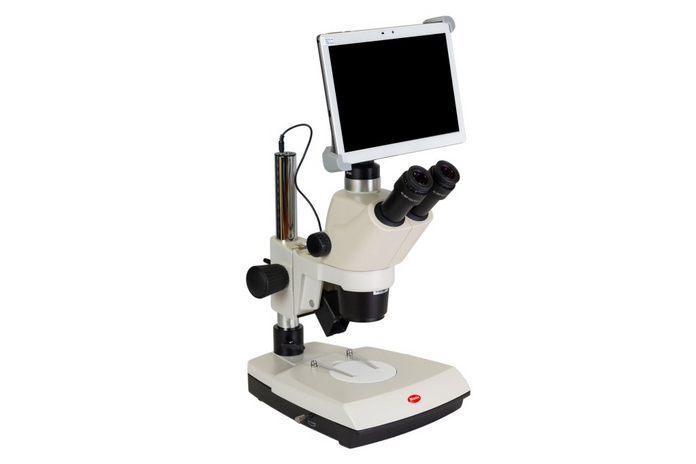

Motic Instruments - SMZ-171-TLED Packages & Bundles - Stereo Microscopes and Digital Camera Bundles
Product Range
| SKU | Name |
|---|---|
| 1100501300052 | Motic Instruments - 1100501300052 - SMZ-171-TLED Stereo Microscopes and BTI10 Digital Camera Bundles |
| 1100501300053 | Motic Instruments - 1100501300053 - SMZ-171-TLED Stereo Microscopes and BMH4000X Digital Camera Bundles |
Features

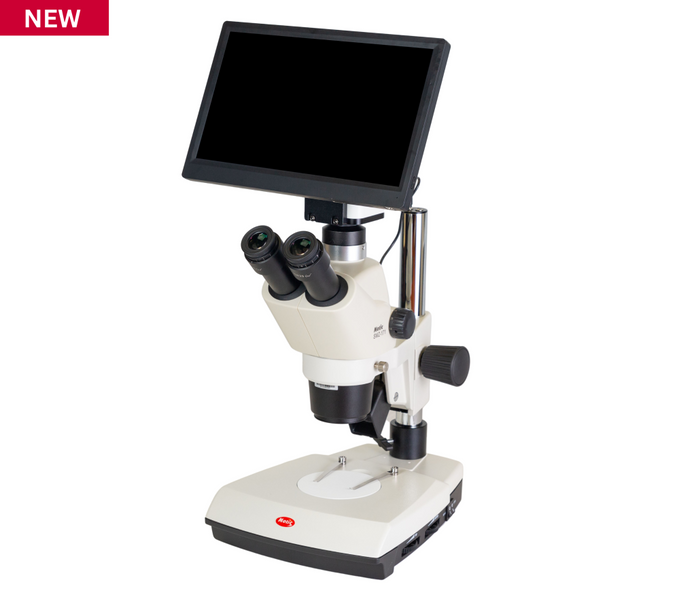

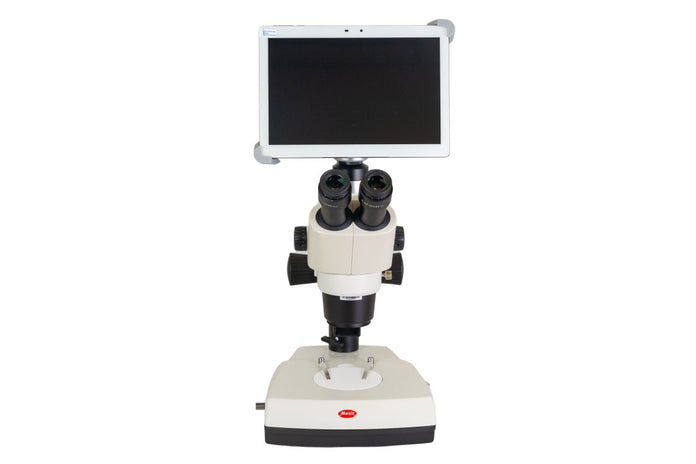

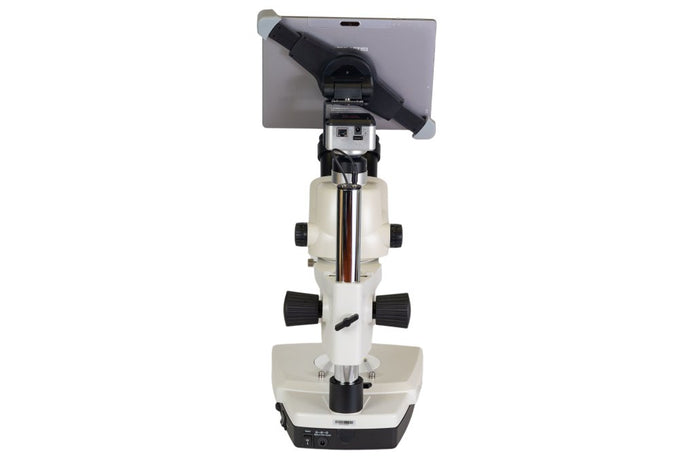

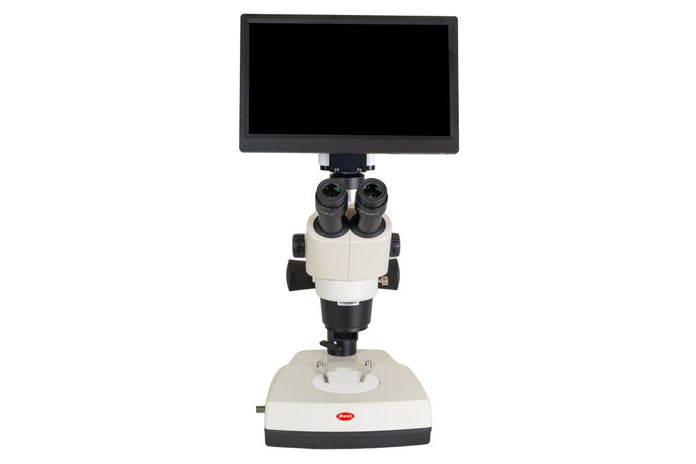

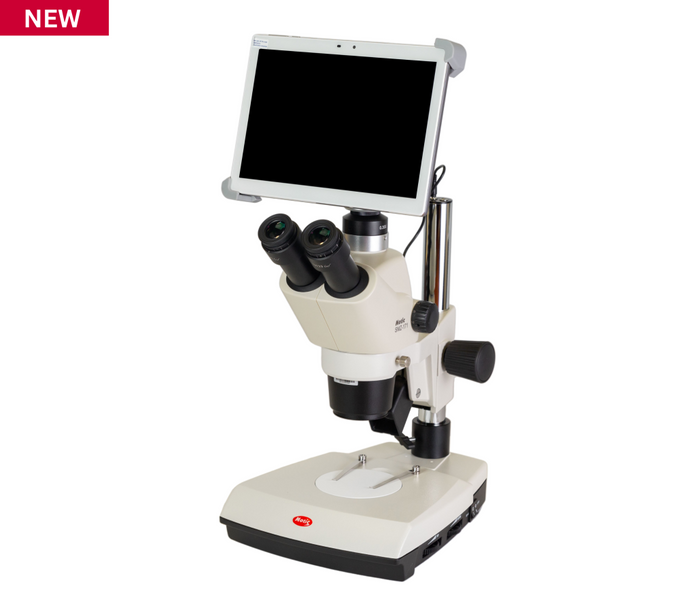

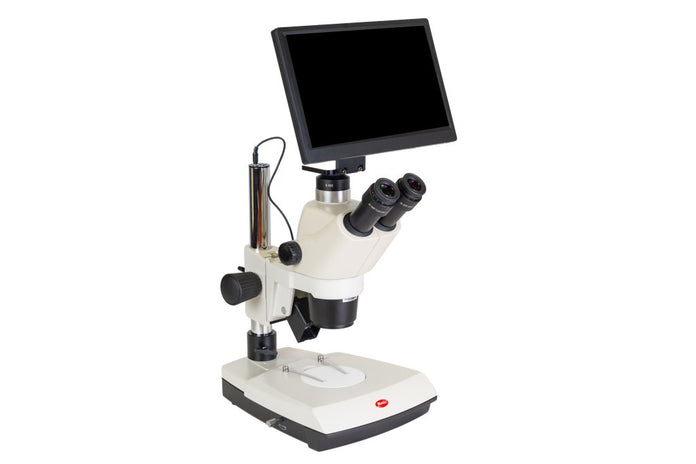

This digital camera bundle comes with:
- SMZ-171-TLED Trinocular

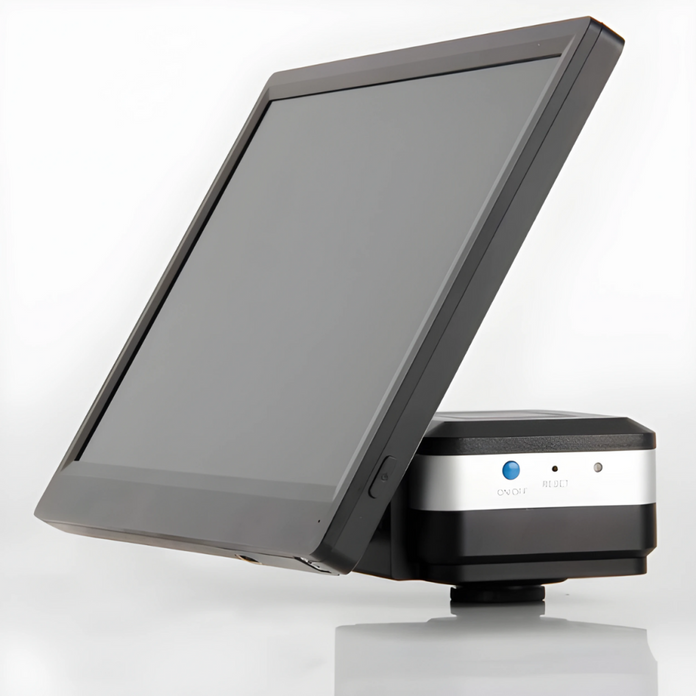

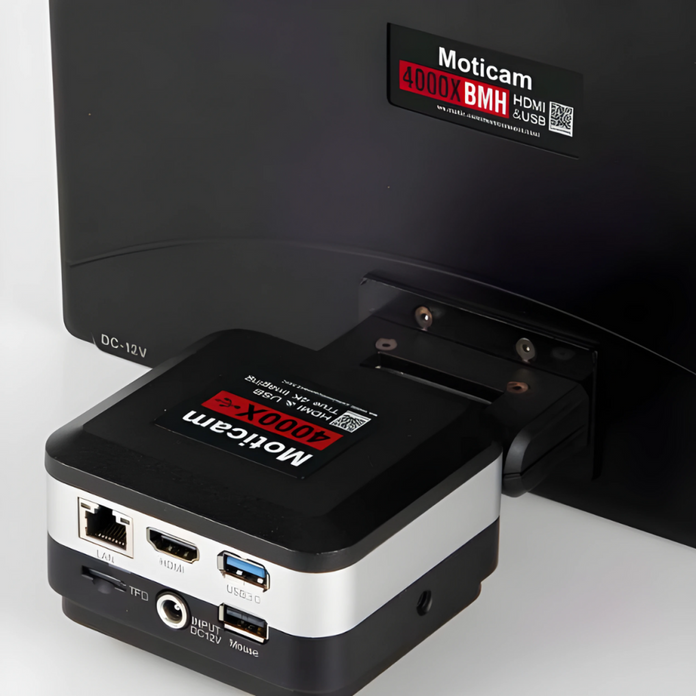

- Moticam BMH4000X
- Compatible C-mount adapter
With the new SMZ-171 Stereo Zoom microscope Motic proudly introduces an optically improved addition to its well-established SMZ Stereo series. New materials for ESD compatibility as well as optimized LED illumination options have been added to this series to create a versatile Stereo microscope platform for a wide range of biological and material science applications.
Specifications
Overview
SMZ-171-TLED Tecnical Data
-
Observation Tube:Trinocular head
-
Optical System:Greenough
-
Inclination:45° inclined
-
Trinocular Light Split:Fixed 50/50
-
Interpupillary Distance:52-75 mm
-
Diopter Adjustment:On both eyepieces, ±5 diopter
-
Eyepieces:Widefield N-WF10X/23 mm with diopter adjustment
-
Objectives System:Zoom, ratio 6/7/1
-
Objectives:0.75X ~ 5X
-
Working Distance:110 mm
-
Stand Type:Pole type stand without illumination
-
Head Holder:For Ø32mm column and Ø76mm head
-
Focus Mechanism:Coarse focusing system with tension adjustment
-
Focusing Stroke:49 mm
-
Accessories Included:Dust cover, black/white stage plate
-
Base Size:303 x 239 mm
-
Column/Arm:Height 290mm, Ø32mm
-
Net Weight:5.7kg
