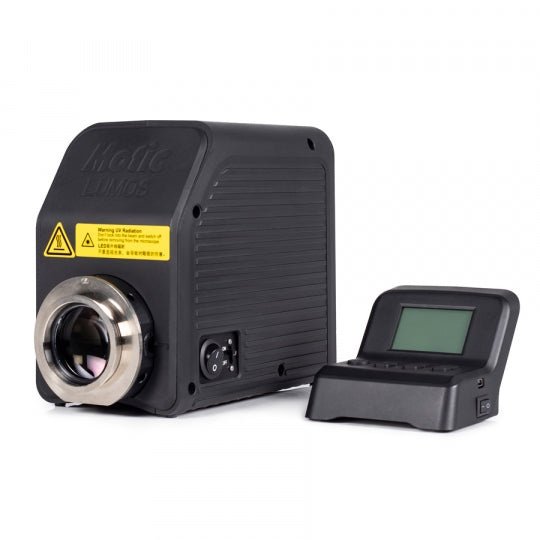

Motic Instruments - 1101011700231 - LUMOS FL LED High Powered Light Source
Features
LUMOS FL: High-Powered UV-BG Fluorescence LED Lamp
- Features apochromatic design
- Compared to the lifespan of only 200 hours and the high cost of mercury-arc lamps, the LUMOS FL provides over 20,000 hours of use
- No light toxicity like traditional mercury-arc lamps which can damage samples with infrared light heat toxicity
- Instant On/Off: Unlike traditional mercury-arc lamps which take up to 20 minutes to reach optimal brightness levels when turned on, the LUMOS FL is ready for use at the flip of a switch
- Dose not pose toxic gas danger to users
- Avoids stray light interference during observation, helping to avoid errors in user interpretation of images
- Individually controls each LED channel and eliminates need for multiple filters therefore reducing filter cube expense
- Features a broad spectrum spread which can satisfy multiple user applications
Specifications
Overview
-
Nominal Height:6.38" (16.21 cm)
-
Nominal Width:7.87" (19.99 cm)
-
Nominal Length:4.25" (10.8 cm)
Technical Data
-
Illuminator source:High power Color LED (UV, B, G) x3
-
Channel:UV (peak @ 395nm), B (peak @ 460nm), G (peak @ 540nm)
-
Illuminator input voltage:100-240V
-
Illuminator output voltage:15V
-
Output power:UV (760mW), Blue (610mW), Green (530mW)
-
Estimated life span:20.000h or 8 years (whichever comes first)
-
Speed of LED switching:Milisecond level
-
Environmental operating temperature:5 to 40°C
-
Environmental operating pressure:75 to 106KPa
-
Control pad connection to system:Wireless
-
Connection to computer or/and microscope:USB interface (with PA53 BIO Series)
-
Power requirements:130W (15V/8.66A) DC power supply included
-
Valid for:BA410E, PA53BIO, AE31E
