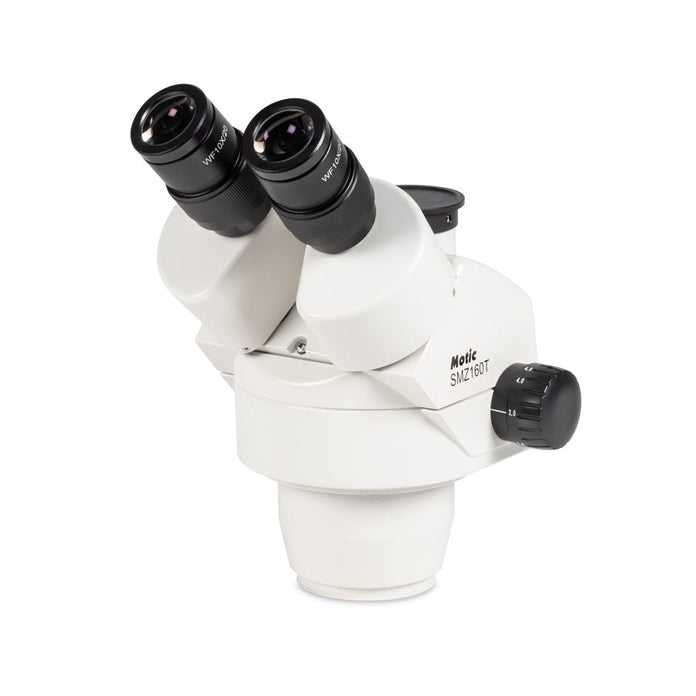

SMZ-160-TH Stereo microscope head.

Features

A stereo microscope head based on a Greenough optical system. The parfocal 6:1 zoom optics is meant for OEM purposes or the integration in experimental setups. The trinocular head with 45° inclination is adjustable in a range of 50-75mm Interpupillary distance. The Widefield eyepieces WF10X/20mm provide a quick sample overview. A working distance of 110mm gives freedom for manipulation work in a standard magnification range of 7.5X-45X. A fixed light split of 50:50 allows observation and documentation at the same time.

Specifications

Overview

  • Nominal Height:
    14.5" (36.83 cm)
  • Nominal Width:
    8.6" (21.84 cm)
  • Nominal Length:
    11" (27.94 cm)

Technical Data

  • Observation Tube:
    Trinocular head
  • Optical System:
    Greenough
  • Inclination:
    45° inclined
  • Trinocular Light Split:
    50/50
  • Interpupillary Distance:
    50-75 mm
  • Diopter Adjustment:
    On both tubes, ±5 diopter
  • Eyepieces:
    Widefield WF10X/20mm
  • Objectives System:
    Zoom, ratio 6/1
  • Objectives:
    0.75X ~ 4.5X
  • Working Distance:
    100 mm
  • Accessories Included:
    Dust cover
  • Net Weight:
    1.4kg
  • Standard Contrast Technique:
    Brightfield
