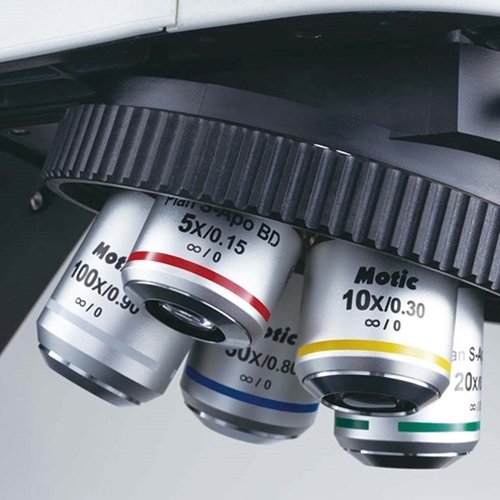

Plan S-APO BD 5X/0.15 (WD=17.7mm, CG=0).

Features

Plan S-APO objective BD 5X/0.15 WD 17.7mm CG=0.

Specifications

Overview

Technical Data

  • Objective Mounting Thread:
    M26 x 0.706
  • Objective Type:
    Plan semi-apochromatic
  • Objective Tube Length:
    Infinity CCIS®
  • Objective Magnification:
    5X
  • Objective N.A.:
    0.15
  • Objective W.D.:
    17.7 mm
  • Objective DIN:
    45 mm
  • Objective Coverglass Thickness:
    NCG
  • Objective Contrast Technique:
    Darkfield
  • Valid for:
    PA53MET Series
