Motic Instruments - 1100600101731 - Moticam BMH4000X
Features
Meet the new camera packages paired with BMH4000X

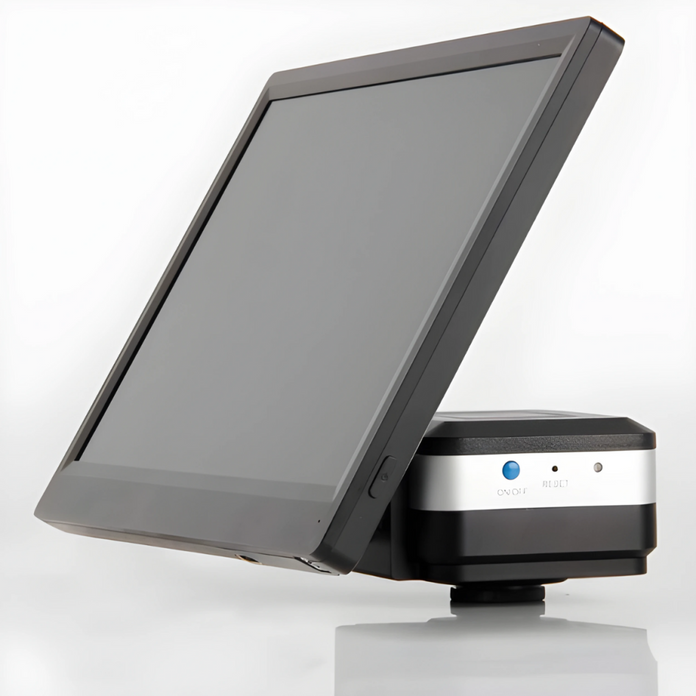

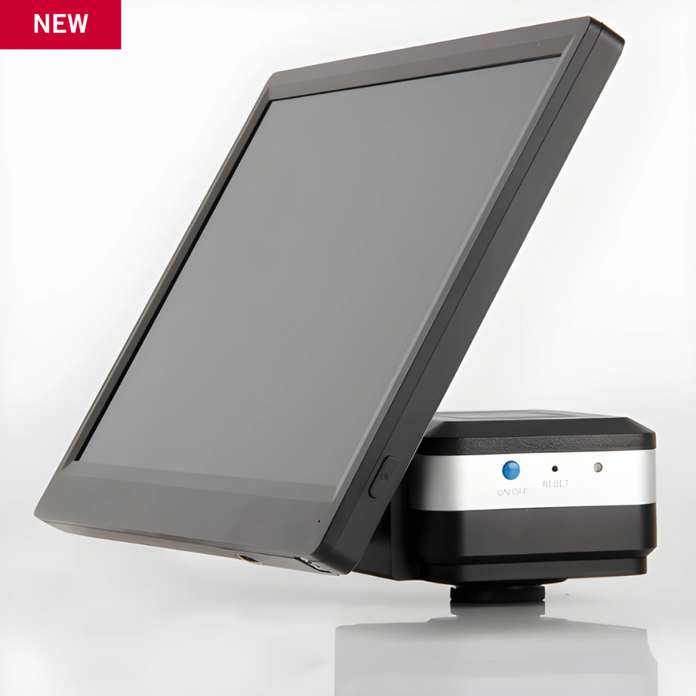

The new Moticam BMH4000X is a camera that was designed for ease of use and the ability to output fast live images at 4K (3840x2160) pixels in full HD.

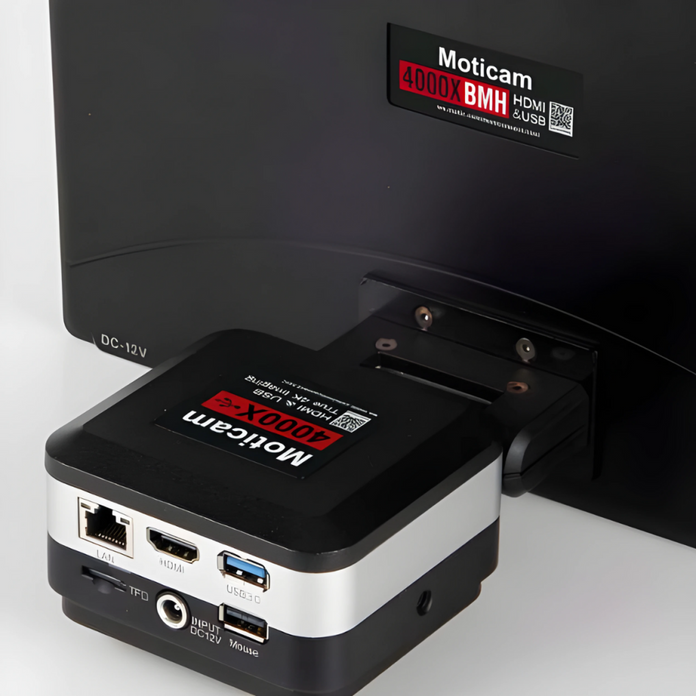

Unlike other cameras, the Moticam BMH4000X can be connected to a computer or through HDMI. Simply plug the camera through the HDMI port and display images with the use of the onboard software and a USB mouse through the built-in 11.6" LCD screen, or connect your camera through USB to a Windows, Mac or Linux computer.
By having an integrated SD card slot, not only does saving images not require a computer, but it also allows flexibility to save portable data.
Moticam BMH4000X - Full HD Cameras
The Moticam BMH4000X is a C-Mount multitasking microscopy camera, that delivers an impressive Full HD live image with maximum colour fidelity on an integrated LCD screen.
It does not require a computer for standard operation, as it comes with an on-board software that will allow you to use it through its 11.6" Full HD integrated screen, with a mouse connected to the USB port of the camera.
Specifications
Overview
Technical Data
-
Sensor Size:1/2.8"
-
Image Output:HDMI, UXC, Wi-Fi 5
-
Capture Resolution:8MP
-
Pixel Size:1.45 x 1.45 μm
-
Scan Mode:Progressive
-
Shutter Mode:Rolling shutter
-
Lens Mount:C-Mount
-
Max. Frames Per Second (FPS) HDMI:30fps @3840 x 2160 (4K)
-
Max. Frames Per Second (FPS) Wi-Fi:25fps @1920 x 1080, 12fps @3840 x 2160
-
Max. Frames Per Second (FPS) USB:30fps @3840 x 2160 (4K)
-
Image Capture:JPEG/TIFF Format With 4K (3840 x 2160) Resolution In SD Card
-
Video Record:4K (30fps @3840 x 2160) H.264/H.265 Encoded MP4 File In SD Card
-
Screen:LCD 11.6" Native 1920 x 1080 Pixels Full HD Screen
-
Software:Motic Images Plus 3.1 For Windows/Mac OS
