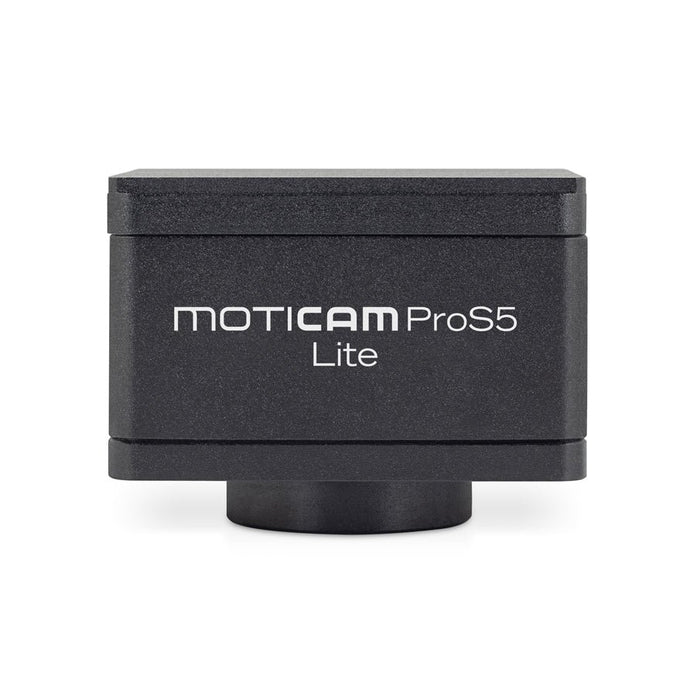

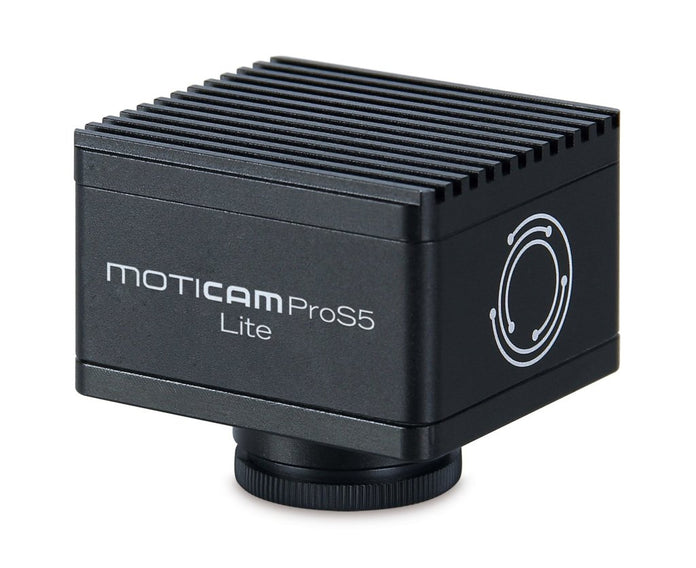

Motic Instruments - 1100600101101 - Moticam Pro S5 Lite Cameras & Softwares
Features
Moticam Pro S5 Lite with 5MP resolution delivers best conditions to document large samples from all biological/medical fields, at the same time showing high low-light sensitivity. The global shutter readout helps to accelerate data transfer moving/fast phenomena from biology and industrial production.
The right choice for challenging tasks in professional fields. The Moticam S Series offers smooth navigation, high colour fidelity, and crisp images designed by German engineers. Time efficiency in its best resolution from HD up to QHD+.
The Speedy Standards
Moticam S1 and Moticam S3 are designed for the fast and accurate imaging of results in biomedical environments or industry. Ultra-fast image capture and smooth navigation through your samples in live mode. Excellent balance of speed and image quality.
The Hi-Res Experts
Moticam S6, Moticam S12 and Moticam S20 are focused on resolution, ready to reveal the tiniest detail of your sample on a large screen. Documentation in printed format is no problem at all. The data volume created by the 6/12/20MP sensors should be handled by a computer with USB 3.1 Gen.1 port for faster transmission.
The Hi-Sensitives
Moticam Pro S5 Lite and Moticam Pro S5 Plus are characterized by a large 2/3' sCMOS sensor and a Global Shutter for speedy handling of moving phenomena. This camera line takes Sensitivity as a priority: Fluorescence, Polarization, and Darkfield are the applications the engineers had in mind.
Specifications
Overview
Technical Data
-
Sensor Type:sCMOS
-
Sensor Size:2/3"
-
Imaging Area:11.1 mm (Diagonal)
-
Capture Resolution:5MP
-
Live Display Mode Through USB:2448 x 2048, 1224 x 1024 pixels
-
Pixel Size:3.45 x 3.45 μm
-
Scan Mode:Progressive
-
Shutter Mode:Global shutter
-
Data Transfer:USB 3.1
-
Max. Frames Per Second (fps):2448 x 2048 @ 37.5fps, 1224 x 1024 @ 88.4fps
-
Exposure Time:14 μsec to 2 sec
-
Operating Temperature:From -10 to +60 Degrees Celsius (non-condensing)
-
Sensitivity:1146mV(G) @ 1/30 sec
-
Support Device:TWAIN, SDK and DirectShow Driver
-
Supported OS:Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
-
Minimum Computer Requirements:2GHz dual-core, RAM memory 2GB, Video memory min. 512 MB
-
Lens Mount:C-Mount
-
Software:Motic Images Plus 3.0 for Windows 10, MAC OSX10.9, Linux UBUNTU1604 or higher
-
Functions:Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system
-
Power Supply:5V (from USB Port)
-
Package Includes:CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
