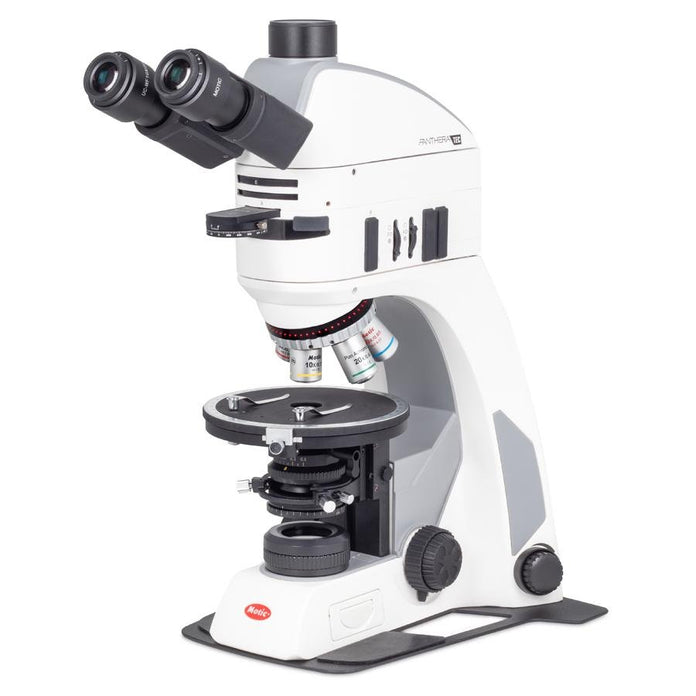

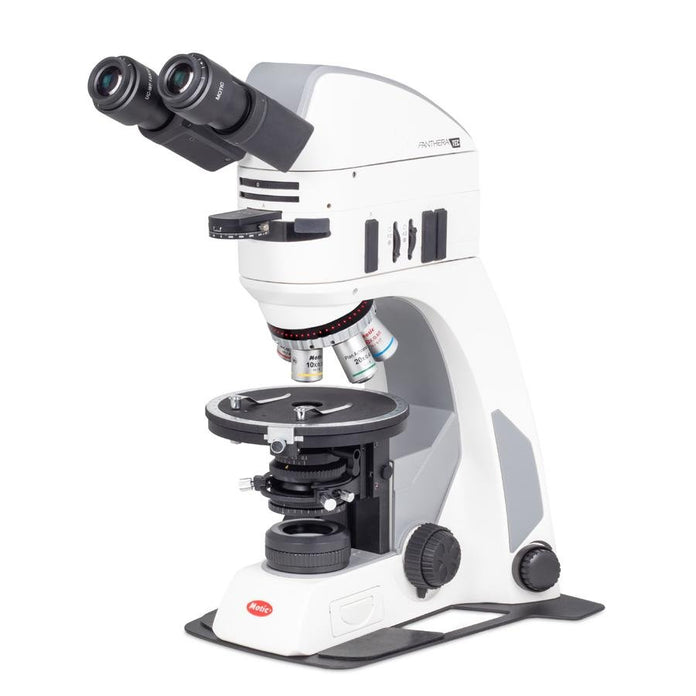

Panthera TEC POL EPI- Powerful Solutions for Incident and Transmitted Light Methods

A new level of Transmitted/Incident light microscope for diverse Polarization applications: Panthera TEC POL Epi is a polarization microscope (binocular / trinocular / digital) with a set of UC Plan Achromatic objectives, working with UC eyepieces of 20mm Field of View. An interchangeable 30W Halogen/3W LED light source is part of a Full-Köhler setup in Transmitted light. Incident light is provided by a compact illuminator with 3W LED light source. The Motic LightTracer system with memory function, a built-in Low-Energy mode and an LED feedback indicator helps to optimize your workflow.

The Panthera TEC POL EPI series fills a last gap in the Panthera family: Polarization microscopes for all material sciences, ready to handle transparent samples like fibers and foils with their inherent birefringence. The Incident light models for opaque materials work out the specific reflectivity (bireflection) of flat surfaces. To extend the application fields, all microscopes carry an intermediate tube with Bertrand lens to analyze the crystal structure and interference figures of gems, precious stones and minerals.

• UC Plan Achromat objectives (strain-free) for FOV 22mm
• Transmitted and transmitted/incident stand options
• Transmitted light: LED/HAL light source interchangeable
• Integrated focusable/centerable Bertrand lens
• Motic LightTracer: Coded nosepiece & digital light intensity knob
