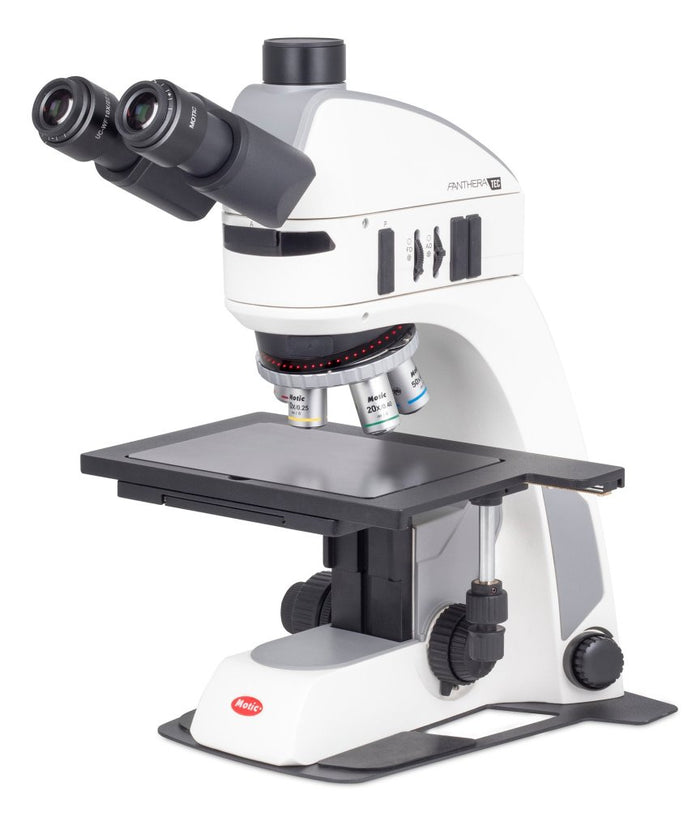

Panthera TEC MAT - Powerful Solutions for Material Sciences

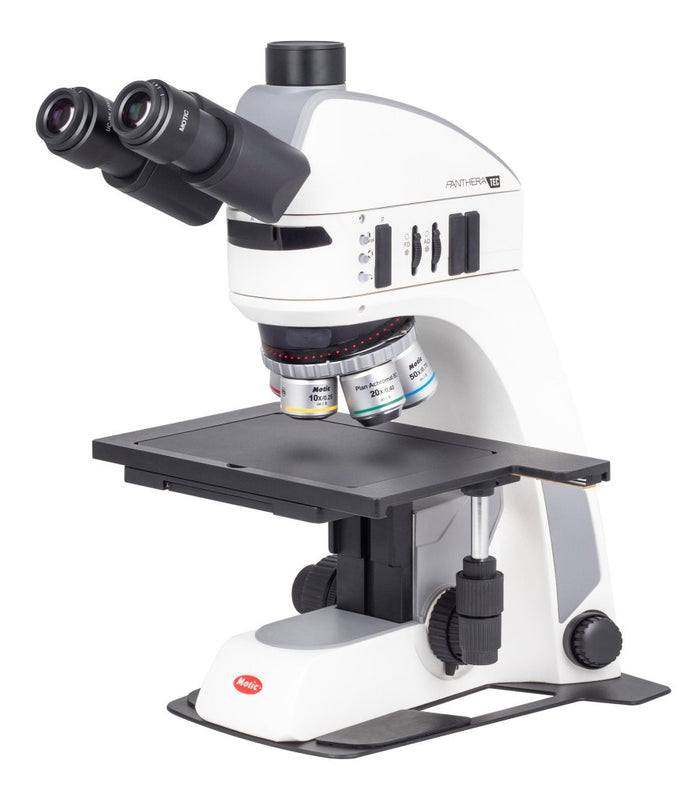

The Panthera TEC offers high value for the inspection of semiconductors and various other materials, especially in industrial quality control and technical education. Brightfield, Darkfield, and Cross-Polarization contrast are combined with a new, unique-to-Motic segmental illumination that all contribute to the versatility of this model. This concept allows an oblique incident illumination, perfect for the detection of scratches or other defects on flat and reflecting surfaces without a need to move the sample. BD models feature LD Plan BD objectives with a superb imaging performance, mounted on a 5-fold nosepiece.
The Panthera TEC series of industrial microscopes is the missing link in the Panthera family: incident light microscopes for material sciences, ready to handle semiconductors, LCD panels, and wafers with a clever Brightfield/Darkfield illumination concept. To extend the application fields for compound materials, microscope models with additional transmitted light by integrated LED illumination can be chosen.
- Smart Darkfield with 5 segment illumination mode
- New LD Plan Achromatic and S-Apochromatic BD objectives & 22mm FOV eyepieces
- Pure incident or incident/transmitted microscope stands available
- LED color temperature interchangeable

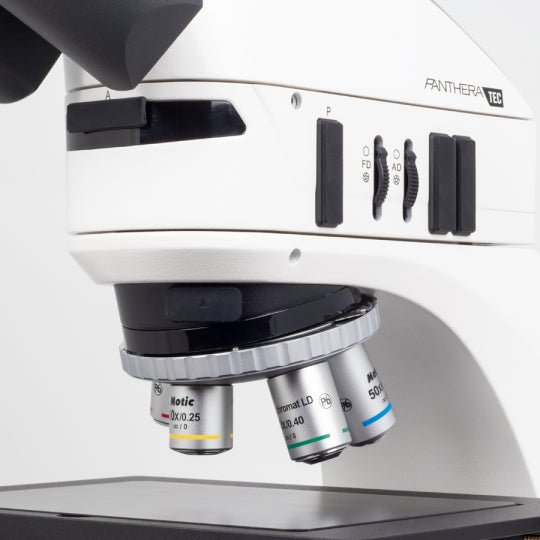

- Motic LightTracer: Coded nosepiece & digital light intensity knob
Specifications
Overview
-
Nominal Height:15.6" (39.62 cm)
-
Nominal Width:11.8" (29.97 cm)
-
Nominal Length:16.1" (40.89 cm)
Technical Data
-
Optical System:Colour Corrected Infinity Optical System (CCIS®)
-

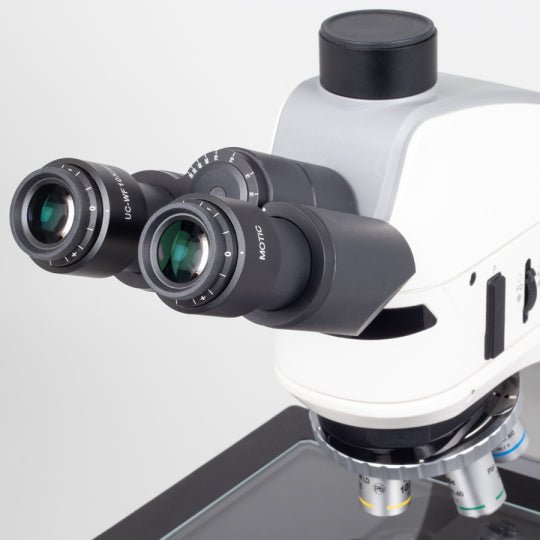

Observation Tube:Trinocular head, Siedentopf type, 360° swiveling
-
Inclination:25° inclined, 360° swivelling
-
Trinocular Light Split:Fixed 50/50
-
Interpupillary Distance:48-75 mm
-
Diopter Adjustment:On both eyepieces, ±4 diopter
-
Eyepieces:Widefield UC-WF10X/22mm with diopter adjustment
-
Intermediate Body:Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer
-

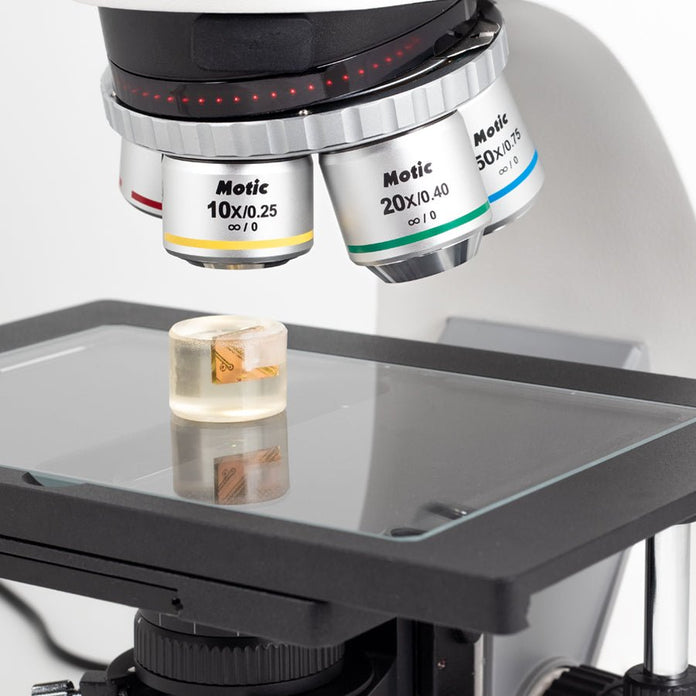

Nosepiece:Reversed quintuple, coded
-
Objective Classification:CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN
-

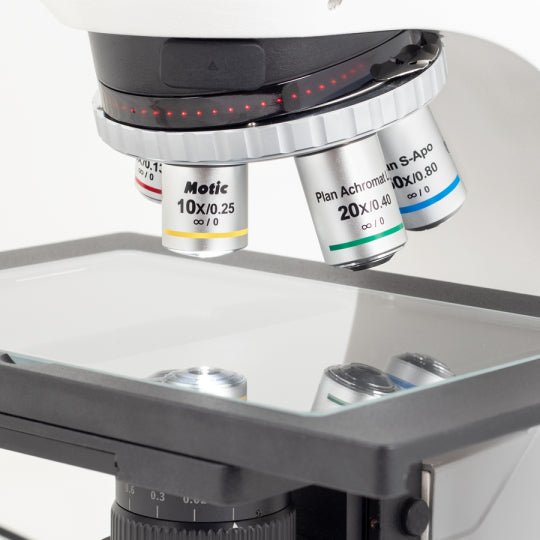

Objectives:5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), S-Apo 50X/0.80 (WD 1mm)
-
Objective Mounting Thread:W 4/5" x 1/36" (RMS standard)
-
Stand Type:Upright
-
Stage:Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate
-
Stage Size:300 x 180 mm
-
Travel Range X&Y:150 x 100 mm (6"x4")
-

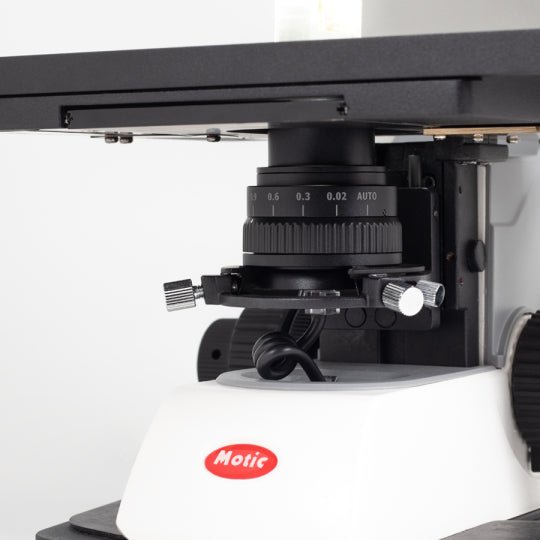

Condenser:LED condenser
-
Focus Mechanism:Coaxial coarse and fine focusing system with tension adjustment
-
Fine Focus Precision:2 µm
-
Focusing Stroke:25 mm
-
Upper Limit Stop:Upper limit stop preset but adjustable
-
Incident Illumination:LED 3W with integrated field and aperture diaphragms
-
Transmitted Illumination:0.06W x 39 LEDs
-
Illumination Interchangeability:LED color temperature interchangeability
-
Illumination Features:Motic LightTracer - Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
-
Transformer:Internal
-

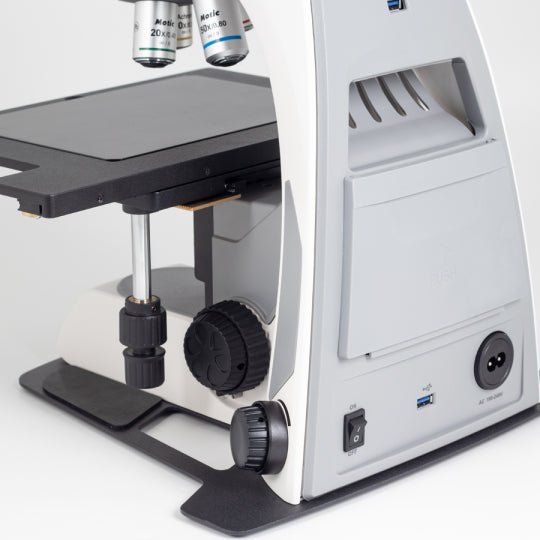

Power Supply:110-240V (CE)
-
Other Features:USB 2.0 for external camera power
-
Accessories Included:Dust cover, power cord, Allen key, screws for metal extension support
-
Net Weight:10.6kg
