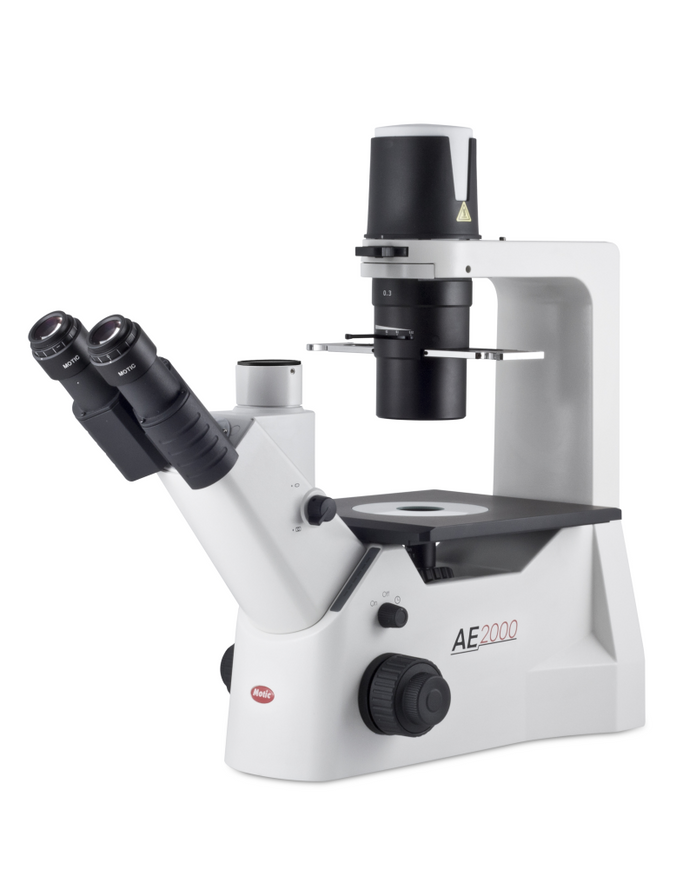

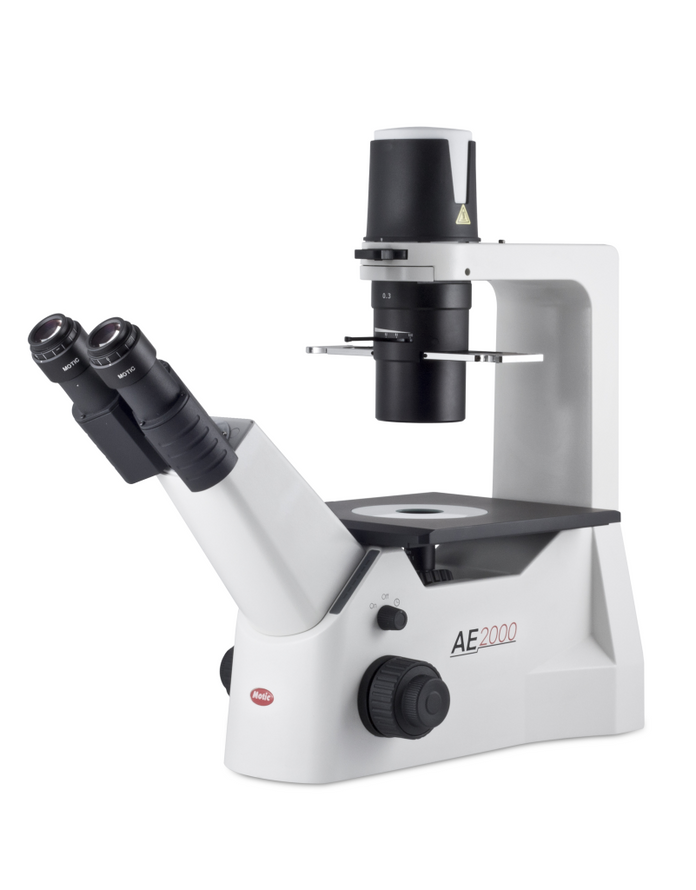

Motic’s AE2000 inverted microscope is designed for routine live cell inspection with an easy and flexible set up, ideal for university, routine-clinical, and lab environments.

Features

The AE2000 is a revolutionary design that is packed with features and sets a new benchmark in affordable inverted microscopy. Motic’s AE2000 inverted microscope is designed for routine live cell inspection with an easy and flexible set up, ideal for university, routine-clinical, and lab environments. The model’s main applications offer superior image quality when viewing cell cultures in microbiology, living organisms and tissue culture samples. The entire microscope including optical system is manufactured completely lead free, following the International RoHS regulations.

Specifications

Overview

  • Nominal Height:
    19.5" (49.53 cm)
  • Nominal Width:
    8.6" (21.84 cm)
  • Nominal Length:
    21.9" (55.63 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Binocular head, Siedentopf type, 360° swiveling
  • Inclination:
    45° inclined
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20 mm with diopter adjustment
  • Nosepiece:
    Left side facing quadruple
  • Objective Classification:
    CCIS Plan Achromatic, DIN

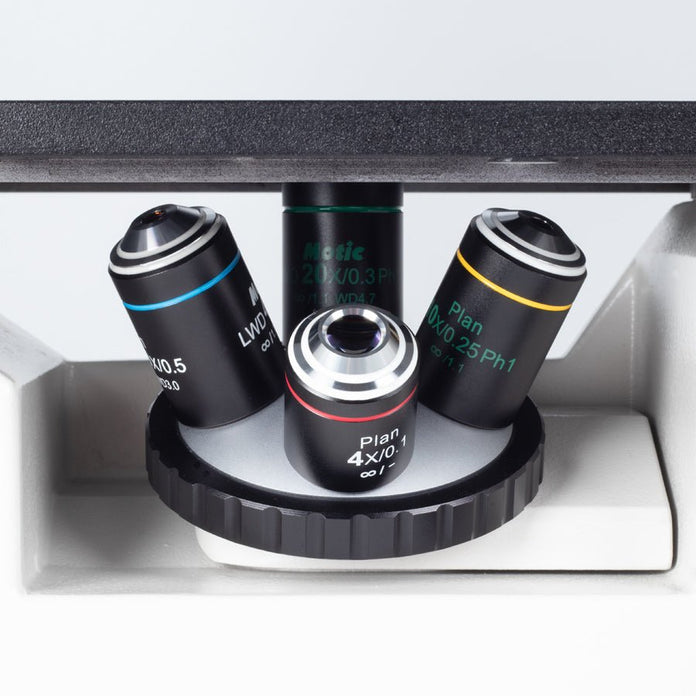

  • Objectives:
    4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), LWD 40X/0.50 (WD 3.0mm)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Inverted
  • Stage:
    Plain stage with metal and glass stage inserts
  • Stage Size:
    200 x 239 mm

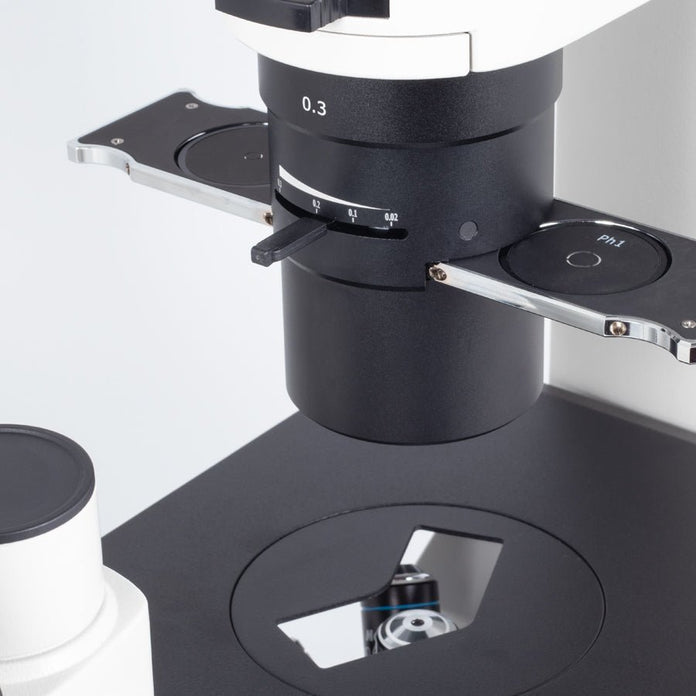

  • Condenser:
    ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing with tension adjustment
  • Fine Focus Precision:
    2 µm
  • Focusing Stroke:
    8 mm
  • Free Working Distance:
    Working distance without condenser 184mm
  • Transmitted Illumination:
    Quartz Halogen 6V/30W with intensity control

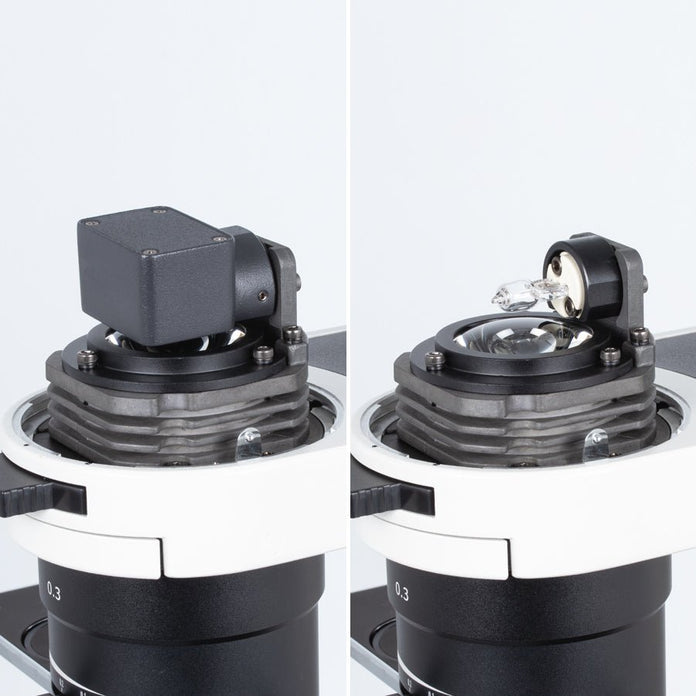

  • Illumination Interchangeability:
    Quartz Halogen 6V/30W or LED 3W
  • Illumination Features:
    Auto on/off
  • Transformer:
    External
  • Power Supply:
    100-240V (CE)
  • Accessories:
    Dust cover, power cord, blue, green and neutral density filters, phase ring Ph1, centering telescope, centering keys
  • Net Weight:
    12.2kg
