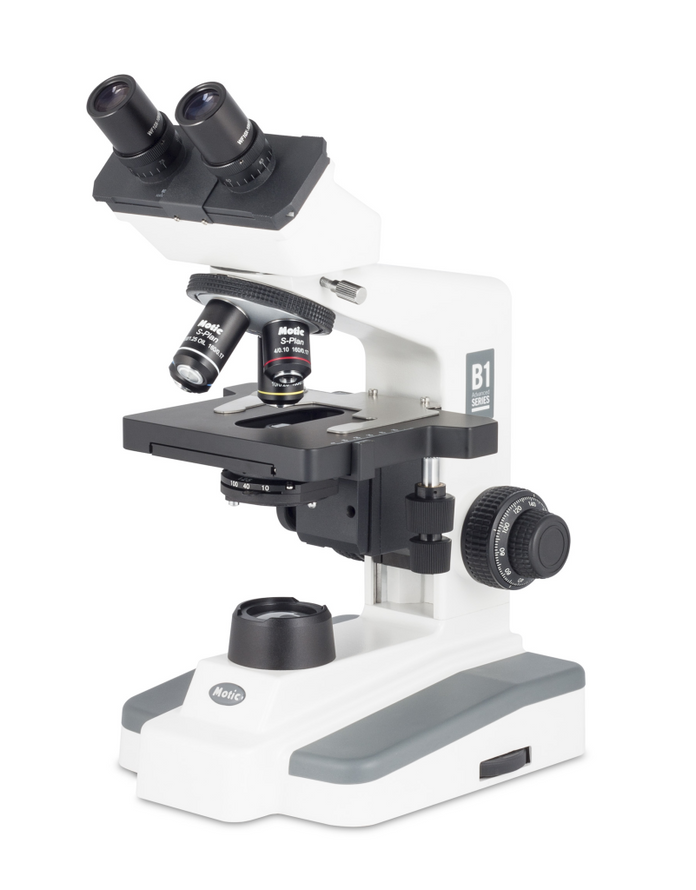

Overview

Technical Data

• Observation Tube:
  Binocular, sliding type
• Optical System:
  Finite Optical System, 160 mm
• Inclination:
  45° inclined, 360° rotating
• Interpupillary Distance:
  55-75 mm
• Diopter Adjustment:
  On both tubes, ±5 diopter
• Eyepieces:
  Widefield 10X/18mm
• Nose Piece:
  Quadruple revolving nose piece with click stops
• Objective Classification:
  Semi-Planachromatic SP
• Objectives:
  4X/0.1, 10X/0.25, 40X/0.65/S, 100X/1.25/S
• Stand Type:
  Upright
• Stage:
  Built-in low position coaxial rackless mechanical stage with sample holder
• Stage Size X&Y:
  76 x 40 mm
• Condenser:
  Focusable 1.25 N.A. Abbe condenser, iris diaphragm and filter holder
• Focus Mechanism:
  Coaxial coarse and fine focusing system with tension adjustment
• Fine Focus Precision:
  2 μm minimum increment
• Upper Limit Stop:
  Preset and adjustable
• Transmitted Illumination:
  3W LED illumination with intensity control
• Accessories Included:
  Dust cover and immersion oil
