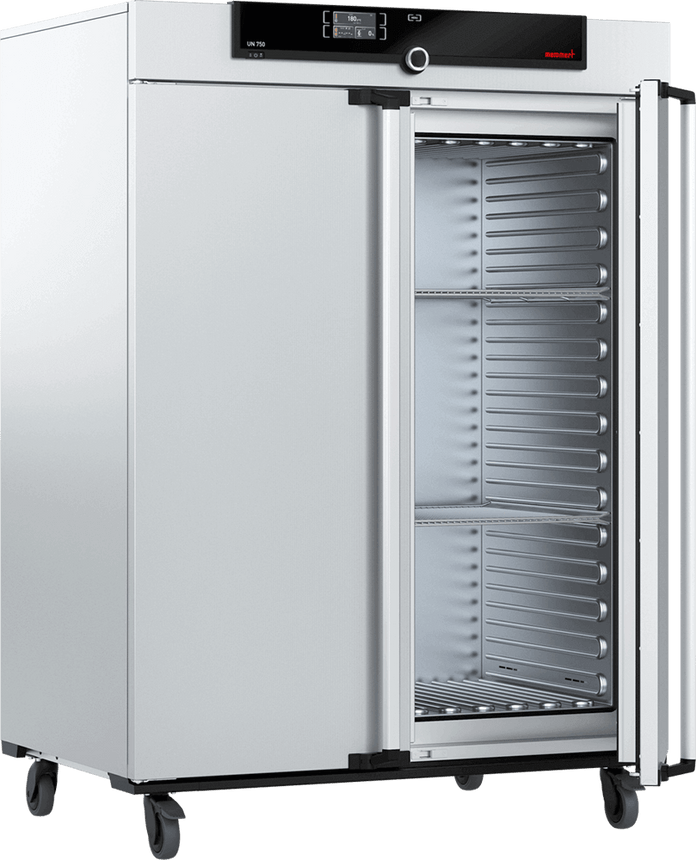

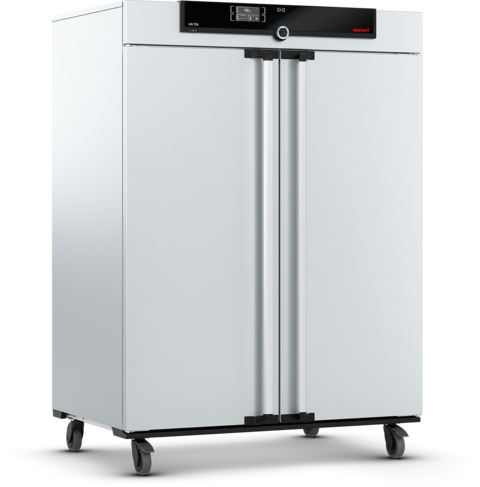

Memmert Natural Convection Oven UN 750, 208 volt, 3-phase, Temperature range to 300°C, without neutral, 50/60 Hz.

Features

The universally applicable lab oven U is Memmert's classic appliance for temperature control in science, research and material tests in the industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • SingleDISPLAY: Control temperature, fan speed, program time & more.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.

Specifications

Overview

  • Nominal Height:
    68" (172.72 cm)
  • Nominal Width:
    48.2" (122.43 cm)
  • Nominal Length:
    30.9" (78.49 cm)
  • Internal Height:
    47.2" (119.89 cm)
  • Internal Width:
    40.9" (103.89 cm)
  • Internal Length:
    23.6" (59.94 cm)

Temperature - Humidity

  • Set Temperature Range in °C:
    Min. 5°C above ambient up to +300°C
  • Temperature:
    1 Pt100 sensor DIN class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    26.4 ft³ / 749 L
  • Stainless Steel Interior - Number of Stainless Steel Grids (Standard Equipment):
    2
  • Stainless Steel Interior - Maximum Number of Grids:
    14
  • Stainless Steel Interior - Maximum Loading per Grid:
    66 lb / 30 kg
  • Stainless Steel Interior - Max. Loading of Chamber:
    661 lb / 300 kg
  • Control Technology - ControlCOCKPIT:
    Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Language Setting:
    German/English/Spanish/French
  • Control Technology - Calibration:
    Three freely selectable temperature values

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    For fault analysis
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Installation:
    On lockable castors
  • Standard Equipment - Internals:
    2 stainless steel grids
  • Standard Equipment - Scope of Delivery:
    Incl. works calibration certificate for +160°C
  • Standard Equipment - Housing:
    Rear zinc-plated steel
  • Electrical Data - Electrical Load:
    208 V (±10%), 3 phases, w/o neutral, 50/60 Hz, 17.6 amps
