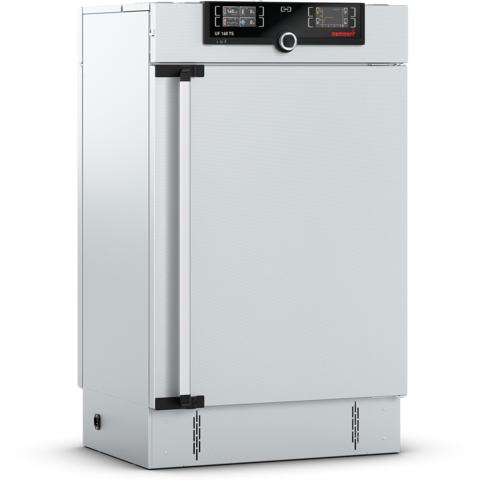

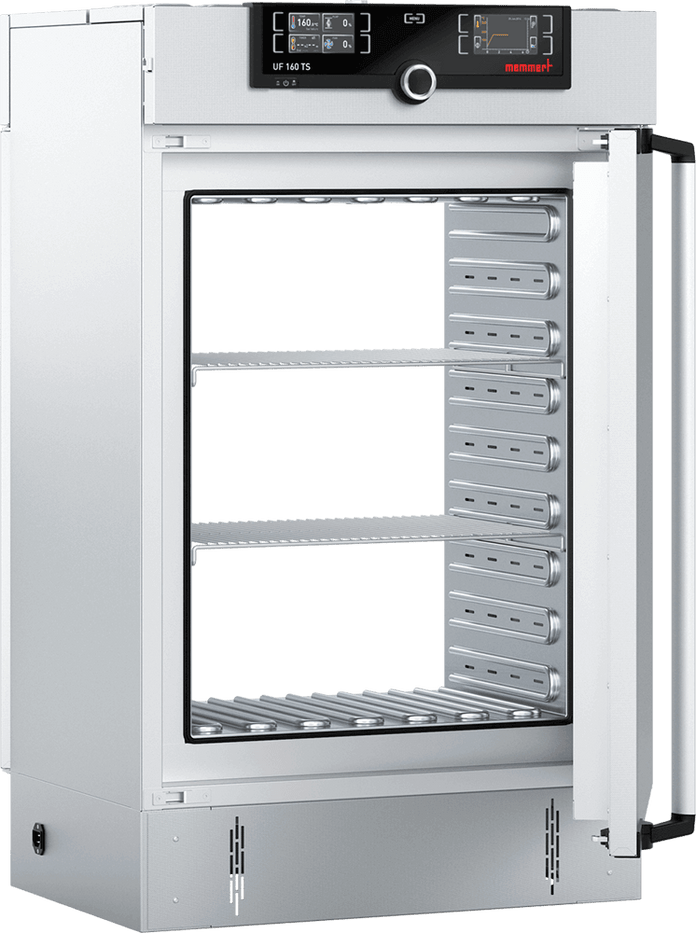

Memmert - UF 160 TS - Forced Circulation Pass-Through Oven

Memmert - UF 160 TS - Forced Circulation Pass-Through Oven
Memmert - UF 160 TS - Forced Circulation Pass-Through Oven

Memmert - UF 160 TS - Forced Circulation Pass-Through Oven

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Memmert Forced Circulation Oven UF 160TS Pass-Through Oven, 230 volt, 50/60 Hz.

Features

The Memmert heating oven with a fully insulated stainless steel door on both sides saves time during loading and reduces the risk of contamination, especially when handling sensitive load between gray and clean rooms. On this page, you can find all the essential technical data on our pass-through oven. Our customer relations team will be pleased to help if you want further information.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3-year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    48.5" (123.19 cm)
  • Nominal Width:
    29.3" (74.42 cm)
  • Nominal Length:
    22.9" (58.17 cm)
  • Internal Height:
    28.3" (71.88 cm)
  • Internal Width:
    22" (55.88 cm)
  • Internal Length:
    15.7" (39.88 cm)

Temperature - Humidity

  • Working Temperature Range:
    At least 10 °C above ambient temperature to +250 °C
  • Setting Resolution Temperature:
    Up to 99.9°C - 0.1 / from 100°C - 0.5
  • Setting Temperature Range:
    +20 to +250°C
  • Resolution of Display for Actual Values:
    0.1°C
  • Temperature Sensor:
    2 Pt100 sensors DIN Class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Interior:
    Easy-to-clean interior,made of stainless steel
  • Stainless Steel Interior - Max. Number of Shelves:
    8
  • Stainless Steel Interior - Max. Loading of Chamber:
    462 lbs
  • Stainless Steel Interior - Max. Loading per Shelf:
    44 lbs
  • Stainless Steel Interior - Volume:
    161 L / 5.7 cu ft
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function HeatBALANCE:
    Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Calibration:
    Three freely selectable temperature values

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    For fault analysis
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Shelving:
    2 stainless steel grids, electropolished
  • Standard Equipment - Door:
    Fully insulated stainless steel doors on two sides
  • Standard Equipment - Installation:
    With feet
  • Electrical Data - Electrical Load:
    230 V (±10%), 50/60 Hz, Approx. 3200 W / 14 A
