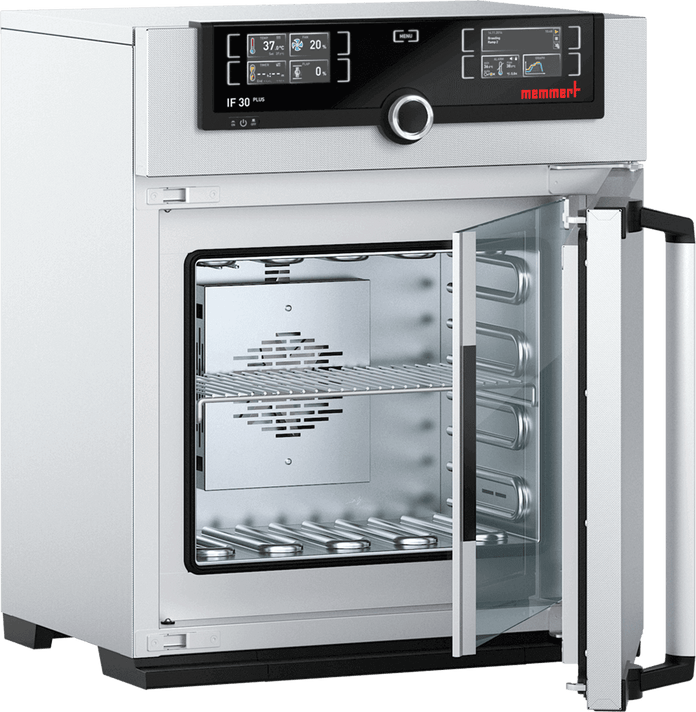

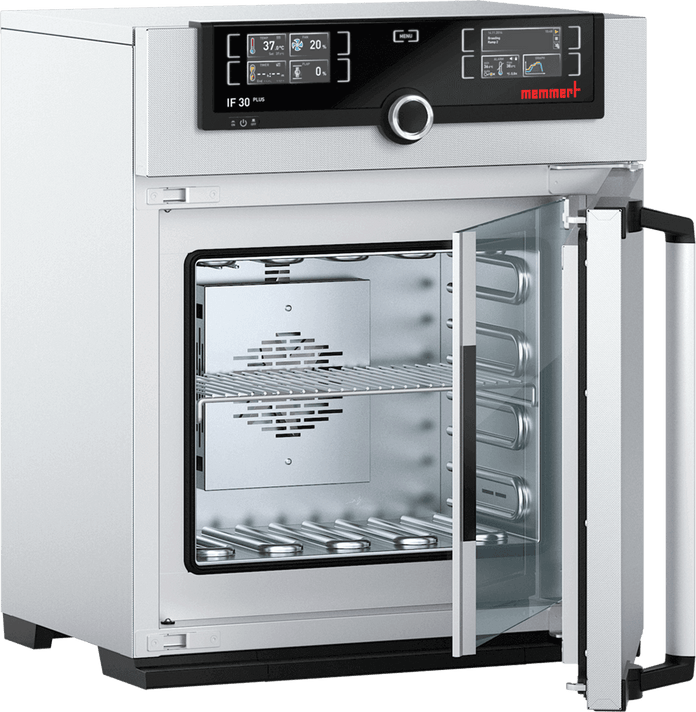

Memmert - IF 30 Plus, 230V - Forced Circulation Incubator

Memmert - IF 30 Plus, 230V - Forced Circulation Incubator

Memmert - IF 30 Plus, 230V - Forced Circulation Incubator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Memmert Forced Circulation Incubator IF 30 Plus, 230 volt, 50/60 Hz, maximum temperature range to 80°C.

Features

IF30Plus Memmert cooled storage incubators guarantee the perfect climate and temperature for laboratory applications.

  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    27.7" (70.36 cm)
  • Nominal Width:
    23" (58.42 cm)
  • Nominal Length:
    17.1" (43.43 cm)
  • Internal Height:
    12.6" (32.0 cm)
  • Internal Width:
    15.8" (40.13 cm)
  • Internal Length:
    9.8" (24.89 cm)

Temperature - Humidity

  • Temperature Sensor:
    2 Pt100 sensor DIN class A in 4-wire-circuit
  • Setting Temperature Range:
    +20°C to +80°C
  • Setting Accuracy Temperature:
    0.1°C
  • Working Temperature Range:
    Min. 10°C above ambient up to +80°C

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    32 L
  • Stainless Steel Interior - Max. Number of Internals:
    3
  • Stainless Steel Interior - Max. Loading of Chamber:
    132 lbs / 60 kg
  • Stainless Steel Interior - Max. Loading per Internal:
    44 lbs / 20 kg
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays
  • Control Technology - Sterilization:
    Fixed sterilisation programme (4 hours/160°C) for sterilisation of working chamber, not for sterilising the load
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), air flap position, program time, time zones, summertime/wintertime
  • Control Technology - Function HeatBALANCE:
    Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Language Setting:
    German, English, Spanish, French
  • Control Technology - Calibration:
    Three freely selectable temperature values

Safety - Standard Equipment - Electrical Data

  • Safety - Alarm:
    Audible and visual
  • Safety - Autodiagnostic System:
    For fault analysis
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Internals:
    1 stainless steel grid
  • Standard Equipment - Scope of Delivery:
    Incl. works calibration certificate for +37°C
  • Standard Equipment - Housing:
    Rear zinc-plated steel
  • Electrical Data - Electrical Load:
    230 V (±10%), 50/60 Hz, Approx. 7.0 amps / 1600 W
