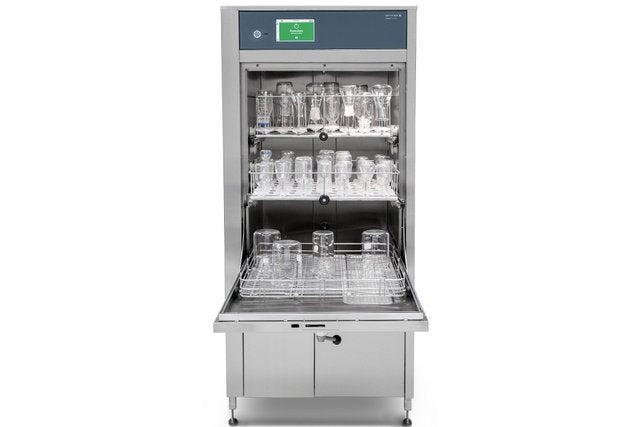

The 1400 LXP supports increased process monitoring for laboratory settings where enhanced control of the cleaning cycles is needed to prove a reliable cleaning result. The 1400 LXP is suitable for labs with high-capacity needs, providing washing on 3 levels with 4 possible rack positions. A dual drying system through both chamber and injector quickly and thoroughly dries both inside and outside the glassware.

Optimize cleaning performance

High performance in a compact footprint - The washer/dryers are designed for optimal cleaning performance. The hydraulic systems deliver a direct fluid path to each individual rack, maximizing water flow and pressure.

Ensure consistent pressure and flow - A tight connection to the hydraulic circuit ensures consistent water pressure and flow on each wash level. Lancer Ultima injector rack connections are strategically located in the rear of the chamber. The door pushes the racks against the circuit to form a secure connection.

Minimize environmental impact - Maximize cleaning performance while minimizing costs and environmental impact. Peristaltic pumps deliver accurate dosing of detergent and acid. Optional conductivity measurement ensures consistent processing with no chemical residues on processed goods.

Complete water coverage for comprehensive cleaning - Get complete coverage of both the exterior and interior of your glassware. Pressurized top and bottom stainless steel spray arms combine with injector washing on two levels for a comprehensive clean.

Process control & operation

One-touch efficiency

Improving reprocessing efficiency with preset and custom cycles. Five preset programs cover the most common routine cleaning applications; these can easily be started with one touch on the icon-based user interface. Cycle parameters can be adjusted and customized to deliver up to 35 custom cycles to meet specific process needs. Different password levels are required for custom programming.

Documented performance

Thorough documentation ensures a reliable cleaning result. A control system monitors several parameters throughout the cycle. The HMI will display an alarm, stopping processes if parameters go outside the pre-set limits. A digital pdf printout gives documented evidence of cleaning process including cycle parameters, cycle number, date and time, phase duration, temperature for each phase, and detergent/acid intake.

Efficient operation

Ensure easy and efficient performance with user-friendly interfaces. Screen menus and graphic user interfaces simplify setup and operations. With the HMI, it's easy to identify active programs, remaining time, warnings, alarms and cycle complete notifications. The HMI also includes functions to simplify calibration and other qualification tasks.

Loading efficiency & construction

Efficient and ergonomically friendly loading

The Getinge Lancer Ultima Freestanding Washer/Dryers make efficient use of interior space to maximize throughput, using only a minimal footprint of your valuable laboratory space. The range allows washing on multiple levels, each connected to the hydraulic circuit. Telescopic runners support high-density loading. When combined with a drop-down door, these features allow for ergonomically friendly loading without removing racks from the chamber.

The most common racks are interchangeable between the upper and lower level, allowing the chamber to be flexibly configured according to the items being processed. All racks are also interchangeable among the 810 LX, and 815 LX models of Lancer Ultima Undercounter Washers, and the 910 LX, and 1300 LX models of Lancer Ultima Freestanding Washers, limiting the need for newly loading equipment when expanding the capacity of your laboratory.

High-quality construction for a long-lasting investment

The Freestanding Laboratory Washer/Dryers have high-quality construction to maximize uptime. The sump, interior chamber, door, and spray arms are constructed of high-grade stainless steel which resists aggressive laboratory chemicals and residues.

Within the chamber, a dual-filter system protects the main pump from debris that could cause damage and costly downtime. The exterior is fully enclosed in stainless steel to resist corrosion, simplify cleaning and protect plumbing and electrical components. An insulated chamber and door confines heat loss and provides retention of heat to minimize energy consumption. The sump design and direct fluid path reduce the water volume needed per fill, minimizing the overall consumption of water and chemicals.

Bioreactor preparation solution

Advances in bioreactor washing

The programmable labware washer with specialty wash rack for the multi-use bioreactor assures thorough cleaning, better reproducibility and reduced labor.

Preparation of multi-use bioreactor

Proper preparation of a multi-use bioreactor will increase productivity, and reproducibility and avoid process interruptions. This requires a thorough cleaning of the vessel and all associated components.
