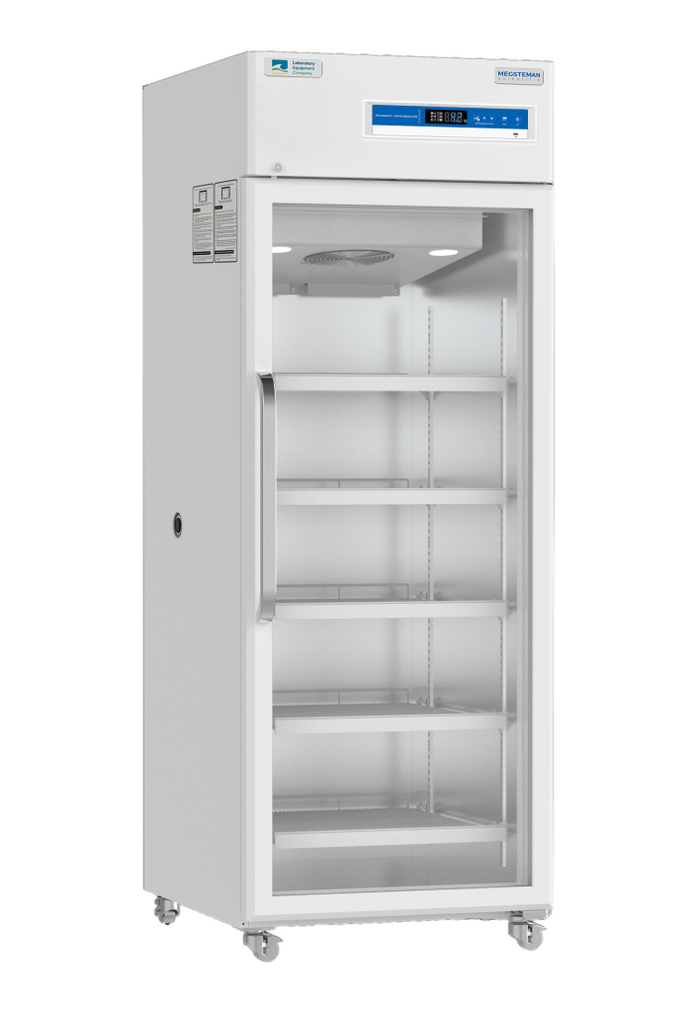

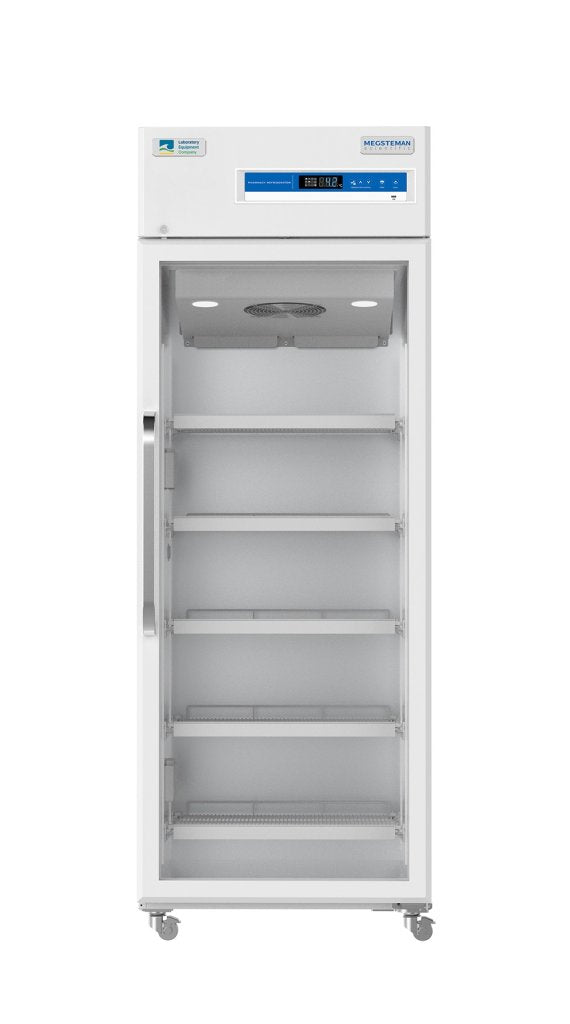

Laboratory Equipment Company - LEC-R2404 - Single Glass Door Refrigerator

Features
The LEC-R2404 Single Glass Door Refrigerator is purpose-built for the storage of sensitive materials across pharmacies, medical offices, laboratories, clinics, and scientific institutions. Constructed to meet strict medical and laboratory-grade standards, it offers the quality and reliability these environments require. The unit provides 24 cu.ft. of interior space with five adjustable shelves, allowing flexible and efficient organization of stored items. Temperature is precisely managed by a high-precision microcomputer control system, keeping conditions consistently within the 2°C to 8°C range. A bright digital display delivers real-time temperature monitoring at an accuracy of 0.1°C.
Advanced Forced-Air Cooling
Delivers consistent, uniform cooling throughout the entire cabinet, ensuring reliable temperature maintenance and superior protection for stored samples.
40%+ Energy Efficiency Improvement
Significantly reduces energy consumption without sacrificing performance, resulting in lower operational costs over time.
Double Paned Glass Door
Prevents condensation buildup on the door seal for a secure, reliable closure that protects stored samples. Dual interior LED lights ensure clear visibility throughout the entire cabinet.
Practical Design & Large Capacity
A dedicated test port enables quick, convenient temperature verification without disturbing stored contents. With 24 cu.ft. of storage capacity, the unit accommodates vaccines, medications, reagents, and a wide range of medical or laboratory materials. The 100% CFC-free design ensures environmentally responsible operation in full compliance with EPA regulations
Microprocessor-Controlled Temperature Management
An advanced microprocessor controller delivers high-precision temperature regulation with exceptional uniformity across all storage zones. A high-efficiency air-cooled condenser and finned evaporator work in tandem to ensure rapid temperature recovery after door openings.
Comprehensive Alarm System
Audible and visual alerts immediately notify staff of any irregularities, including high and low temperature deviations, power failure, low battery, door left ajar, and high ambient temperature conditions.
Specifications
Overview
-
Nominal Height:78.20" (198.63 cm)
-
Nominal Width:28.20" (71.63 cm)
-
Nominal Length:35.00" (88.9 cm)
-
Internal Height:59.70" (151.64 cm)
-
Internal Width:23.80" (60.45 cm)
-
Internal Length:28.50" (72.39 cm)
-
Capacity:24.00
Refrigerator and Performance
-
Electrical:NEMA 5-15 | 115V/15A, 60 Hz
-
Net Weight:309lb
-
Compliance:UL Listed
-
Warranty:3 Years parts and labor, 5 years compressor parts only
-
Sample Storage Operating Range:2°C to 8°C | 35.6°F to 46.4°F
-
Temperature Sensor:Thermistor (NTC)
-
Settable Temperature Range:0°C to 10°C | 32.0°F to 50.0°F
-
Max Ambient Temperature Range:32°C | 89.6°F
-
Factory Pre-set Temperature:5 ºC
-

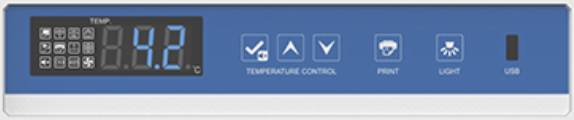

Controller:Microprocessor with LED Digital Display
-
Noise:46.9 dB(A)
-
Energy Consumption :5.0 kWh/day
Refrigeration
-
Compressor:1 pc, reciprocating compressor
-
Cooling Method:Uniform forced air cooling
-
Smart Defrost:Demand initiated defrost with evaporator monitoring + timer assist
-
Refrigerants:SNAP compliant, Natural, R-290
-
Insulation:CFC/HFC free
Construction and Alarms
-
Door Lock:Yes, 2 keys provided
-
Exterior Material:Bright white powder coated steel
-
Interior Material:Painted aluminum
-
Shelves:5 Adjustable coated steel wire| Max Load 70.0 lbs
-
Useable Shelf Dimensions:25.51" W x 23.23" D
-
Access Port:1.0"Ø left side
-
Casters & Leveling Feet:4 swivel casters - 2 with brake
-
Interior Light:Yes, Double LED lights
-
Outer Door:1 Hinged with Dual Paned Insulated Glass
-
Backup Battery for Controller:Yes
-
Remote Alarm Contacts, Outputs:Normally open, Normally closed | DC 30V, 2A | RS485
-
Temperature:High/Low temperature, High ambient temperature, Condensor temp
-
Electrical:Power failure, Low battery, Sensor error
-
System Operation Alarms:Door Ajar, Refrigeration circuit, and Main board
Downloads
-
Sales Sheet LEC-R2404_v3Download
