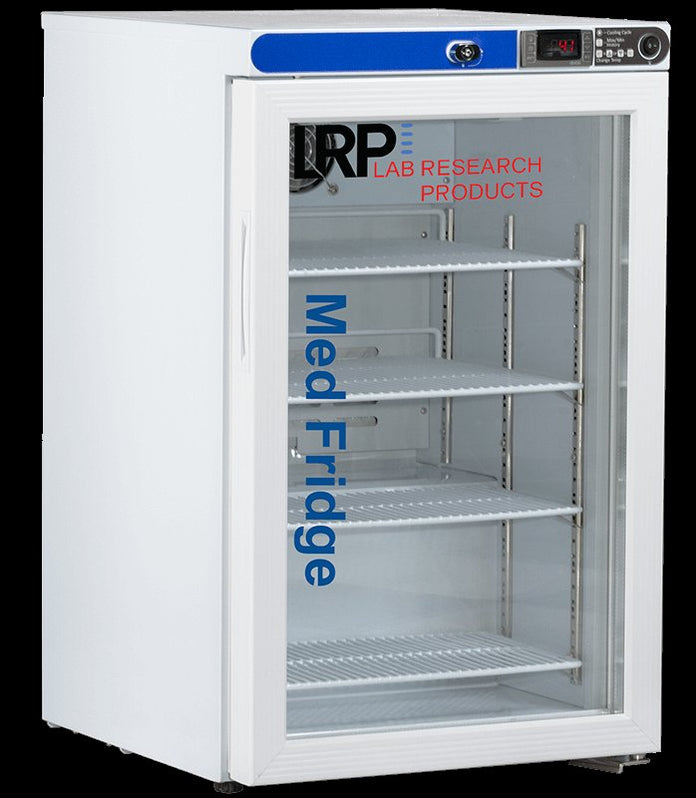

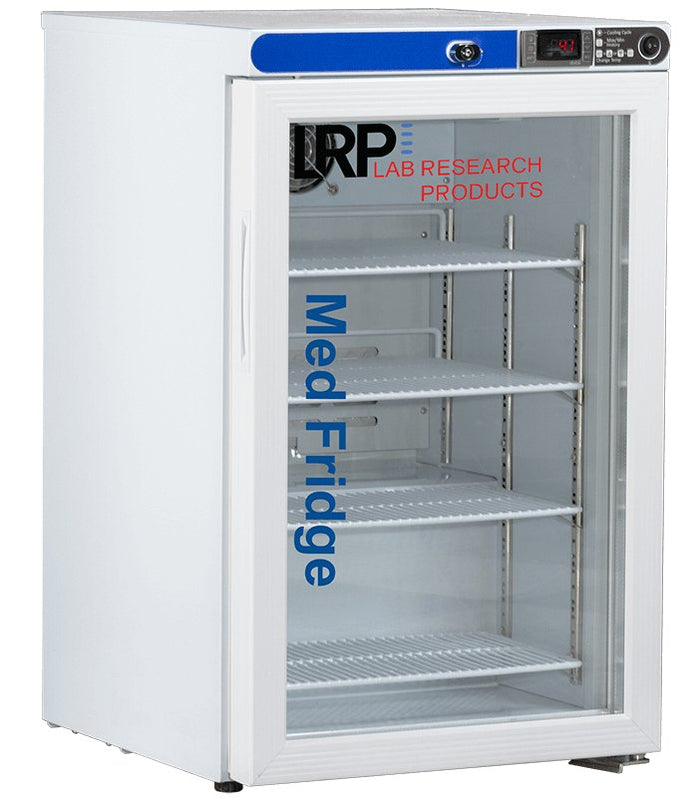

Lab Research Products - PH-LRP-HC-UCFS-0204G - 2.5 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Glass Door Refrigerator Freestanding

Features
The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Note: This unit must have 4" clearance on sides and back for adequate ventilation
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Four adjustable shelves (two large, two small) with guard rail on back to prevent product from being pushed against the back wall
- Back wall evaporator cover
- Forced draft circulation
- Vaccine storage power cord warning label
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- LED light
- Probe access port (3/8")
- Powder coat exterior
- High density urethane foam cabinet and door insulation
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
- Pyxis®, Omnicell® and AcuDose RX® compatible
Temp Controller

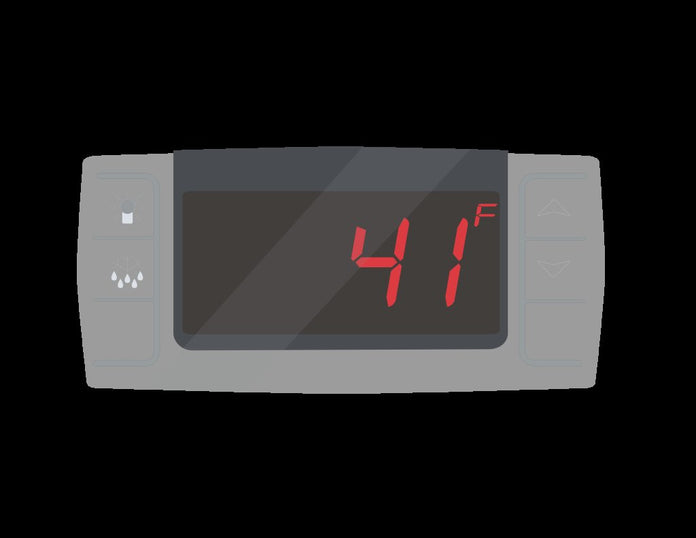

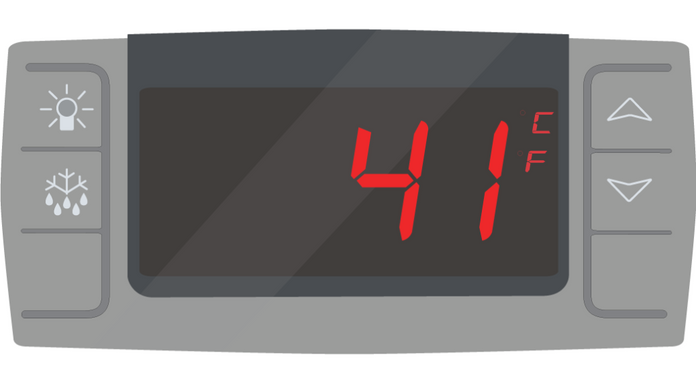

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in sample bottle
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:28.88" (73.36 cm)
-
Nominal Width:17.75" (45.09 cm)
-
Nominal Length:19.5" (49.53 cm)
-
Internal Height:23.25" (59.06 cm)
-
Internal Width:14.25" (36.2 cm)
-
Internal Length:13.25" (33.66 cm)
-
Capacity:2.5
Technical Data
-
Defrost:Cycle
-
Door:1 Glass
-
Int Door:0
-
Shelves:4 Adj
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:0.90
-
Weight:68 lbs.
-
Shipping Weight:97 lbs.
Drawings
-
PH-LRP-HC-UCFS-0204G Ext Cut SheetVisit Link
-
PH-LRP-HC-UCFS-0204G Int Cut SheetVisit Link
Useful Links
-
PH-LRP-HC-UCFS-0204G SpecSheetVisit Link
