The Plus Series Pharmacy/Vaccine Freestanding Undercounter Refrigerators feature a microprocessor temperature controller and display. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.

Features

The Plus Series Pharmacy/Vaccine Freestanding Undercounter Refrigerators feature a microprocessor temperature controller and display. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.



The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.



Note: This unit must have 4" clearance on sides and back for adequate ventilation



Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • Four adjustable shelves (two large, two small) with guard rail on back to prevent product from being pushed against the back wall
  • Back wall evaporator cover
  • Forced draft circulation
  • Vaccine storage power cord warning label
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • LED light
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty



Temp Controller

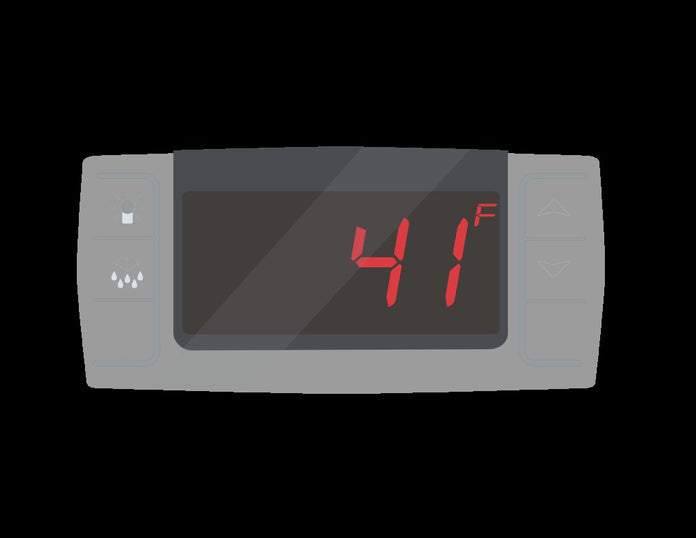

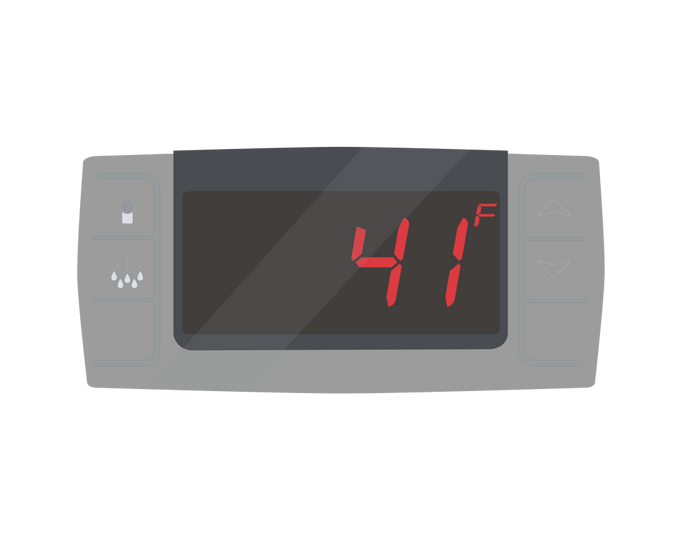

  • Microprocessor temperature controller
  • Digital temperature display
  • Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory, F/C switchable, field installable, and visual & audible temp alarm
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in sample bottle

Specifications

Overview

  • Nominal Height:
    30.75" (78.11 cm)
  • Nominal Width:
    17.75" (45.09 cm)
  • Nominal Length:
    22.75" (57.79 cm)
  • Internal Height:
    23.25" (59.06 cm)
  • Internal Width:
    14.25" (36.2 cm)
  • Internal Length:
    13.25" (33.66 cm)
  • Capacity:
    2.5

Technical Data

  • Defrost:
    Cycle
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    4 Adj
  • Refrigerant:
    R600a
  • H.P.:
    1/8
  • Amps:
    0.90
  • Weight:
    68 lbs.
