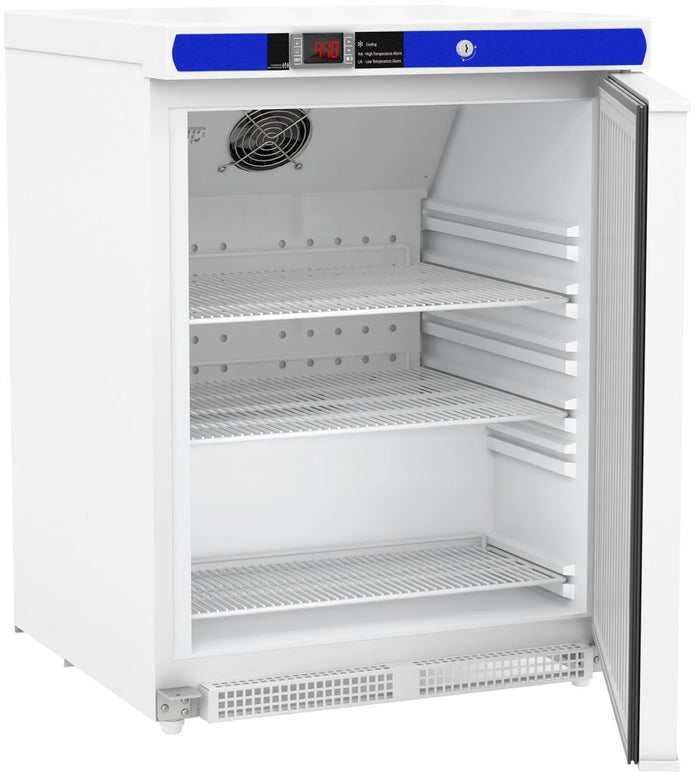

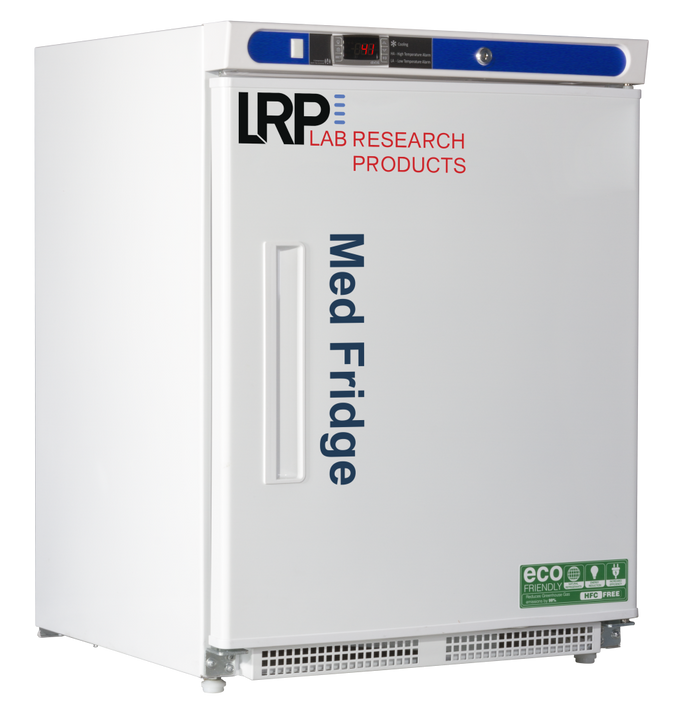

Lab Research Products - PH-LRP-HC-UCBI-0404-ADA - 4.6 Cu. Ft. Plus Series Solid Door Pharmacy/Vaccine Undercounter Refrigerator, Built-In ADA

Features
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Glass, Solid and Stainless Steel models are available in a variety of sizes.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three shelves (two adjustable/one fixed) with guard rail on back to prevent product from pushing against back wall
- Back wall evaporator cover
- Forced draft circulation
- Vaccine storage power cord warning label
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handle
- Leveling legs
- LED interior light
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
- Pyxis®, Omnicell® and AcuDose RX® compatible
- Energy Star Certified
Temp Controller

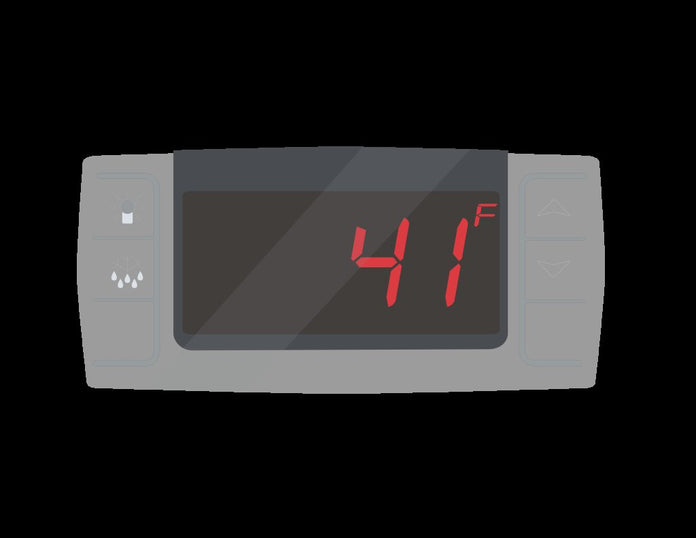

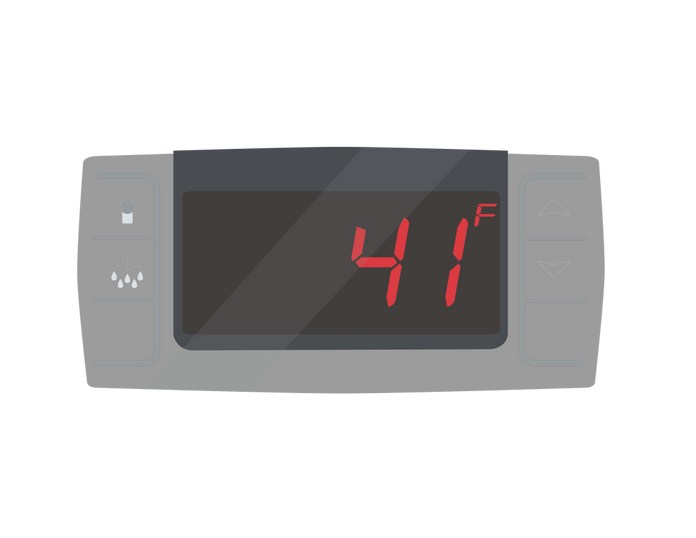

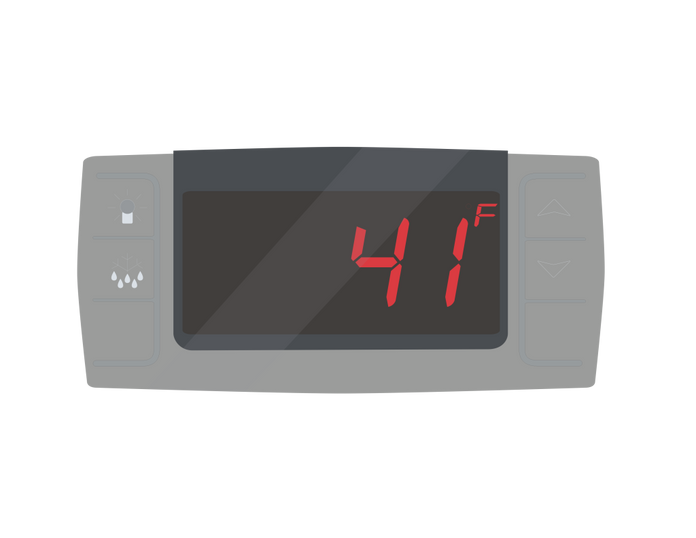

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in glycol bottle
- Adjustable operating temperature range: 36°F - 46°F (2°C - 8°C)
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:31.94" (81.13 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Internal Height:24.38" (61.93 cm)
-
Internal Width:19.25" (48.9 cm)
-
Internal Length:17.5" (44.45 cm)
-
Capacity:4.6
Technical Data
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:2Adj/1 Fixed
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1.74
-
Weight:97 lbs.
-
Shipping Weight:150 lbs.
-
:
Drawings
-
PH-LRP-HC-UCBI-0404-ADA Ext Cut SheetVisit Link
-
PH-LRP-HC-UCBI-0404-ADA Int Cut SheetVisit Link
Useful Links
-
PH-LRP-HC-UCBI-0404-ADA Spec SheetVisit Link
