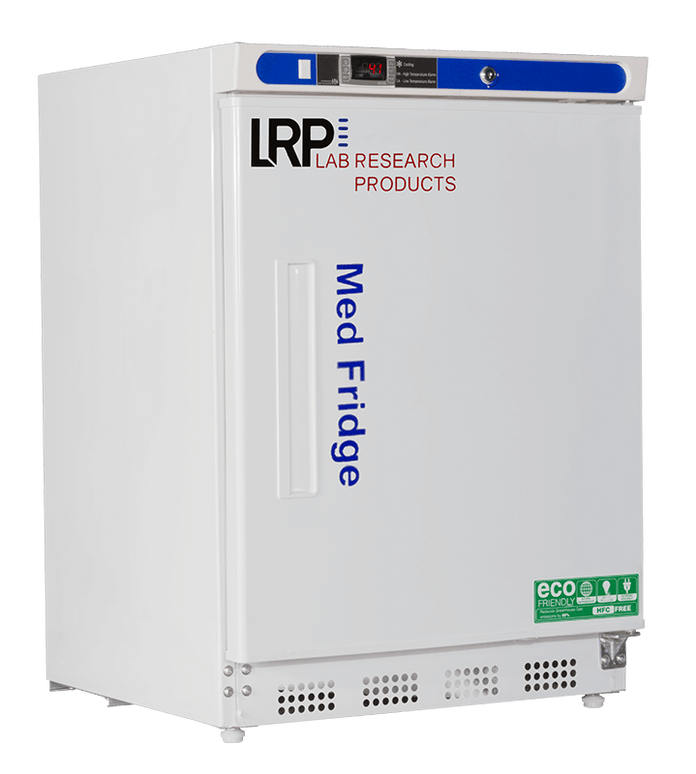

Lab Research Products - PH-LRP-HC-UCBI-0404 - 4.6 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Refrigerator, Built-In

Product Range
| SKU | Name |
|---|---|
| PH-LRP-HC-UCBI-0404G-ADA-LH | Lab Research Products - PH-LRP-HC-UCBI-0404G-ADA-LH - 4.6 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Refrigerator, Built-In, Left Hinged ADA |
| PH-LRP-HC-UCBI-0404G-LH | Lab Research Products - PH-LRP-HC-UCBI-0404G-LH - 4.6 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Refrigerator, Built-In Glass Door, Left Hinged |
| PH-LRP-HC-UCBI-0404G | Lab Research Products - PH-LRP-HC-UCBI-0404G - 4.6 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Refrigerator, Built-In, Glass Door |
| PH-LRP-HC-UCBI-0404-ADA-LH | Lab Research Products - PH-LRP-HC-UCBI-0404-ADA-LH - 4.6 Cu. Ft. Plus Series Solid Door Pharmacy/Vaccine Undercounter Refrigerator, Built-In ADA, Left Hinge |
| PH-LRP-HC-UCBI-0404-LH | Lab Research Products - PH-LRP-HC-UCBI-0404-LH - 4.6 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Refrigerator, Built-In, Left Hinged |
| PH-LRP-HC-UCBI-0404-ADA | Lab Research Products - PH-LRP-HC-UCBI-0404-ADA - 4.6 Cu. Ft. Plus Series Solid Door Pharmacy/Vaccine Undercounter Refrigerator, Built-In ADA |
| PH-LRP-HC-UCBI-0404G-ADA | Lab Research Products - PH-LRP-HC-UCBI-0404G-ADA - 4.6 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Refrigerator, Built-In ADA |
Features
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Glass, Solid and Stainless Steel models are available in a variety of sizes.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three shelves (two adjustable/one fixed) with guard rail on back to prevent product from being pushed against the back wall
- Back wall evaporator cover
- Forced draft circulation
- Vaccine storage power cord warning label
- Recessed door handle
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
Temp Controller

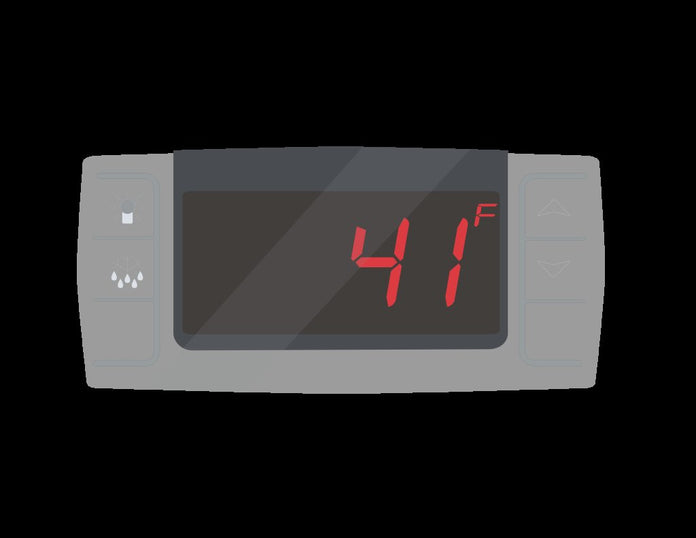

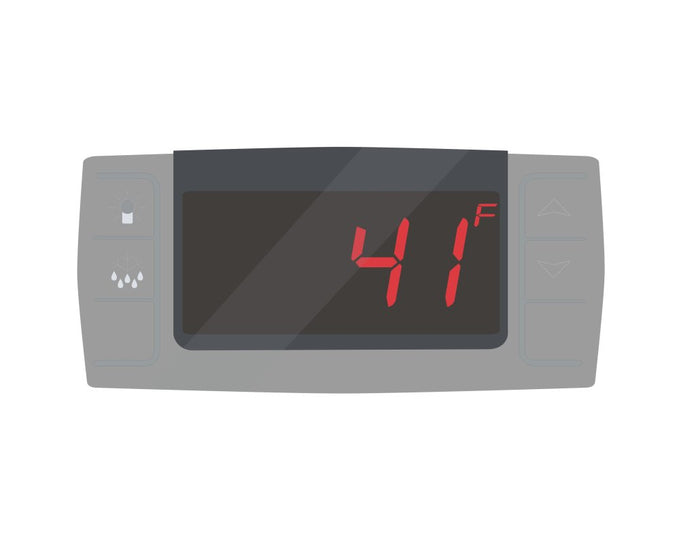

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in sample bottle
- Adjustable operating temperature range: 36°F - 46°F (2°C - 8°C)
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory, F/C switchable, field installable, and visual & audible temp alarm
Specifications
Overview
-
Nominal Height:33.38" (84.79 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Capacity:4.6
Technical Data
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:2Adj/1 Fixed
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1.74
-
Weight:97 lbs.
-
Shipping Weight:137 lbs.
Drawings
-
PH-LRP-HC-UCBI-0404 Ext Cut SheetVisit Link
Useful Links
-
PH-LRP-HC-UCBI-0404 Spec SheetVisit Link
