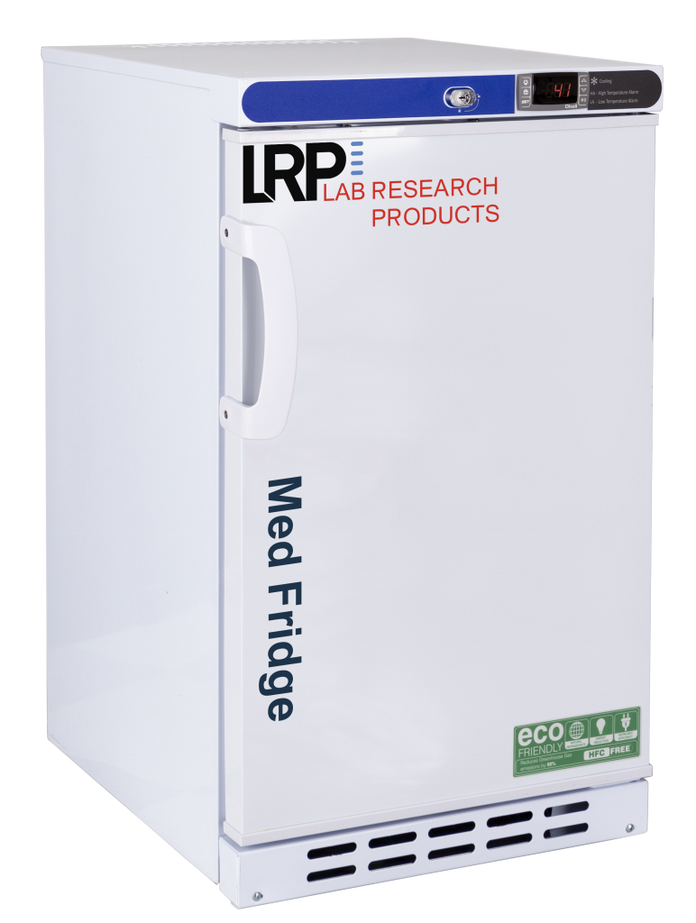

Lab Research Products - PH-LRP-HC-UCBI-0204 - 2.5 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Refrigerator, Built-In, Solid Door

Product Range
| SKU | Name |
|---|---|
| PH-LRP-HC-UCBI-0204-LH | Lab Research Products - PH-LRP-HC-UCBI-0204-LH - 2.5 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Refrigerator, Built-In Solid Door, Left Hinged |
Features
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Four adjustable shelves (two large, two small) with guard rail on back to prevent product from being pushed against the back wall
- Back wall evaporator cover
- Vaccine storage power cord warning label
- Forced draft circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- LED light
- Probe access port (3/8")
- Powder coat exterior
- High density urethane foam cabinet and door insulation
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
- Pyxis®, Omnicell® and AcuDose RX® compatible
Temp Controller
- Microprocessor temperature controller
- Digital temperature display
- Adjustable operating temperature range: 36°F - 46°F (2°C - 8°C)
- Refrigerator/Freezer freestanding thermometer with 3 year certificate of calibration, with min/max memory, °F/°C switchable
- Audible and visual high and low temperature alarms
- 2 probes; 1 in air and 1 in glycol bottle
- Remote alarm contacts
Specifications
Overview
-
Nominal Height:30.75" (78.11 cm)
-
Nominal Width:17.75" (45.09 cm)
-
Nominal Length:22.75" (57.79 cm)
-
Internal Height:23.25" (59.06 cm)
-
Internal Width:14" (35.56 cm)
-
Internal Length:13.25" (33.66 cm)
-
Capacity:2.5
Technical Data
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:4 Adj
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:0.90
-
Weight:69 lbs.
-
Shipping Weight:85 lbs.
Drawings
-
PH-LRP-HC-UCBI-0204 Ext Cut SheetVisit Link
-
PH-LRP-HC-UCBI-0204 Int Cut SheetVisit Link
Useful Links
-
PH-LRP-HC-UCBI-0204 Spec SheetVisit Link
