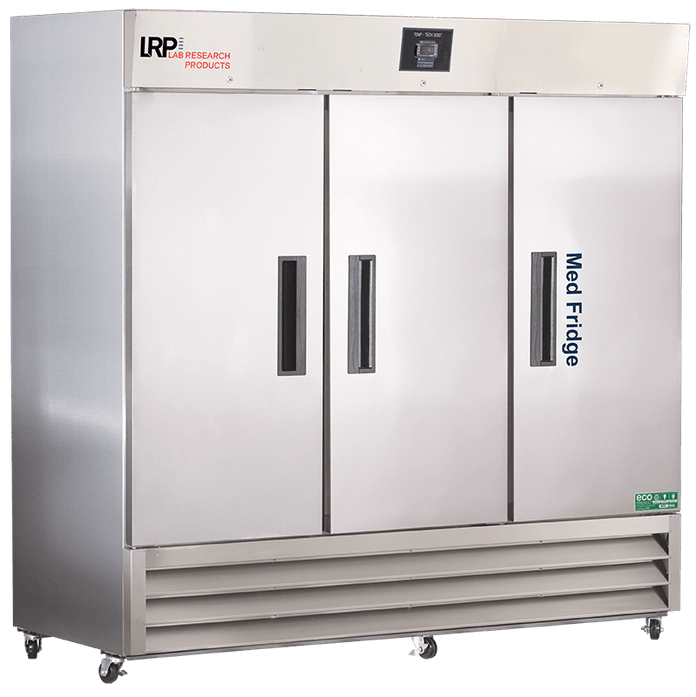

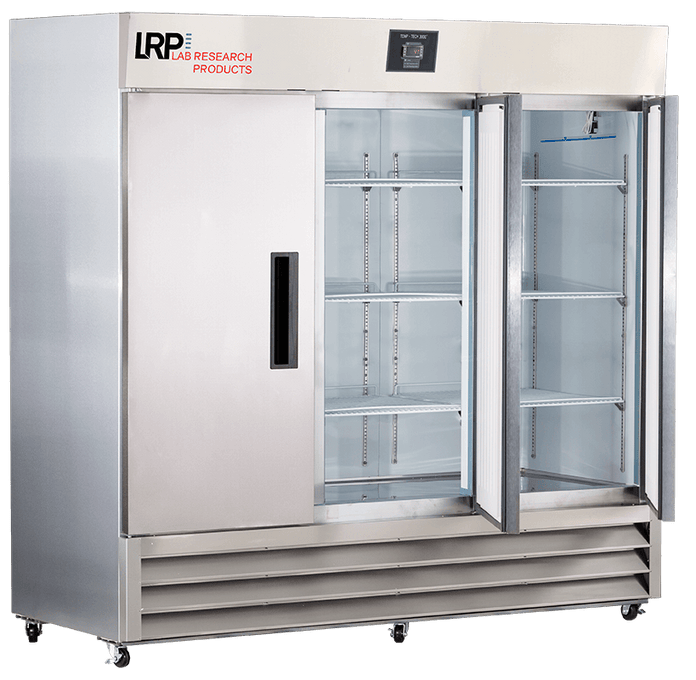

Lab Research Products - PH-LRP-HC-SSP-72 - 72 Cu. Ft. Plus Series Solid Door Stainless Steel Pharmacy Refrigerator

Features
The Plus Series Pharmacy Stainless Steel Refrigerators take a large step forward in performance from past solid door general purpose units, offering a digital temperature display and alarm module coupled with a microprocessor temperature controller.
The Plus Series Pharmacy Stainless Steel Refrigerators feature a microprocessor temperature controller, allowing for precise temperature control, recovery, and maintenance versus mechanical style thermostats.
Critical samples and supplies are security backed with an extensive package of temperature security and alarm features.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three swing solid doors, self-closing, not reversible
- Nine adjustable shelves
- Two probes; one in air and one in sample bottle
- Sensor error alarm
- Continuous product (simulated) temperature display
- Remote alarm contacts
- Forced draft air circulation
- Keyed door locks
- Magnetic door gaskets for positive seal
- Integrated door handle
- LED interior lights are safety shielded and switch controlled
- Probe access port (3/4")
- Stainless steel exterior
- White-powder coated aluminum interior with 304 stainless steel floor
- Easily cleaned smooth interior
- Hydrocarbon natural refrigerant (R290)
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
- Six swivel casters (5 3/4")
Temp Controller
- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- Two probes; one in air and one in sample bottle
- Adjustable operating temperature range: 36°F to 46°F (2°C to 8°C)
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory, F/C switchable, field installable, and visual & audible temp alarm
Specifications
Overview
-
Nominal Height:83.25" (211.46 cm)
-
Nominal Width:81" (205.74 cm)
-
Nominal Length:35.75" (90.81 cm)
-
Internal Height:52.25" (132.72 cm)
-
Internal Width:76" (193.04 cm)
-
Internal Length:24.6" (62.48 cm)
-
Capacity:72
Specifications
-
Defrost:Cycle
-
Door:3 Solid
-
Int Door:0
-
Shelves:9 Adj.
-
Refrigerant:R290
-
H.P.:0.5
-
Amps:7.5
-
Weight:605 lbs.
Drawings
-
PH-LRP-HC-SSP-72 Ext CutsheetVisit Link
-
PH-LRP-HC-SSP-72 Int CutsheetVisit Link
Useful Links
-
PH-LRP-HC-SSP-72 SpecSheetVisit Link
