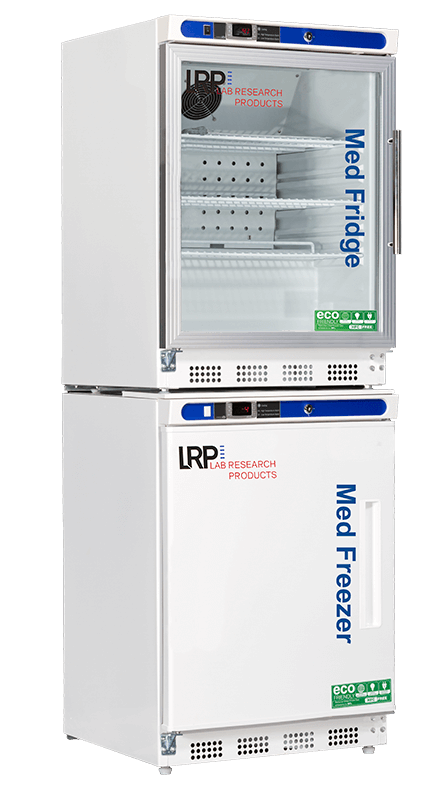

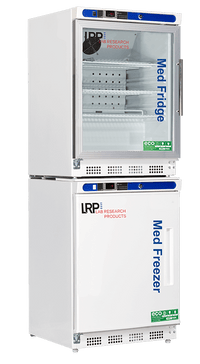

Lab Research Products - PH-LRP-HC-RFC9G-LH - 9 Cu. Ft. Plus Series Pharmacy/Vaccine Refrigerator and Freezer Combination, Left Hinged

Features
The Plus Series Pharmacy Dual Temp Combination Refrigerator/Freezers feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings refrigerators only.
Please note this unit requires 2 outlets.
The RFC-9/9G, RFC-9SS, FRFC10, and RFC-16A models are designed with a "front-breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Two exterior swing doors (glass door refrigerator/solid door freezer), left hinged
 - 2 adjustable/1 fixed shelves refrigerator with guard rail on back to prevent product from being pushed against back wall/2 fixed shelves freezer
 - Back wall evaporator cover, Refrigerator
 - Forced draft circulation, Refrigerator
 - Vaccine storage power cord warning label
 - Keyed door locks
 - Magnetic door gasket for positive seal
 - Recessed door handle, freezer; heavy duty door handle, refrigerator
 - Leveling legs
 - Stacking kit
 - LED interior light, Refrigerator
 - Two probe access ports (3/8"); one, refrigerator/one, freezer
 - White powder coated exterior
 - High density urethane foam cabinet and door insulation
 - HFC-free refrigerant (R600a), foam insulation and packaging
 - Pharmacy refrigerator/freezer toolkit and temperature logs
 - Please note this unit requires 2 outlets.

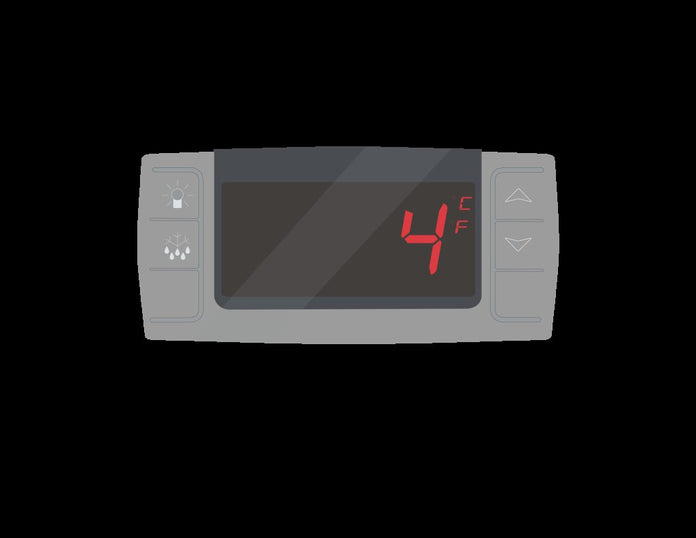

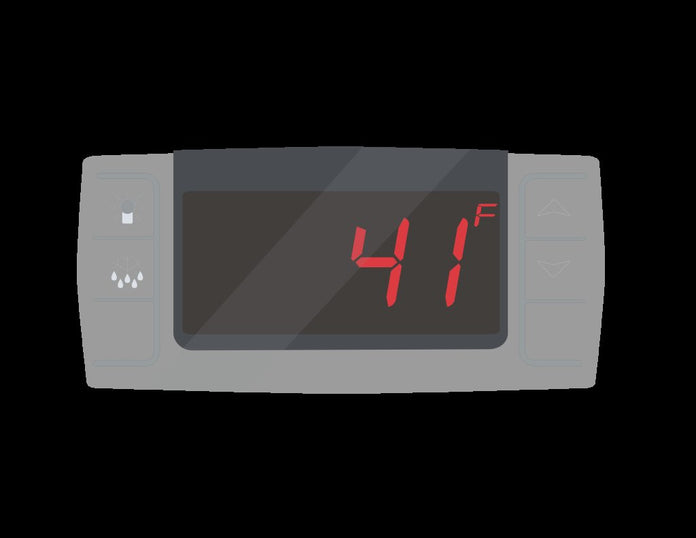

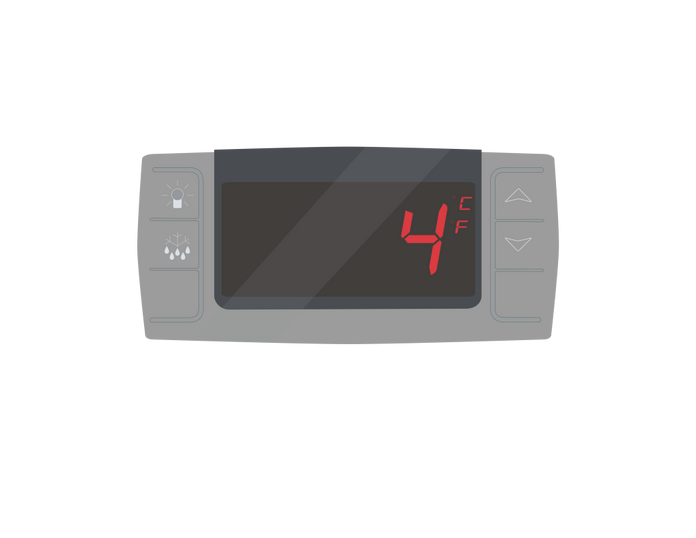

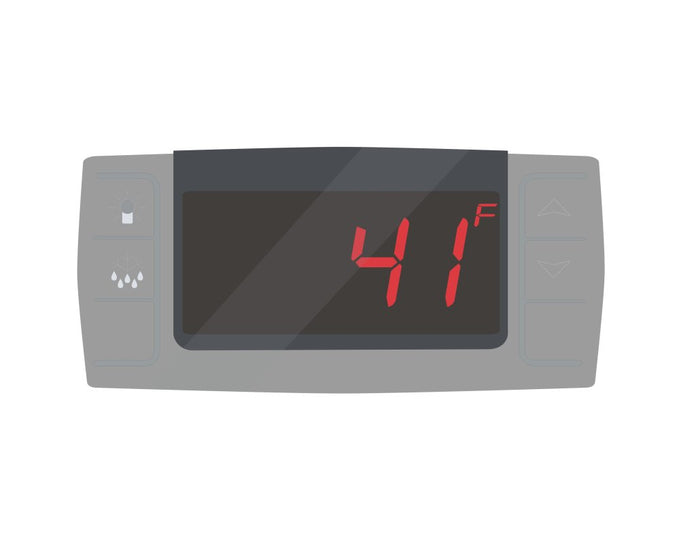

Temp Controller
- Microprocessor temperature controller, refrigerator and freezer
 - Digital temperature display, refrigerator and freezer
 - Adjustable operating temperature range: Refrigerator: 36°F - 46°F (2°C -8°C); Freezer: 5°F - -13°F (-15°C - -25°C)
 - Two Refrigerator/Freezer freestanding thermometers with 3 year certificate of calibration, with min/max memory, °F/°C switchable
 - Audible and visual high and low temperature alarms, refrigerator and freezer
 - Remote alarm contacts, refrigerator and freezer
 - 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer

Specifications
Overview
-
							Nominal Height:66.75" (169.55 cm)
 -
							Nominal Width:23.75" (60.33 cm)
 -
							Nominal Length:25.5" (64.77 cm)
 -
							Capacity:9

Specifications-Refrigerator
-
									Cu. Ft.:4.6
 -
									Defrost:Cycle
 -
									Door:1 Glass LH
 -
									Int Door:0
 -
									Shelves:2 Adj./1 Fixed
 -
									Interior Dim. W:19.25"
 -
									Interior Dim. D:17.25"
 -
									Interior Dim. H:24.50"
 -
									Refrigerant:R600a
 -
									H.P.:0.12
 -
									Amps:1.74
 -
									Weight:200 lbs.

Specifications-Freezer
-
									Cu. Ft.:4.2
 -
									Defrost:Manual
 -
									Door:1 Solid LH
 -
									Int Door:0
 -
									Shelves:2 Fixed
 -
									Interior Dim. W:19"
 -
									Interior Dim. D:17.25"
 -
									Interior Dim. H:24.50"
 -
									Refrigerant:R600a
 -
									H.P.:0.12
 -
									Amps:1.5
 -
									Weight:200 lbs.

Drawings
-
										PH-LRP-HC-RFC9G-LH Ext CutsheetVisit Link
 -
										PH-LRP-HC-RFC9G-LH Int CutsheetVisit Link

Useful Links
-
										PH-LRP-HC-RFC9G-LH SpecSheetVisit Link
