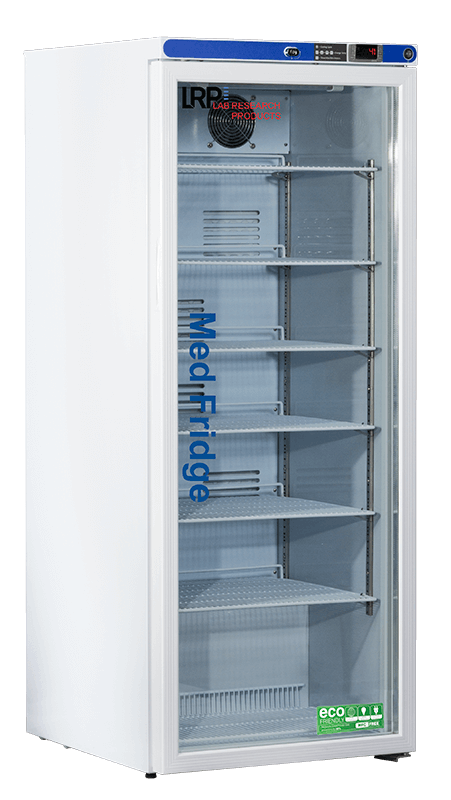

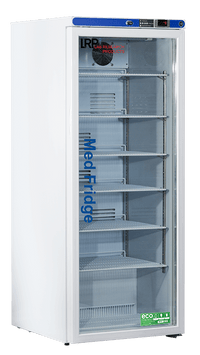

Lab Research Products - PH-LRP-HC-10PG - 10.5 Cu. Ft. Plus Series Pharmacy/Vaccine Compact Refrigerator

Features
These models are just the right size when space is a concern. They come standard with a microprocessor temperature controller, digital temperature display, audible and visual high and low temperature alarms, and remote alarm contacts in addition to many other features.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Freestanding models require 4" of clearance around the back and sides of the unit for proper ventilation. Improper installation will void the warranty and may lead to temperature maintenance issues, overheating, and possible failure.
Details
- Six adjustable shelves with guard rail on back to prevent product from being pushed against back wall
- Bottom footed shelf to allow air circulation
- Back wall evaporator cover
- Forced draft circulation
- Vaccine storage power cord warning label
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- LED interior light
- Probe access port (3/8")
- Powder coat exterior
- High density urethane foam cabinet insulation
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Pyxis®, Omnicell® and AcuDose RX® compatible
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
Temp Controller

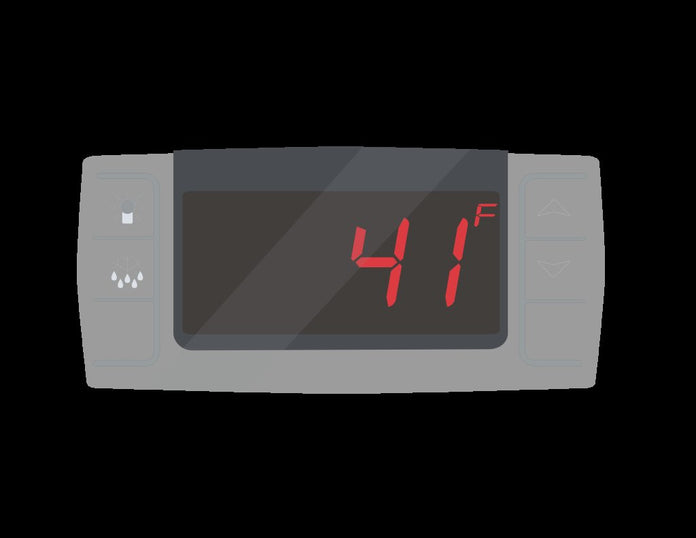

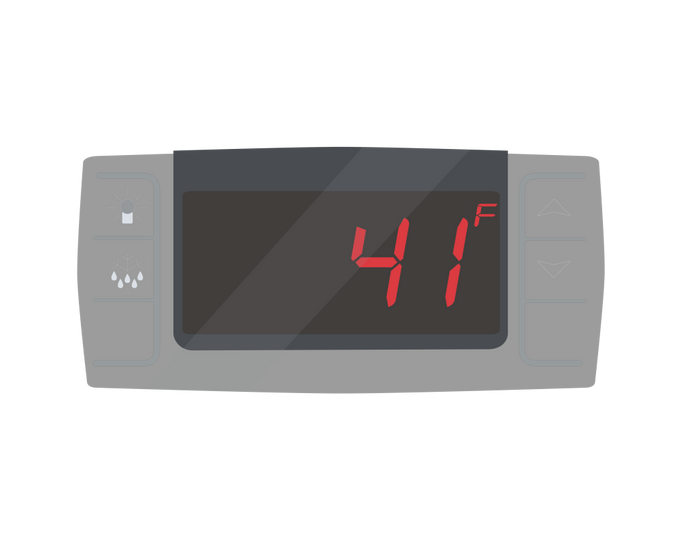

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- Two probes; one in air and one in sample bottle
- Adjustable operating temperature range: 36°F - 46°F (2°C -8°C)
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:59" (149.86 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:26.5" (67.31 cm)
-
Internal Height:53.5" (135.89 cm)
-
Internal Width:19.8" (50.29 cm)
-
Internal Length:18.3" (46.48 cm)
-
Capacity:10.5
Technical Data
-
Defrost:Cycle
-
Door:1 Glass
-
Int Door:0
-
Shelves:6 Adj.+Footed Bottom
-
Refrigerant:R600a
-
H.P.:0.12
-
Amps:2.3
-
Weight:175 lbs.
-
Shipping Weight:183 lbs.
Drawings
-
PH-LRP-HC-10PG Ext CutsheetVisit Link
-
PH-LRP-HC-10PG Int CutsheetVisit Link
Useful Links
-
PH-LRP-HC-10PG SpecSheetVisit Link
