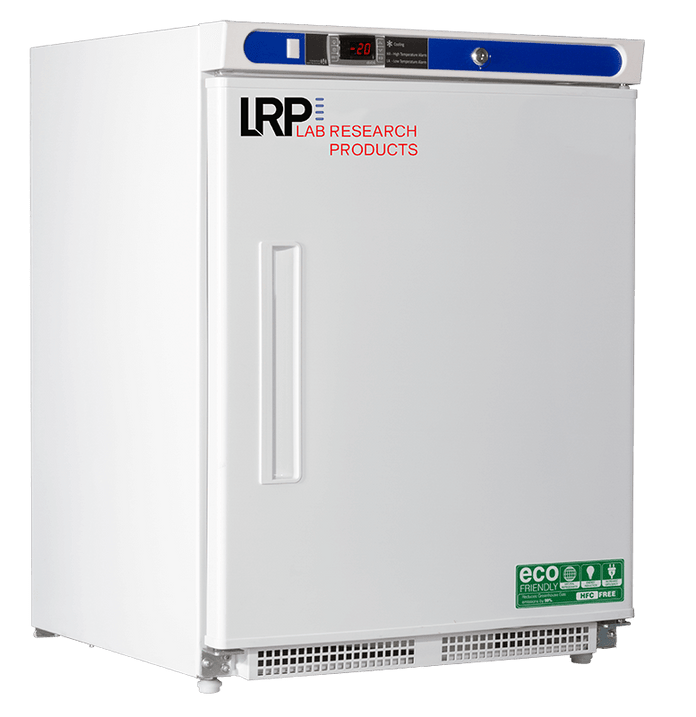

Lab Research Products - LRP-HC-UCBI-0420-ADA - 4.2 Cu. Ft. Plus Series Undercounter Freezer, Built-In ADA

Features
The Plus Series Free Standing Undercounter Freezers also feature a microprocessor temperature controller and display.
The freezer units feature either an automatic or manual defrost operating system. For manual defrost units, periodic defrosting is required.
Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Details
- Two fixed shelves
- Keyed door lock
- Magnetic door gasket for positive seal
- Recessed door handle
- Leveling legs
- Probe access port (3/8")
- Powder coat exterior
- High density urethane foam cabinet and door insulation
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
Temp Controller

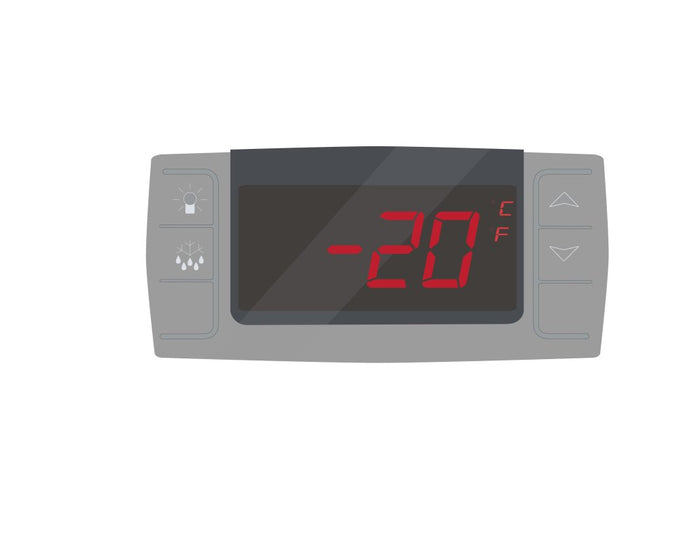

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- 2 probes; 1 in air and 1 in sample bottle
- Remote alarm contacts
- Adjustable operating temperature range: -15°C - -25°C
Specifications
Overview
-
Nominal Height:31.94" (81.13 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Internal Height:24" (60.96 cm)
-
Internal Width:19" (48.26 cm)
-
Internal Length:17.25" (43.82 cm)
-
Capacity:4.2
Technical Data
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Fixed
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1.5
-
Weight:133 lbs.
Drawings
-
LRP-HC-UCBI-0420-ADA Ext Cut SheetVisit Link
-
LRP-HC-UCBI-0420-ADA Int Cut SheetVisit Link
Useful Links
-
LRP-HC-UCBI-0420-ADA Spec SheetVisit Link
