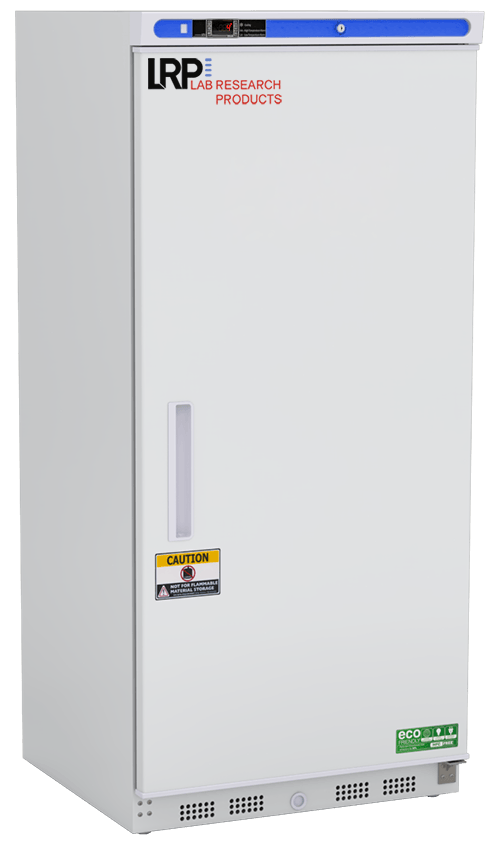

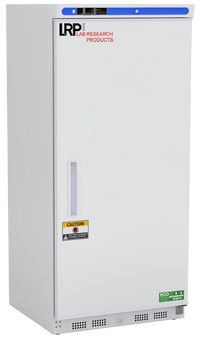

Lab Research Products - LRP-HC-RFP-17 - 17 Cu. Ft. Basic Series Laboratory Refrigerator with Natural Refrigerants

Lab Research Products - LRP-HC-RFP-17 - 17 Cu. Ft. Basic Series Laboratory Refrigerator with Natural Refrigerants
Lab Research Products - LRP-HC-RFP-17 - 17 Cu. Ft. Basic Series Laboratory Refrigerator with Natural Refrigerants

Lab Research Products - LRP-HC-RFP-17 - 17 Cu. Ft. Basic Series Laboratory Refrigerator with Natural Refrigerants

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Basic Series Laboratory Refrigerators are purpose built for scientific and research applications. These units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.

Features

Models are ETL Listed.



Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines



Details

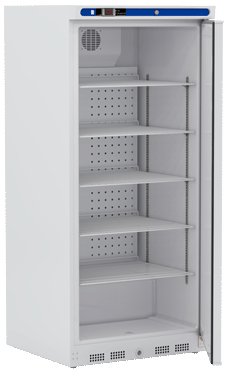

  • 4 full adjustable shelves / 1 half adjustable shelf
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • One probe access port (3/4")
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • Natural, Hydrocarbon Refrigerant (R600a)
  • One year parts and labor warranty, plus additional Four year compressor parts warranty
  • Energy Star Certified



Temp Controller



  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 1°-10°C
  • Digital Temperature Display
  • Sample simulated digital temperature display; 1° Resolution
  • Audible and visual high/low temperature alarms
  • Remote alarm contacts

Specifications

Overview

  • Nominal Height:
    67.75" (172.09 cm)
  • Nominal Width:
    30.75" (78.11 cm)
  • Nominal Length:
    28.63" (72.72 cm)
  • Internal Height:
    58.5" (148.59 cm)
  • Internal Width:
    26.25" (66.68 cm)
  • Internal Length:
    20.88" (53.04 cm)
  • Capacity:
    17

General Description and Application

  • Door:
    Right Hinged
  • Shelves:
    5 adjustable shelves
  • Freezer Compartments:
    Non-applicable
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Forced draft air circulation
  • External Probe Access:
    Rear wall port (3/4" dia.)
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed Door Lock
  • Shipping Weight (lbs):
    250
  • Rated Amperage:
    2.5 Amps
  • Power Plug/Power Cord:
    NEMA 5-15 Plug, 8-10 ft. typical, conforms to UL471 requirements
  • Facility Electrical Requirement:
    115V, 60 Hz
  • Agency Listing and Certification:
    ETL, C-ETL listed, Energy star certified

Refrigeration System

  • Refrigerant:
    R600a
  • Defrost:
    Cycle

Controller, Configuration, Alarms and Monitoring

  • Controller Technology:
    Microprocessor temperature controller with digital temperature display, °C/°F switchable
  • Display Technology :
    Standard Digital Temperature Display
  • Adjustable Temperature Range:
    1°C to 10°C
  • External Alarm Connection:
    State switching remote alarm contacts
  • Alarms:
    Audible and visual high/low temperature alarms
  • Controller probe:
    2 Probes; 1 in air and 1 in sample bottle
  • Disclaimers:
    Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
