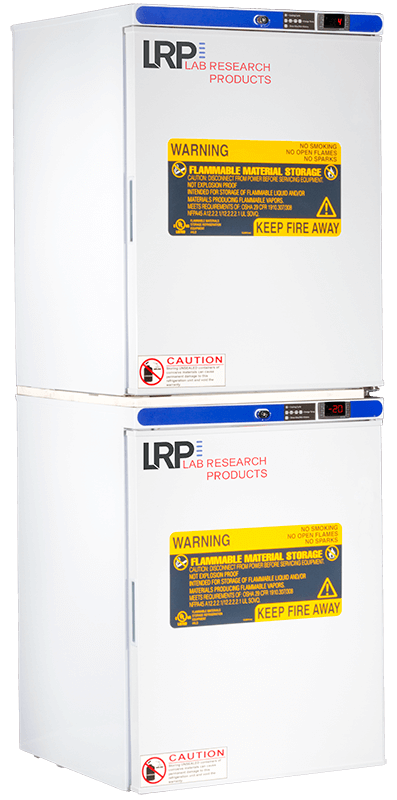

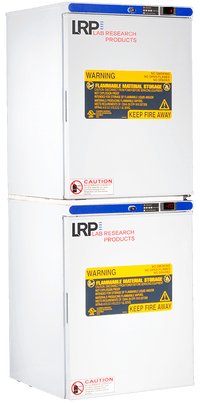

Lab Research Products - LRP-HC-FRFC10 - 9 Cu. Ft. Basic Series Flammable Refrigerator & Freezer Combination

Features
These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.
The Basic Series Dual Temp Combination Refrigerator/Freezers feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings refrigerators only.
Please note this unit requires 2 outlets.
The RFC-9/9G, RFC-9SS, FRFC10, and RFC-16A models are designed with a "front-breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- 3 adjustable shelves refrigerator/2 fixed shelves (with 3 removable baskets) freezer
- Keyed door locks
- Magnetic door gasket for positive seal
- Recessed door handle, refrigerator and freezer
- Leveling legs
- Stacking kit
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty
Temp Controller

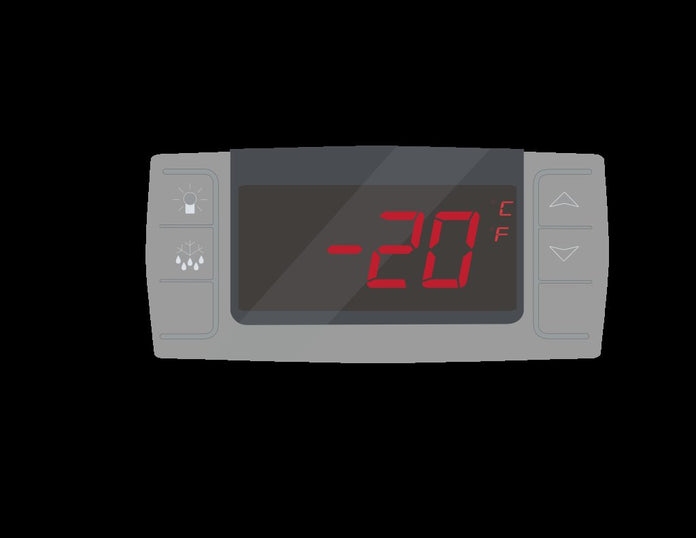

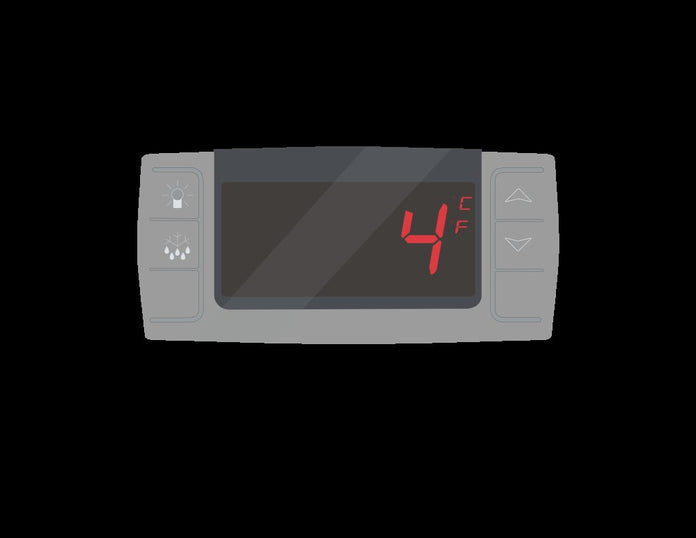

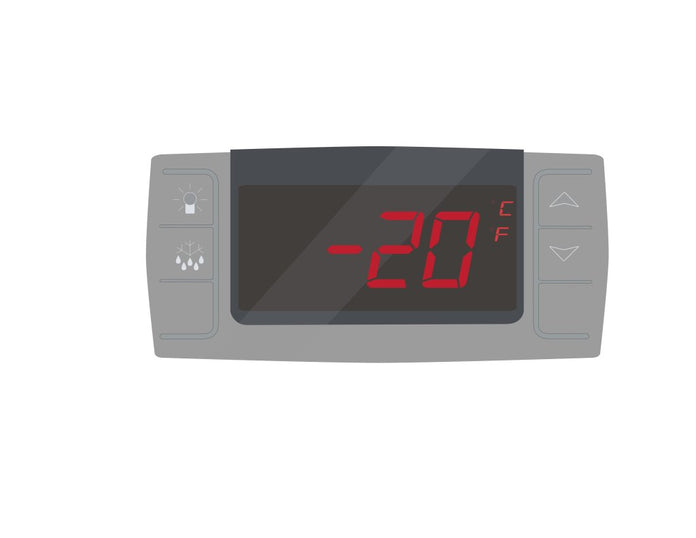

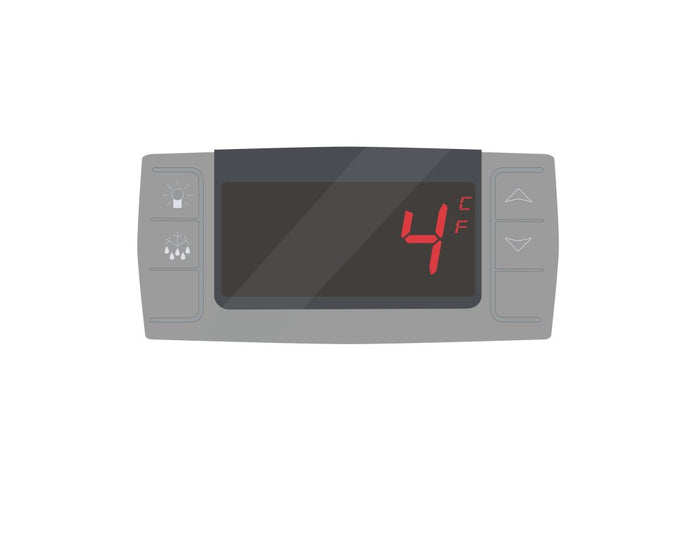

- Microprocessor temperature controller, refrigerator and freezer
- Digital temperature display, refrigerator and freezer
- Adjustable operating temperature range: Refrigerator: 1°C to 10°C; Freezer: -15°C to -25°C
- Audible and visual high and low temperature alarms, refrigerator and freezer
- 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
- Remote alarm contacts, refrigerator and freezer
Specifications
Overview
-
Nominal Height:65.38" (166.07 cm)
-
Nominal Width:23.63" (60.02 cm)
-
Nominal Length:24.25" (61.6 cm)
-
Capacity:9
Technical Data - Refrigerator
-
Cu. Ft:5
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:3 Adj.
-
Refrigerant:R600a
-
H.P.:1/9
-
Amps:1.2
-
Weight:175 lbs.
Technical Data - Freezer
-
Cu. Ft:4
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Fixed
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1.4
-
Weight:175 lbs.
Drawings
-
LRP-HC-FRFC10 Ext Cut SheetVisit Link
Useful Links
-
LRP-HC-FRFC10 Spec SheetVisit Link
