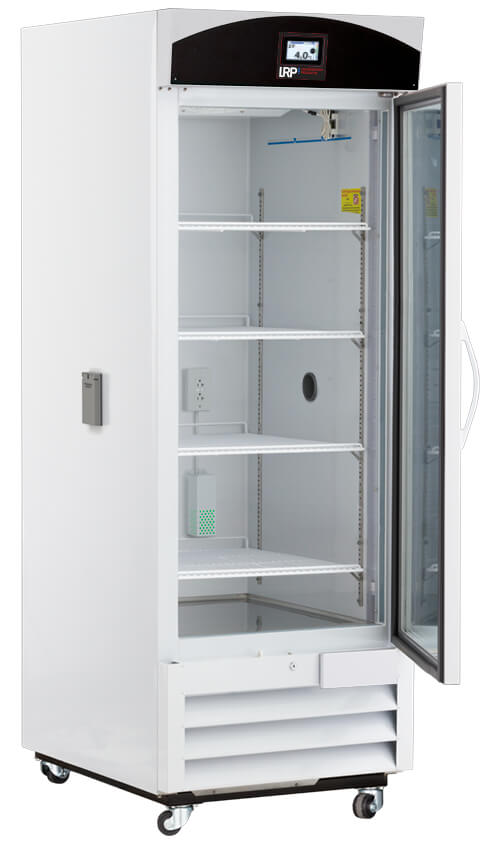

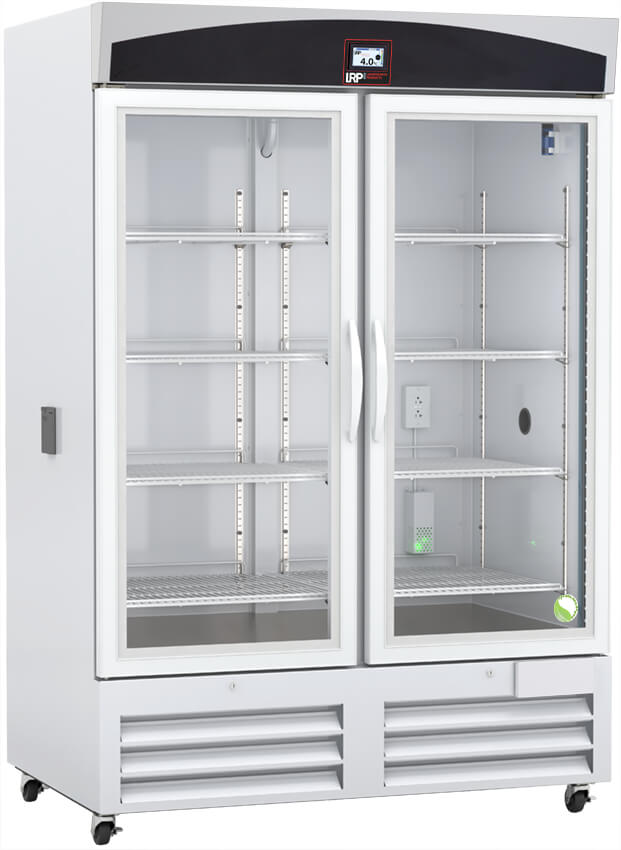

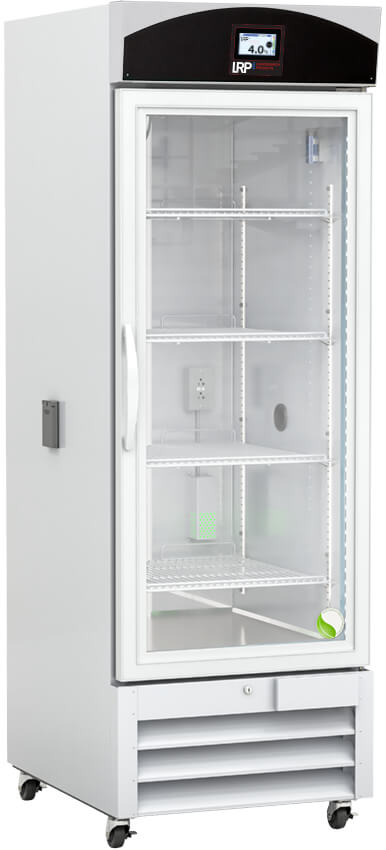

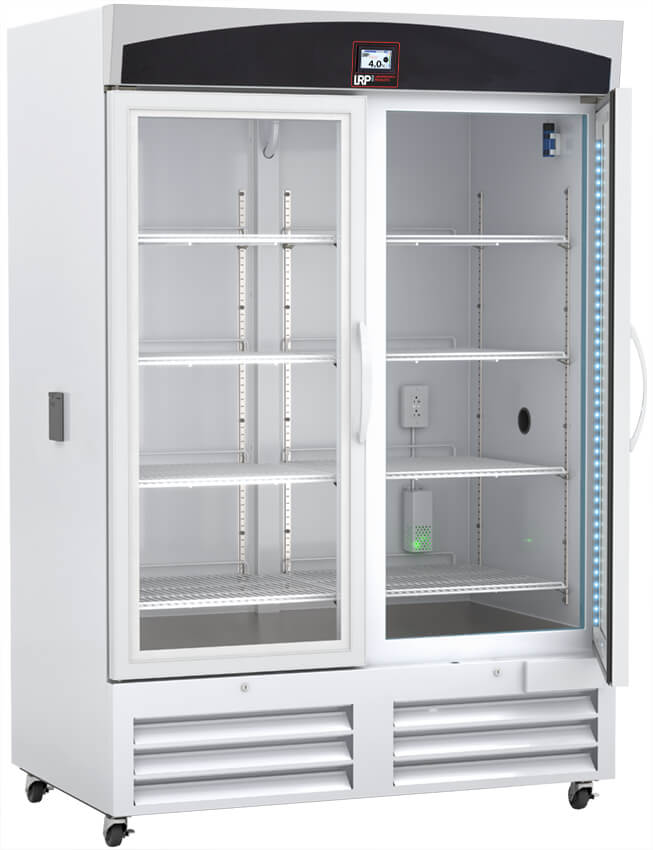

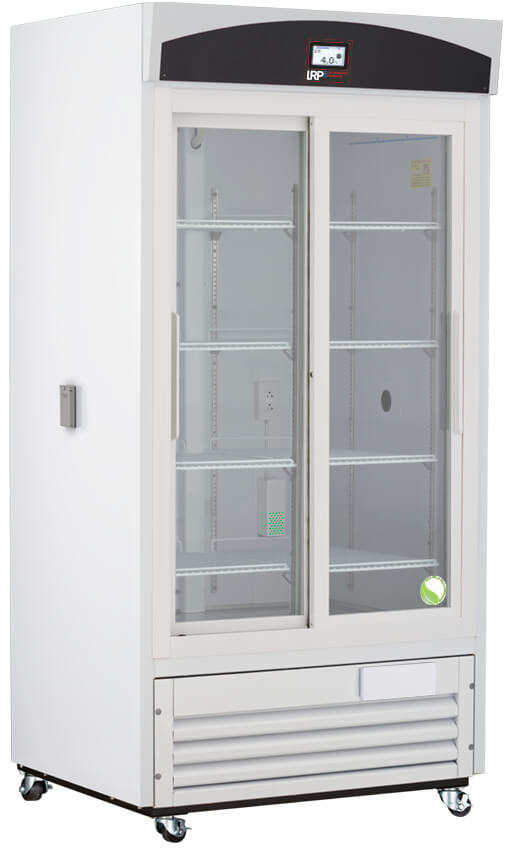

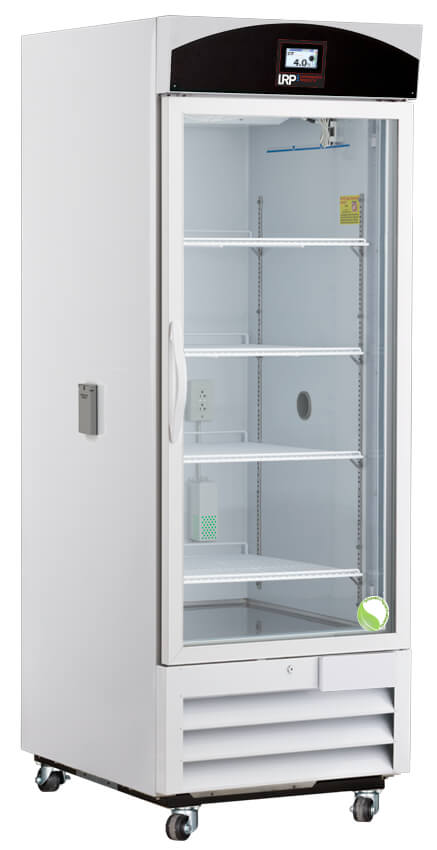

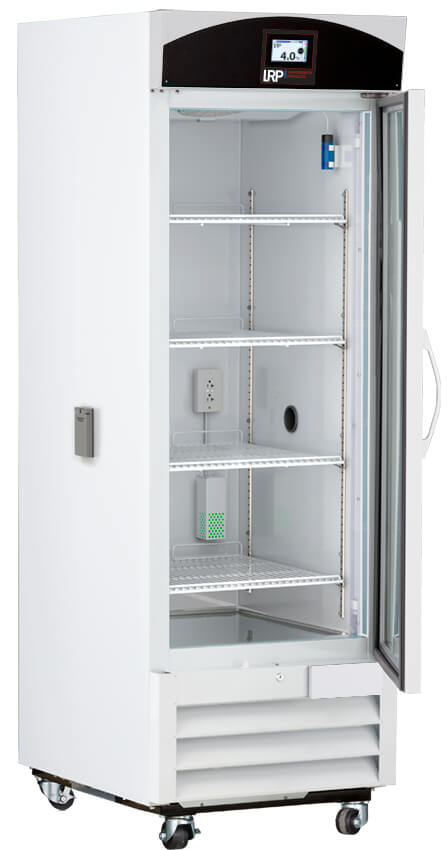

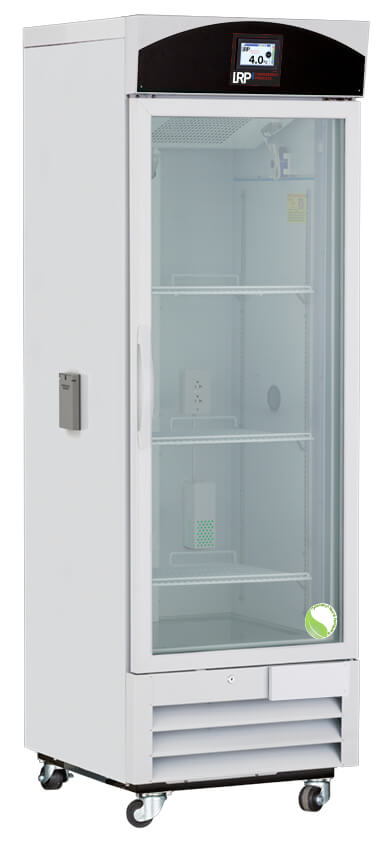

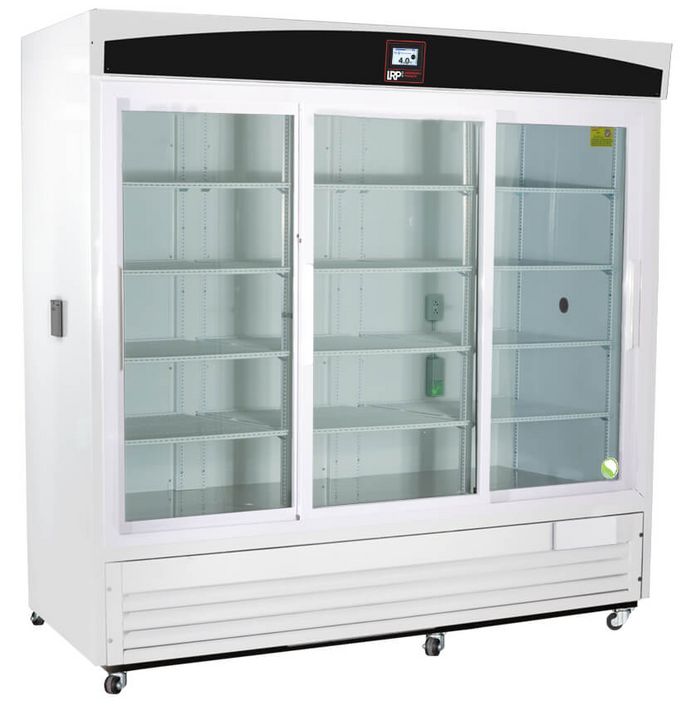

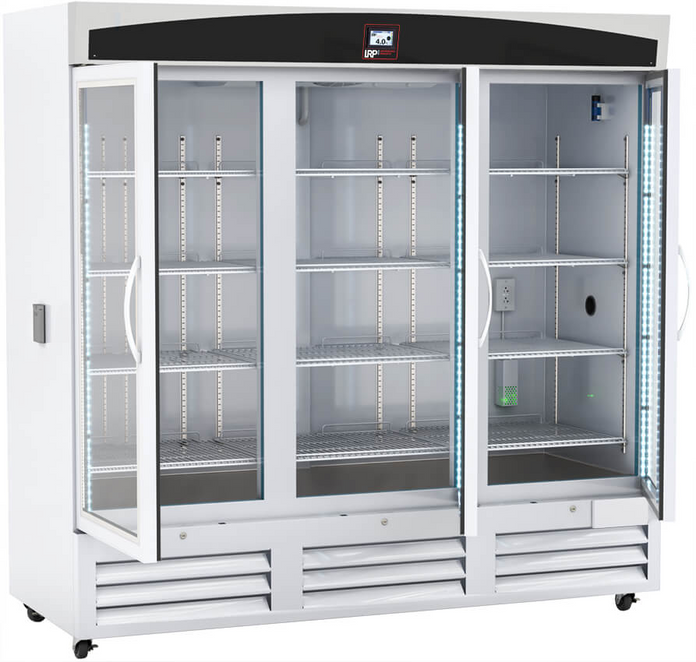

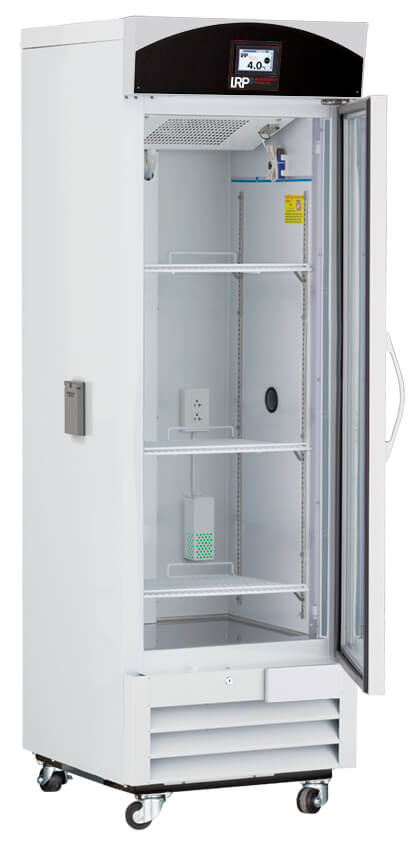

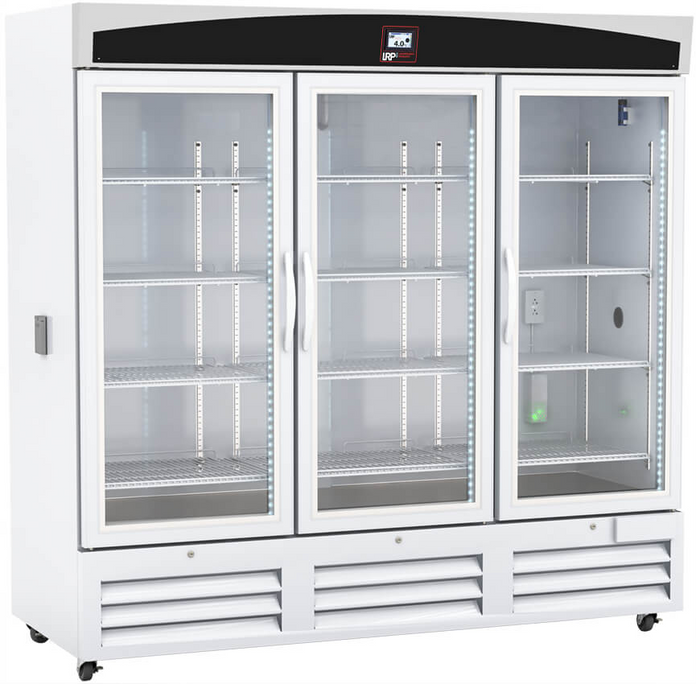

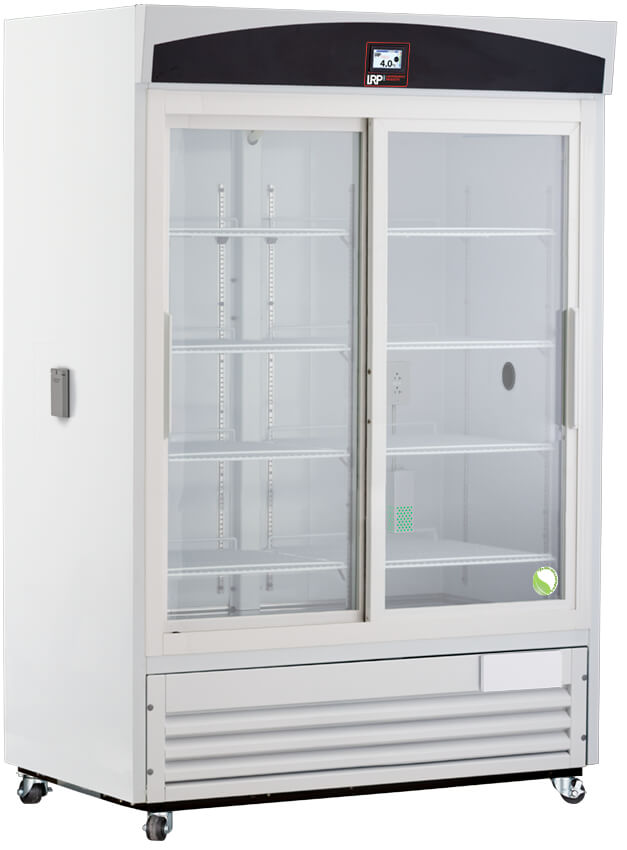

The TempLog Plus Series Glass Door Chromatography Refrigerators are purpose built for scientific and medical applications. Units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings. An automatic cycle-defrost design prevents product damaging temperature spikes

The all-new Touch Screen temperature display and alarm module offers the latest in advanced temperature control and data logging. Industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller. Real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual high and low temperature alarms, along with power outage, sensor error and door ajar alarms, remote alarm dry contacts, a 4-20mA output and an access port are provided to simplify connections to existing facility monitoring systems. A USB port is provided for easy transfer as well as software updates.

Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Details

• Forced draft air circulation
• Keyed door lock
• One GFCI protected duplex electrical outlet
• Two 2" access ports with spring-loaded, self-closing gasketed metal covers
• Magnetic door gasket for positive seal
• Heavy duty door handle
• LED interior lights are safety shielded and switch controlled
• Swivel Casters (3 ½")
• Probe access port (3/4")
• Advanced hydrocarbon detector
• White powder-coated steel exterior and interior
• High density urethane foam cabinet insulation
• Hydrocarbon, natural refrigerant (R290)
• Three year parts and labor warranty, plus an additional two year compressor parts warranty

Temp Controller

• Microprocessor temperature controller
• Adjustable operating temperature range: 1°C - 10°C
• Touch Screen Digital Temperature Display and Alarm Module
• Password-protected control panel
• Sample simulated digital temperature display, .1° Resolution, adjustable temperature display in Celsius or Fahrenheit
• Active temperature scale bar display
• Resettable 1-point min/max history and digital 24-hour temperature chart Temperature data logging
• USB port for data transfer and software updates
• Real-time operational display clock
• 4-20mA output
• Electronic troubleshooting guide
• Electronic QR Code to access Owner’s Manual & technical support contact info Adjustable alarm volume
• Audible and visual high/low temperature alarms
• 2 probes, 1 in air and 1 in sample bottle
• Sensor error alarm, power failure alarm, door ajar alarm, low battery alarm Operation indicator
• Alarm validation (audible, visual, and remote alarm) and alarm mute with ring back
• Remote alarm contacts
