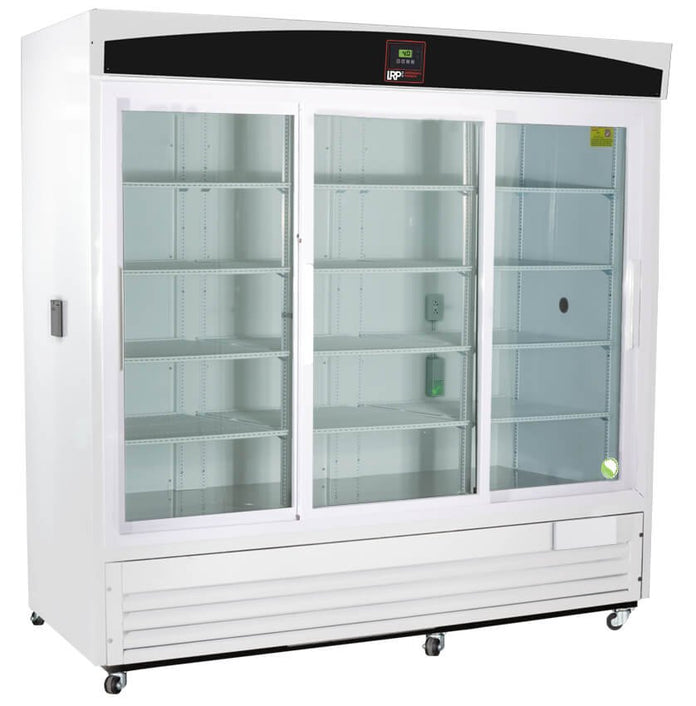

Lab Research Products - LRP-HC-CP-69 - 69 Cu. Ft. Plus Series Sliding Glass Door Chromatography Refrigerator

Features
Standard Features Include:
- Microprocessor Temperature Controller with digital display for precise temperature settings and maintenance
- Security Alarms with battery back-up that include: High & Low Temperature, power failure with non-volatile temperature memory, door ajar, sensor error, and remote contacts to facilitate attachment to central monitoring system
- Interior GFCI protected duplex electrical outlet, two each 2" access ports, 4" swivel casters
- Two-year parts and labor warranty and an additional three-year compressor parts warrant
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three sliding glass doors, self-closing
- Twelve adjustable shelves (adjustable in ½" increments)
- Forced draft air circulation
- Keyed door lock
- One GFCI protected duplex electrical outlet
- Two 2" access ports with spring-loaded, self-closing gasketed metal covers
- Magnetic door gasket for positive seal
- Heavy duty door handle
- LED interior lights are safety shielded and switch controlled
- Swivel Casters (3 ½")
- Probe access port (¾")
- Advanced hydrocarbon detector
- White powder-coated steel interior and exterior
- High density urethane foam cabinet insulation
- Hydrocarbon, natural refrigerant (R290)
- Two-year parts and labor warranty, plus an additional three-year compressor parts warranty
Temp Controller
- Microprocessor Temperature Controller
- Adjustable operating temperature range: 1°-10°C
- Digital Temperature Display and Alarm Module
- Sample simulated digital temperature display; .1° Resolution
- Adjustable temperature display in Celsius or Fahrenheit
- Audible and visual high/low temperature alarms
- Sensor error alarm
- Power failure alarm
- Resettable 1-point Min/Max History
- Remote alarm contacts
- 2 probes; 1 in air and 1 in sample bottle
- Alarm validation (audible, visual, and remote alarm)
- Alarm mute with ring back
Specifications
Overview
-
Nominal Height:33.25" (84.46 cm)
-
Nominal Width:81.75" (207.65 cm)
-
Nominal Length:82.5" (209.55 cm)
-
Internal Height:24.75" (62.87 cm)
-
Internal Width:52.25" (132.72 cm)
-
Internal Length:76" (193.04 cm)
-
Capacity:69
Technical Data
-
Defrost:Cycle
-
Door:3 Glass (Sliding)
-
Int Door:0
-
Shelves:12 Adj.
-
Refrigerant:R290
-
H.P.:1/2
-
Amps:7.5
-
Weight:688 lbs.
Drawings
-
LRP-HC-CP-69 Ext Cut SheetVisit Link
-
LRP-HC-CP-69 Int Cut SheetVisit Link
Useful Links
-
LRP-HC-CP-69 Spec SheetVisit Link
