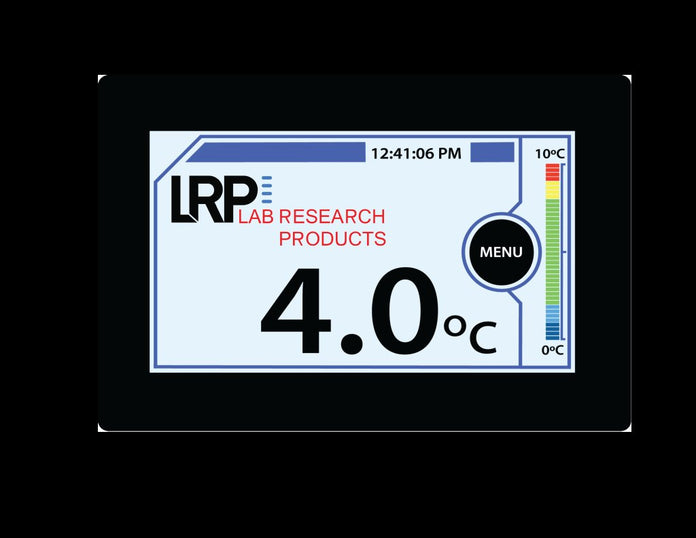

The all-new Touch Screen temperature display and alarm module offers industry-leading product security real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual alarms, remote alarm contacts, a 4-20mA output and an access port. A USB port is provided for easy data transfer.

Details

• 30 Cu. Ft. capacity
• One solid swing door, right hinged, not reversible
• Five adjustable shelves
• Keyed door lock
• Magnetic door gasket for positive seal
• Heavy duty door handle
• Leveling legs
• One probe access port (3/8")
• White textured cabinet and door
• High density urethane foam cabinet and door insulation
• CFC-free refrigerant (R404a), foam insulation and packaging
• Three year parts and labor warranty

Temp Controller

• Microprocessor temperature controller
• Adjustable operating temperature range: 1°C to 10°C
• Touch Screen Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
• Password-protected control panel
• Sample simulated digital temperature display; .1° Resolution
• Temperature display in Fahrenheit
• Active temperature scale bar display
• Resettable 1-point min/max history
• Digital 24-hour temperature chart
• Temperature data logging
• USB port for data transfer and software updates
• Real-time operational display clock
• 4-20mA output
• Electronic troubleshooting guide
• Electronic QR Code to access Owner’s Manual & technical support contact information
• Adjustable alarm volume
• Audible and visual high/low temperature alarms
• Sensor error alarm
• Power failure alarm
• Door ajar alarm
• Low battery alarm
• Operation indicator
• Alarm validation (audible, visual, and remote alarm)
• Alarm mute with ring back
• Remote alarm contacts
