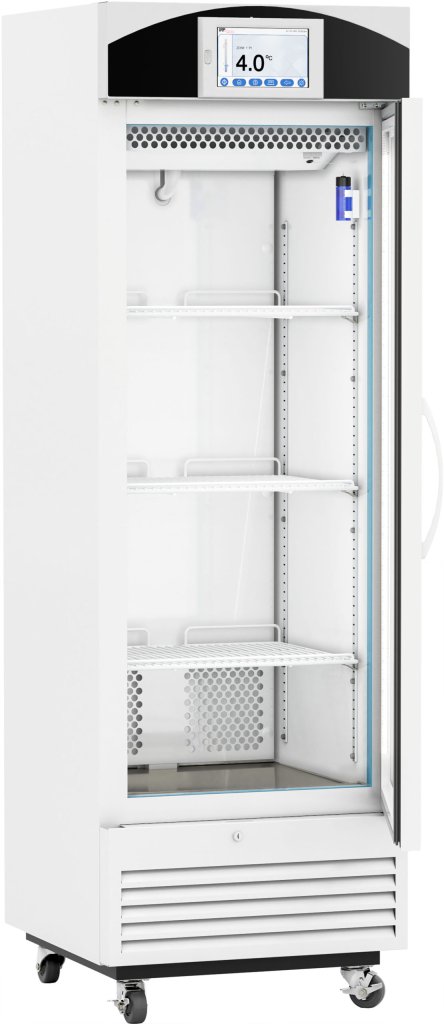

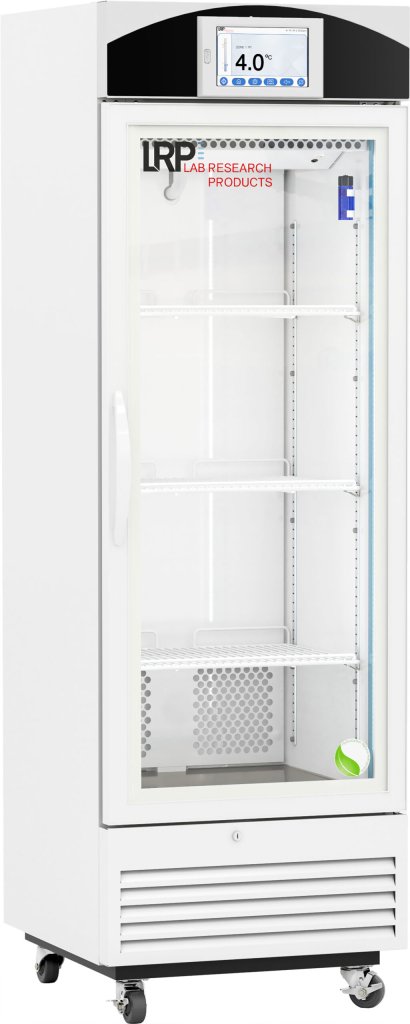

Lab Research Product - LRP-VS-LP-16-TS - 16 Cu. Ft. TempLog Plus Series Glass Door Laboratory Refrigerator

Features
They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive color touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts. Also enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, a self-closing glass door, a keyed access lock, LED interior lighting, and adjustable interior shelving. Also included is a comprehensive 3-year parts and labor warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.
Specifications
Overview
-
Nominal Height:79" (200.66 cm)
-
Nominal Width:25" (63.5 cm)
-
Nominal Length:28.88" (73.36 cm)
-
Internal Height:48.75" (123.83 cm)
-
Internal Width:20.38" (51.77 cm)
-
Internal Length:20.38" (51.77 cm)
-
Capacity:16
General Description and Application
-
Door:One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
-
Shelves:Four (4) adjustable shelves (adjustable in ½" increments)
-
Mounting and Installation:Swivel casters - locking front casters
-
Interior Lighting:LED interior lights are safety shielded and switch controlled
-
Airflow Management:Forced draft air circulation, patented air flow technology
-
External Probe Access:3/4" probe access port on rear wall
-
Insulation:Cabinet is foamed-in-place with EPA compliant high-density urethane foam
-
Exterior Materials:White powder coated steel
-
Access Control:Keyed door lock, compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
-
General Warranty:Three (3) year parts and labor warranty
-
Compressor Warranty:Seven (7) year compressor warranty
-
Product Weight (lbs):245
-
Shipping Weight (lbs):294
-
Rated Amperage:2 Amps
-
Power Plug/Power Cord:NEMA 5-15 plug
-
Facility Electrical Requirement:110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
-
Agency Listing and Certification:ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators
Performance
-
Maximum Temperature Variation (Cabinet Air):± 1°C
-
Stability (Simulator Ballast):± 0.2°C
-
Adjustable Temperature Range:2°C to 15°C
-
Stability (Simulator Bag):Non-applicable
-
Energy Consumption (KWh/day):1.2 KWh/day *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
-
Average Heat Rejection (BTU/hr):330 BTU/h
-
Noise Pressure Level (dBA):40 dBA or less installed
-
Pull Down Time to Nominal Operating Temp:< 30 min (empty)
Refrigeration System
-
Compressor:Hermetic, variable speed
-
Refrigerant:EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
-
Condenser:Tube and grid, high efficiency fan forced air
-
Evaporator:Fin and tube, high efficiency fan forced air
-
Defrost:Cycle Defrost
Downloads
-
LRP-VS-LP-16-TS DataSheetDownload
