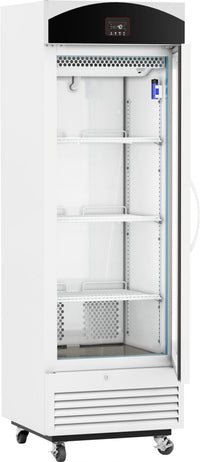

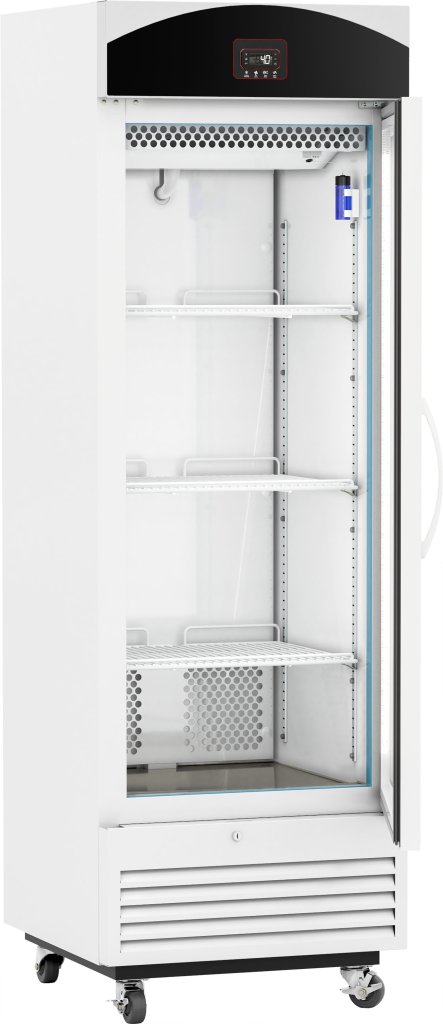

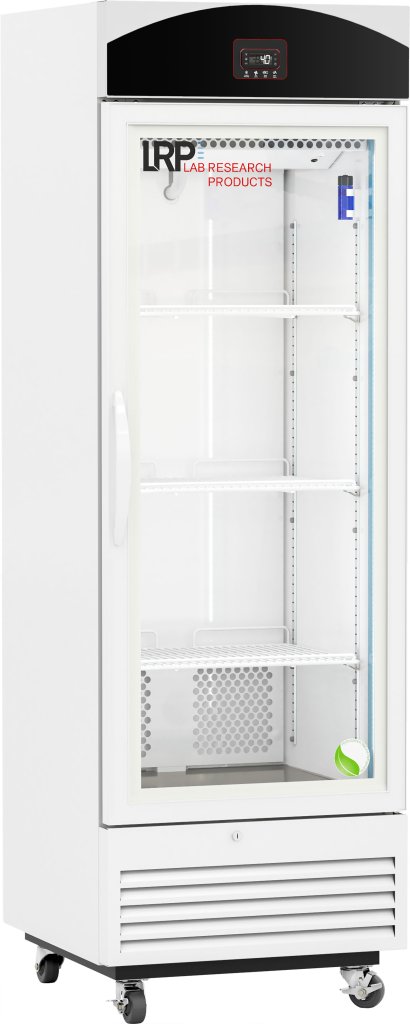

Lab Research Product - LRP-VS-LP-16 - 16 Cu. Ft. Plus Series Glass Door Laboratory Refrigerator

Lab Research Product - LRP-VS-LP-16 - 16 Cu. Ft. Plus Series Glass Door Laboratory Refrigerator
Lab Research Product - LRP-VS-LP-16 - 16 Cu. Ft. Plus Series Glass Door Laboratory Refrigerator

Lab Research Product - LRP-VS-LP-16 - 16 Cu. Ft. Plus Series Glass Door Laboratory Refrigerator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
These TempLog Plus Series refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings.

Features

They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include a keyed door lock and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, a self-closing glass door, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your lab.

Specifications

Overview

  • Nominal Height:
    79" (200.66 cm)
  • Nominal Width:
    25" (63.5 cm)
  • Nominal Length:
    28.88" (73.36 cm)
  • Internal Height:
    48.75" (123.83 cm)
  • Internal Width:
    20.38" (51.77 cm)
  • Internal Length:
    20.38" (51.77 cm)
  • Capacity:
    16

General Description and Application

  • Door:
    One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
  • Shelves:
    Four (4) adjustable shelves (adjustable in ½" increments)
  • Mounting and Installation:
    Swivel casters - locking front casters
  • Interior Lighting:
    LED interior lights are safety shielded and switch controlled
  • Airflow Management:
    Forced draft air circulation, patented air flow technology
  • External Probe Access:
    3/4" probe access port on rear wall
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high-density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed door lock, compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Seven (7) year compressor warranty
  • Product Weight (lbs):
    243
  • Shipping Weight (lbs):
    290
  • Rated Amperage:
    2 Amps
  • Power Plug/Power Cord:
    NEMA 5-15 plug
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators

Performance

  • Maximum Temperature Variation (Cabinet Air):
    ± 1.5°C
  • Stability (Simulator Ballast):
    ± 0.3°C
  • Adjustable Temperature Range:
    2°C to 15°C
  • Stability (Simulator Bag):
    Non-applicable
  • Energy Consumption (KWh/day):
    <0.9 KWh/day *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
  • Average Heat Rejection (BTU/hr):
    <250 BTU/h
  • Noise Pressure Level (dBA):
    40 dBA or less installed
  • Pull Down Time to Nominal Operating Temp:
    < 30 min (empty)

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
  • Condenser:
    Tube and grid, high efficiency fan forced air
  • Evaporator:
    Fin and tube, high efficiency fan forced air
  • Defrost:
    Cycle Defrost
