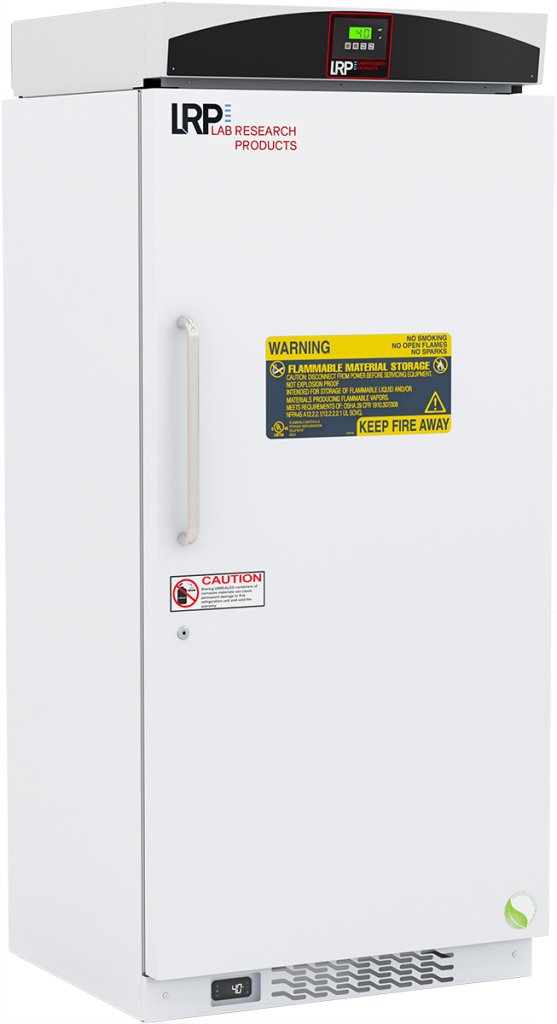

This 30 cu. ft. touchpad flammable storage refrigerator offers a secure solution for storing volatile materials in laboratory and industrial settings.

Features

Utilizing EPA SNAP compliant hydrocarbon refrigerants, this unit minimizes environmental impact while maximizing energy efficiency. This refrigerator provides precise temperature control through microprocessor technology. Enjoy tight temperature uniformity with an operation range of 2°C and 10°C. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. Adjustable interior shelving allows for versatile organization. Designed with safety in mind, it includes a comprehensive alarm system with audible and visual high/low-temperature, sensor error, and power failure alerts, along with remote alarm contacts and a battery backup on alarms for continuous monitoring. With its low energy consumption and enhanced safety features, the LRP-HC-FRP-30 delivers reliable operation for the safe storage of flammable substances.

Specifications

Overview

  • Nominal Height:
    79" (200.66 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.5" (90.17 cm)
  • Internal Height:
    65" (165.1 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

General Description and Application

  • Door:
    One solid swing, right hinged, stainless steel door handle, magnetic door gasket

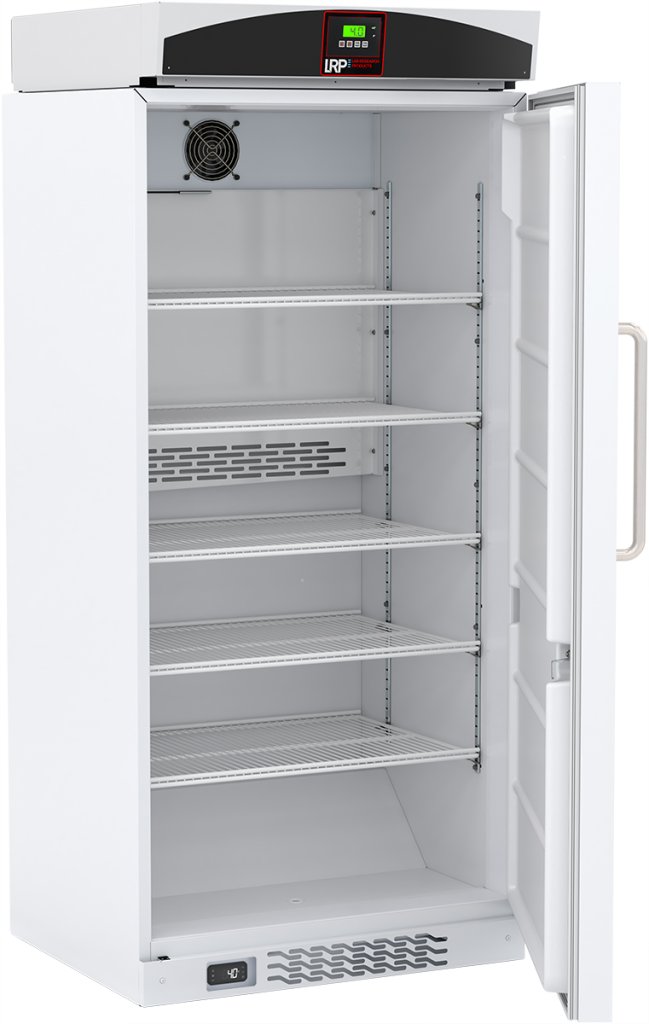

  • Shelves:
    Five adjustable
  • Drawers:
    Non-applicable
  • Mounting and Installation:
    Leveling legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Forced draft circulation
  • External Probe Access:
    3/4" probe access port on rear wall
  • Insulation:
    EPA compliant high density urethane foam
  • Exterior Materials:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor parts warranty
  • Product Weight (lbs):
    350
  • Shipping Weight (lbs):
    380
  • Rated Amperage:
    3.1 Amps
  • Power Plug/Power Cord:
    NEMA 5-15P plug, 6 ft long cord
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    UL listed per UL 60335-1 and UL 60335-2-89 standards, c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45

Performance

  • Uniformity (Cabinet Air):
    +/- 1.6°C
  • Stability (Cabinet Air):
    +/- 1.0°C
  • Maximum Temperature Variation (Cabinet Air):
    3.6°C Total
  • Energy Consumption (kWh/day):
    <1.7 kWh/day
  • Average Heat Rejection (BTU/hr):
    520 BTU/hr
  • Pull Down Time to Nominal Operating Temp:
    <35 min (empty)

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R600a isobutane
  • Condenser:
    Static - exterior walls of cabinet
  • Evaporator:
    Fin and tube design, high efficiency fan, hazardous location rated
  • Defrost:
    Off-Cycle defrost, no heat added
